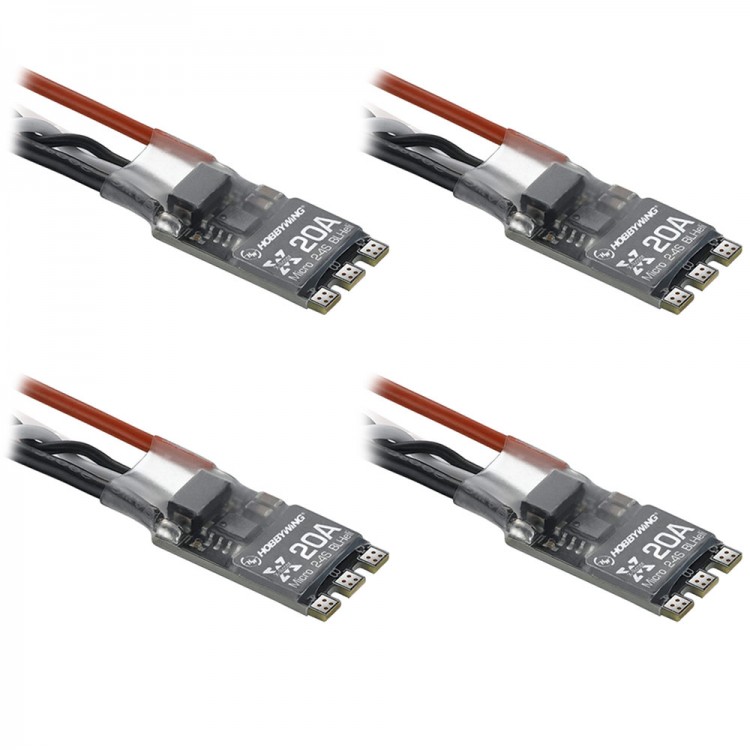

XRotor Micro BLHeli 20A 2-4S ESC Electronic Speed Controller for FPV Quadcopter Drone 4-Pack
Instructions: Click here
Specification:
- Name: XRotor Micro BLHeli 20A ESC Electronic Speed Controller
- Continuous /peak current: 20A/30A
- Battery: 2-4S Lipo
- BEC output: No
- Power cable: Red-20AWG-100mm*1; black--20AWG-100mm*1
- Throttle stroke calibration: Support
- Program: Remote controller,BLHeliSuite
- DEO: Not support
- Oneshot throttle mode: Support
- Angle setting: Yes
- Motor steering setting: Yes
- Size: 24.0*13.9*5.5mm
- Weight: 7g
- For 130-280mm FPV/quadcopter / drone/multicopter
Features:
- F396 main controller processor,running frequency up to 48MHz
- Top quality MOSFET power tube
- 3 in 1 drive IC
- High quality ceramic capacitor
- 3Oz,4 layers circuit board
Package included:
- 4x XRotor Micro BLHeli 20A ESC
