XSB9 Handheld Force Gauge Digital Force Gauge + DYMH-103 Miniature Load Cell Sensor (0-30KG)

XSB9 Handheld Force Gauge Digital Force Gauge + DYMH-103 Miniature Load Cell Sensor (0-30KG)

Features of XSB9 Force Gauge:
* The handheld force gauge is used for proportional measurement and is compatible with a 4-wire strain sensor
* 3.2-inch color LCD display with a resolution of 320 x 240
* Standard RS232 interface, with TC-ASCII or MODBUS/RTU protocol selectable via parameter settings
* With battery and power adapter
* Measurement speed of 15, 120, 240, 480, 960, 1920 times per second (selectable via parameter settings)
* One external switch input for functions such as zeroing, taring, alarm enable, display lock, clearing peak and valley values, and collection function (selectable via parameter settings)

Specifications of XSB9 Force Gauge:
External power adapter:
* Input: AC 90~260V, 50Hz or 60Hz
* Output: DC 12V/2A, positive inside the interface, negative outside
* Note: Do not use a power adapter which is not included in the package

Built-in battery:
* Continuous use time: about 18~36 hours, depending on the usage
* Charging time: about 4~8 hours
* Lifespan: not less than 1000 full charge and discharge cycles

Insulation resistance:
* ≥100MΩ (500V DC MEGA benchmark). Not applicable when powered by built-in battery

Dielectric strength:
* 2000V AC (test conditions: 50/60Hz, 1 minute). Not applicable when powered by built-in battery

Anti-interference:
* IEC61000-4-2 (electrostatic discharge), level III
* IEC61000-4-4 (electrical fast transient pulse group), level III
* IEC61000-4-5 (surge), level III. Not applicable when powered by built-in battery

Protection level:
* IP65 (product front panel protection) (GB/T42-2008)

Operating environment:
* Ambient temperature: -30 to 60℃ (storage temperature: -40 to 65℃)
* Ambient humidity: 35~85 %R•H, no condensation
* Installation location: Indoor, height <2000m

Other parameters:
* Input signal: proportional measurement. Supports 4-wire strain sensor -14 to 14mV
* Input sensitivity: 0.1uV / d
* Zero adjustment range: -10 to 10 mV
* Gain input range: 1 ~ 12 mV
* Conversion method: Sigma-Delta
* Measurement and control speed: 15, 120, 240, 480, 960, 1920 times/second (set by parameters)
* Non-linearity: ±0.01%F•S (measurement speed 15 times/second)
* Gain drift: < 10 ppm/℃ (matching terminal connectors must be used when connecting a sensor, otherwise the temperature drift characteristics will deteriorate)
* Maximum display accuracy: 1/100000
* Contact input: 1 point external switch input, which can be used for zeroing, taring, alarming, display locking, clearing peak and valley values, etc. (can be selected by parameters)
* DI/DO external power supply voltage: PD+ and PD-interval: +9V~+30V
* Sensor power supply: DC 5V±2%, 100mA (MAX.)
* Alarm output: 2-point OC gate output, ≤35mA
* Communication interface: RS232 interface, TC-ASCII and MODBUS/RTU protocol. Response time: 500μS (measured value)
* Intelligent module: TS (Intelligent module)
* Power specification: V0 (without built-in battery); V1 (with built-in battery)

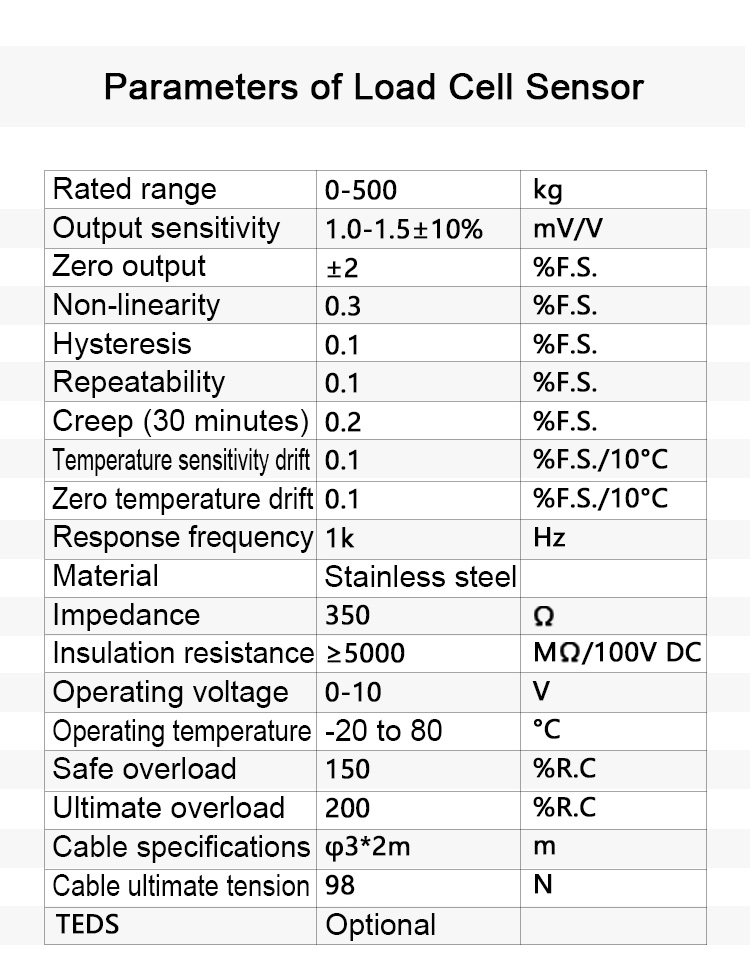

DYMH-103 Load Cell Sensor:
* Miniature tensile and compressive force sensor: It has high precision and stable performance. It can be used in automotive press-fitting, automated assembly, 3C product testing, new energy product assembly, medical testing, robotics, mold assembly, industrial test automation equipment and testing fields.
* Durable, high temperature resistant, and wear resistant: High quality 17-4PH stainless steel has strong mechanical fatigue resistance, good hardenability, and nickel-plated surface for corrosion resistance. Easy installation, deformation resistance, and aging resistance. It is not easy to rust when used for a long time, with longer service life.
* Corrosion and oxidation resistance: High safety performance, strong hardness and high density. It is corrosion-resistant and not easy to rust in ultra-humid and highly corrosive factory environments for a long time.

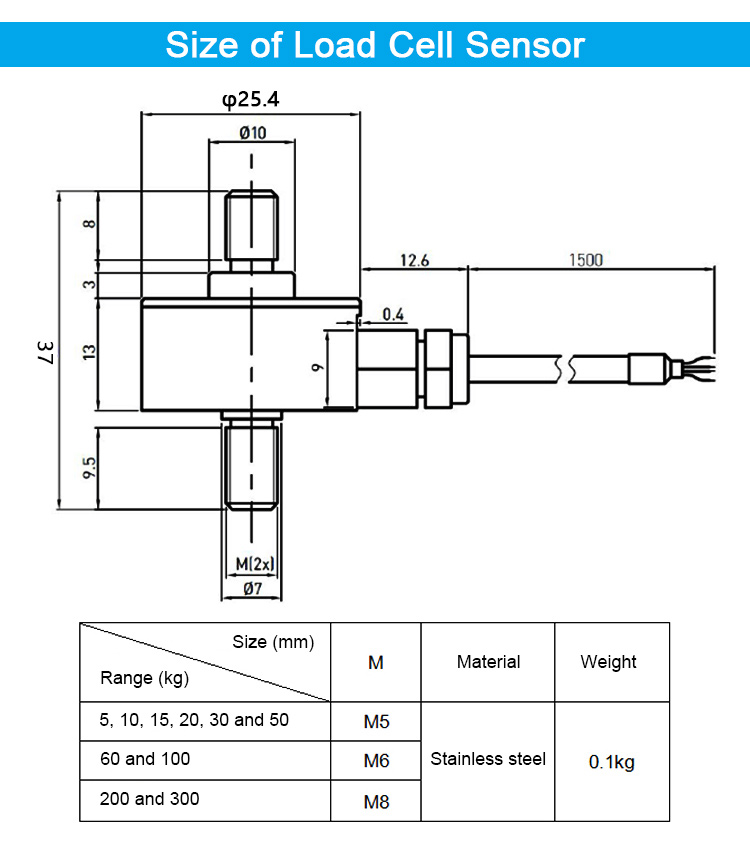

* Small size and low profile structural design greatly improve the sensor's ability to resist eccentric load.
* AVIC high-precision strain gauge: with good heat resistance, small creep, small thermal hysteresis and good long-term stability.
* Stable measurement. Bidirectional measurement of tension and compression: High comprehensive accuracy, long-term corrosion resistance, fatigue resistance, and impact resistance (Note: Installation requires a 1-2mm gap with the sensor body when fixed by upper and lower screws).
* Optional laser welding: If laser welding is used, the sensor's waterproof performance can reach IP67.

Package Included:

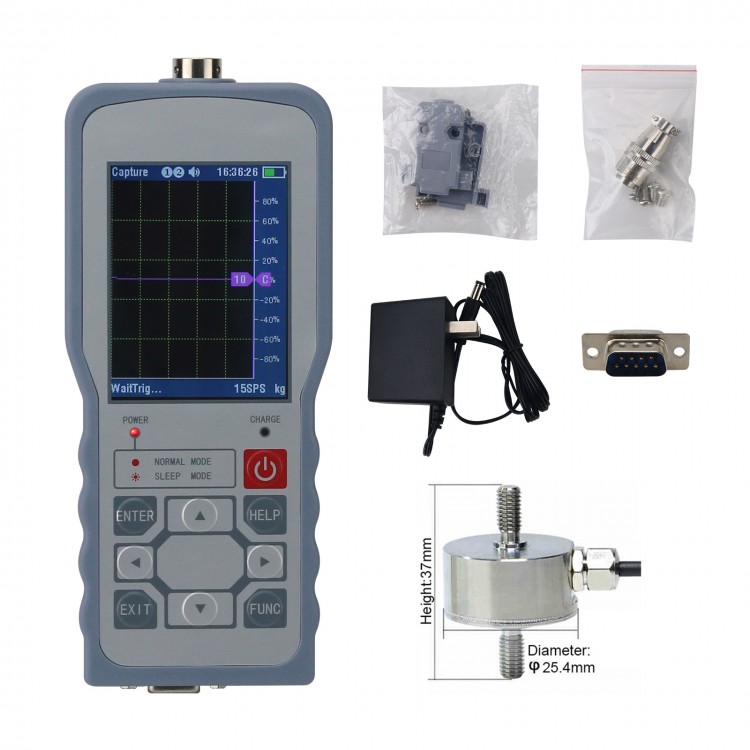

* 1 x Set of Force Gauge with Sensor

Packaging Details:
* Weight: 1.2kg
