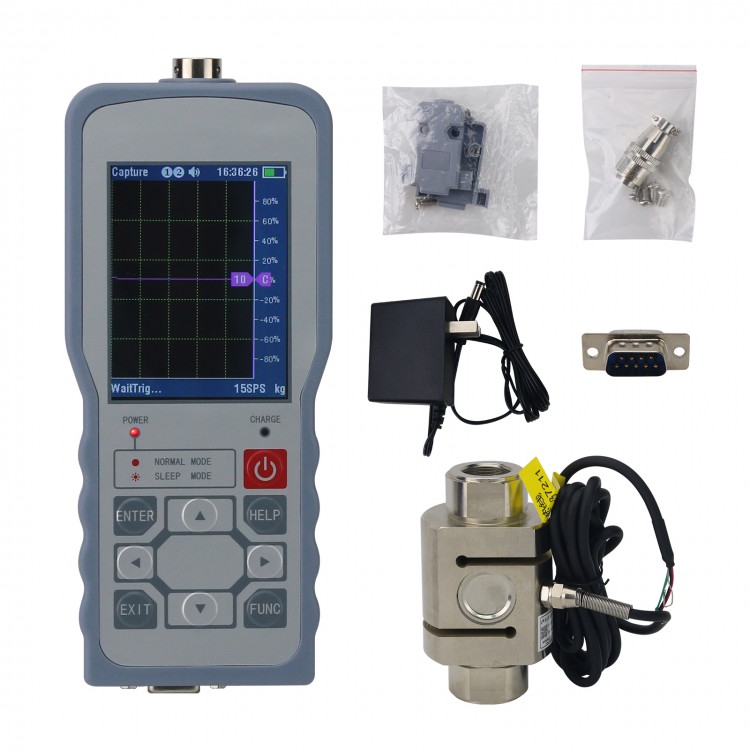

XSB9 Handheld Force Gauge Digital Force Gauge w/ 3.2" LCD + JLBZ S-type Load Cell Sensor (0-2000KG)
XSB9 Force Gauge:
Features:
* The handheld force gauge is used for proportional measurement and is compatible with a 4-wire strain sensor
* 3.2-inch color LCD display with a resolution of 320 x 240
* Standard RS232 interface, with TC-ASCII or MODBUS/RTU protocol selectable via parameter settings
* With battery and power adapter
* Measurement speed of 15, 120, 240, 480, 960, 1920 times per second (selectable via parameter settings)
* One external switch input for functions such as zeroing, taring, alarm enable, display lock, clearing peak and valley values, and collection function (selectable via parameter settings)
Specifications:
External power adapter:
* Input: AC 90~260V, 50Hz or 60Hz
* Output: DC 12V/2A, positive inside the interface, negative outside
* Note: Do not use a power adapter which is not included in the package
Built-in battery:
* Continuous use time: about 18~36 hours, depending on the usage
* Charging time: about 4~8 hours
* Lifespan: not less than 1000 full charge and discharge cycles
Insulation resistance:
* ≥100MΩ (500V DC MEGA benchmark). Not applicable when powered by built-in battery
Dielectric strength:
* 2000V AC (test conditions: 50/60Hz, 1 minute). Not applicable when powered by built-in battery
Anti-interference:
* IEC61000-4-2 (electrostatic discharge), level III
* IEC61000-4-4 (electrical fast transient pulse group), level III
* IEC61000-4-5 (surge), level III. Not applicable when powered by built-in battery
Protection level:
* IP65 (product front panel protection) (GB/T42-2008)
Operating environment:
* Ambient temperature: -30 to 60℃ (storage temperature: -40 to 65℃)
* Ambient humidity: 35~85 %R•H, no condensation
* Installation location: Indoor, height <2000m
Other parameters:
* Input signal: proportional measurement. Supports 4-wire strain sensor -14 to 14mV
* Input sensitivity: 0.1uV / d
* Zero adjustment range: -10 to 10 mV
* Gain input range: 1 ~ 12 mV
* Conversion method: Sigma-Delta
* Measurement and control speed: 15, 120, 240, 480, 960, 1920 times/second (set by parameters)
* Non-linearity: ±0.01%F•S (measurement speed 15 times/second)
* Gain drift: < 10 ppm/℃ (matching terminal connectors must be used when connecting a sensor, otherwise the temperature drift characteristics will deteriorate)
* Maximum display accuracy: 1/100000
* Contact input: 1 point external switch input, which can be used for zeroing, taring, alarming, display locking, clearing peak and valley values, etc. (can be selected by parameters)
* DI/DO external power supply voltage: PD+ and PD-interval: +9V~+30V
* Sensor power supply: DC 5V±2%, 100mA (MAX.)
* Alarm output: 2-point OC gate output, ≤35mA
* Communication interface: RS232 interface, TC-ASCII and MODBUS/RTU protocol. Response time: 500μS (measured value)
* Intelligent module: TS (Intelligent module)
* Power specification: V0 (without built-in battery); V1 (with built-in battery)
Load Cell Sensor:
Features:
* S-type tensile and compressive force sensor
* High precision
* Good stability
Sensor Wiring Definition:
* Black wire: EXC- (power supply negative)
* Green wire: SIG+ (signal positive)
* Red wire: EXC+ (power supply positive)
* White wire: SIG- (signal negative)
Package Included:
* 1 x Set of Force Gauge with Sensor
Packaging Details:
* Weight: 1.5kg
