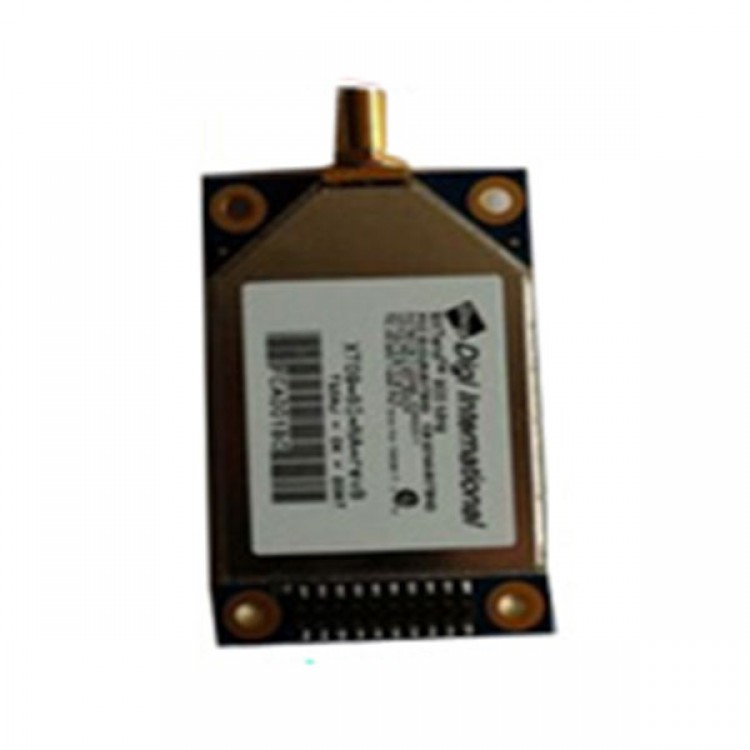

XTend Wireless Data Transmission 64KM Long Distance Wireless Data Transmission XBee APM2.5 Flight Control
Performance
- Power output: 1 mW - 1 Watt (0 - 30 dBm), software selectable
- Indoor/Urban range: Up to 3000 ft (900 m)
- Outdoor/RF line-of-sight range: up to 40 miles (64 km)
- RF data rate: 9.6 or 115.2 Kbps
- Interface data rate: Up to 230.4 Kbps
- Receiver sensitivity: -110 dBm (@ 9600 bps)
Networking
- Spread Spectrum type: FHSS (Frequency Hopping Spread Spectrum)
- Networking topology: DigiMesh®, peer-to-peer, point-to-point, point-to-multipoint, and repeater
- Error handling: Retries & acknowledgements, multiple transmissions
- Filtration options: VID (Vendor ID Number), channels and addressing
- Channel capacity: 10 hop sequences share 50 frequencies
- Addressing: 65,000 network addresses available for each channel
- Encryption: 256-bit AES
Power
- Supply voltage: 2.8 - 5.5 VDC regulated
- Transmit current: 730 mA (@ 5V, 1W TX Power Output)
- Receive current: 80 mA (@ 5V, 1W TX Power Output)
- Shutdown power current: 5 μA typical
General
- Frequency band: 902 - 928 MHz
- Serial data interface: 3V - 5V CMOS UART - No configuration required
Physical Properties
- Size: 1.44 in x 2.38 in x 0.20 in (3.65 cm x 6.05 cm x 0.51 cm)
- Weight: 0.64 oz (18 g)
- Antenna options: RPSMA or MMCX connections
- Operating temperature: -40° C to 85° C (industrial)
Certifications
- United States (FCC): OUR-9XTEND
- Canada (IC): 4214A-9XTEND
- Australia: Approved (XTH9)
- Class I Division 2: Approved
