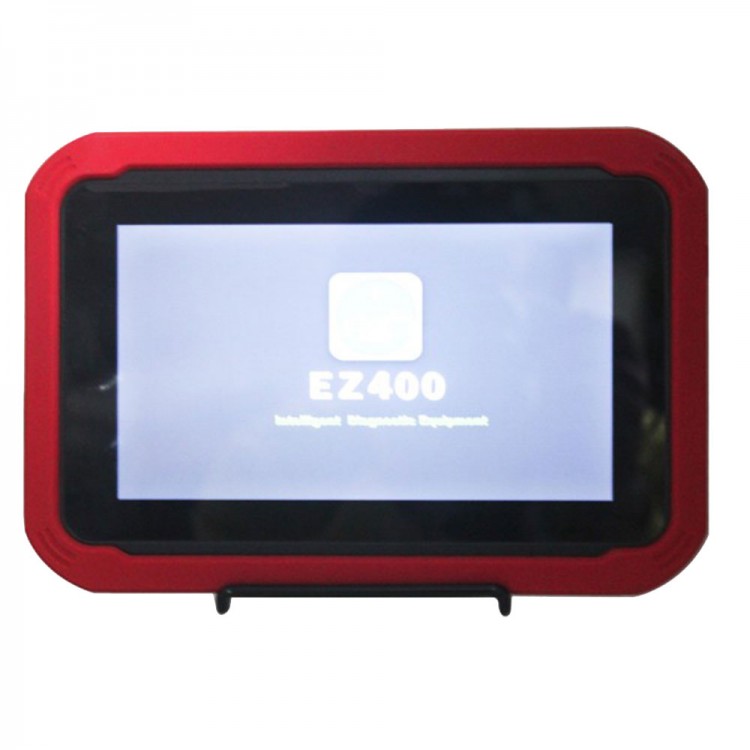

XTOOL EZ400 Diagnosis System with WIFI Support Android System and Online Update Same As Xtool PS90

XTOOL EZ400 Diagnosis System with WIFI Support Android System and Online Update Same As Xtool PS90

Top 6 Reasons to Choose EZ400:
1. Extensive vehicle coverage for most US, Asian and European vehicle makes
2. Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis……
3. Support Special function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment…..
4. Support WIFI connection, PAD support Android System
5. Support online update.
6. Same Function as Xtool PS90,but can not read EEPROM.

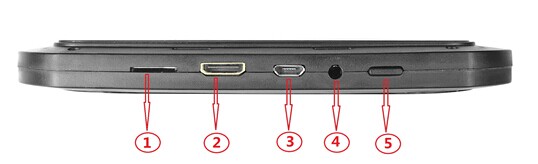

1. SD Card Port: up to 32GB extension SD card
2. HDMI Port: Compatible with HDMI
3. Micro USB: Battery charge or data synchronization with PC.
4. Audi Port: For headphone
5. Power Button: Power on or off

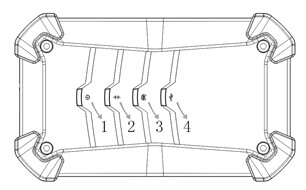

Introduction of EZ400 VCI Box:
1. Power Indicator: it turns green when power is on.
2. Bluetooth Indicator: it turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully.
3. Vehicle Indicator: When VCI box is connected with vehicle successfully, it turns green.
4. USB Indicator: When EZ400 tablet and VCI box are connected via USB cable, it turns green.

EZ400 Features:
- Easy registration with EZ400 connected to WIFI
- Wireless diagnosis via Bluetooth
- One-click software update via WIFI
- Remote access
- Diagnosis reports in PDF file
- Record and playback live data
- 7 inch multi-touch screen
- On-board battery
- Extensive vehicle coverage for most US, Asian and European vehicle makes

Extensive Vehicle Coverage for Most US, Asian and European Vehicle:
- American: GM, Chrysler, Ford, Chevrolet, Hummer, Cadillac, Saturn
- Europe: Volvo, Skoda, Land rover, Jaguar, Ford, Sprinter, Seat, Renault, Peugeot, Opel, Vauxhall, Fiat, Citroen, BMW, BENZ, AUDI, VW, Porsche, Lancia, MayBach, Rolls-Royce, Mini, Smart, Transporter, Lamborghini, Gugatti, Abarth, VW_CV
- Asia: Acura, Honda, Infiniti, Isuzu, Lexus, Mitsubishi, Nissan, Suzuki, Kia, Toyota, Hyundai, Mazda, Daihatsu, Daewoo, Scion, Holden, AUFord ,etc.
- Chinese Vehicle: Geely, Chery, Greatwall, Jiao, Lifan, BYD, Brilliance  ,etc.

Function:
- Full System Diagnosis: Engine, ABS, Airbag, Transmission, Immobilizer, Body (ECM), Chassis ,etc.
- Basic Function: read fault codes, clear fault codes, live data, actuation
- Accurate live data in both Wave and Dashboard form
- Special Function: ABS bleeding, service light reset, DPF regeneration, steering angle calibration, battery reset, throttle body adaptation, Service light reset, Throttle Sensor Adjustment

Specification:
- Operating System: Android 4.4.4
- Memory: 1GB RAM,16GB Flash
- CPU Quad Core, 1.3 GHz
- Display 7 Inch IPS 5-Point Multi-touch Screen with 1024×600P Resolution
- Sensors: Gravity Sensor, Light Sensor
- Input/Output: Microphone, Dual Speakers, 3.5 mm headset jack, Mini HDMI Port, 2.0USB Port, TF Card Port
- Battery: 2400mAh, 3.7V
- Power Voltage: 5V
- Power Consumption: 8W
- Operating Temperature: -20 to 50℃(-4 to 126℉).
- Humidity: <90%
- Dimension: (L*W*H): 208*140*15.5mm

Package Including:
- OBD II-16
- HONDA-3
- BMW-20
- TOYOTA-17
- MAZDA-17R
- KIA-20
- HYUNDAI/KIA-10
- NISSAN-14
- GM/DAEWOO-12
- SELFTEST
- UNIVERSAL-3
- SUZUKI-3
- FIAT-3
- CITROEN-2
- AUDI-4
- MITSUBISHI-12+16
- BENZ-38
- BENZ-14
- Main Cable
- Battery Cable
- Cigar Lighter Cable
- EZ400 Tablet
- VCI Box
- Charger for Tablet
- US Power Adapter
- EU Power Adapter
- Micro USB Cable
- Case
- Stand for EZ400
- Certificate of Quality
- Manual
