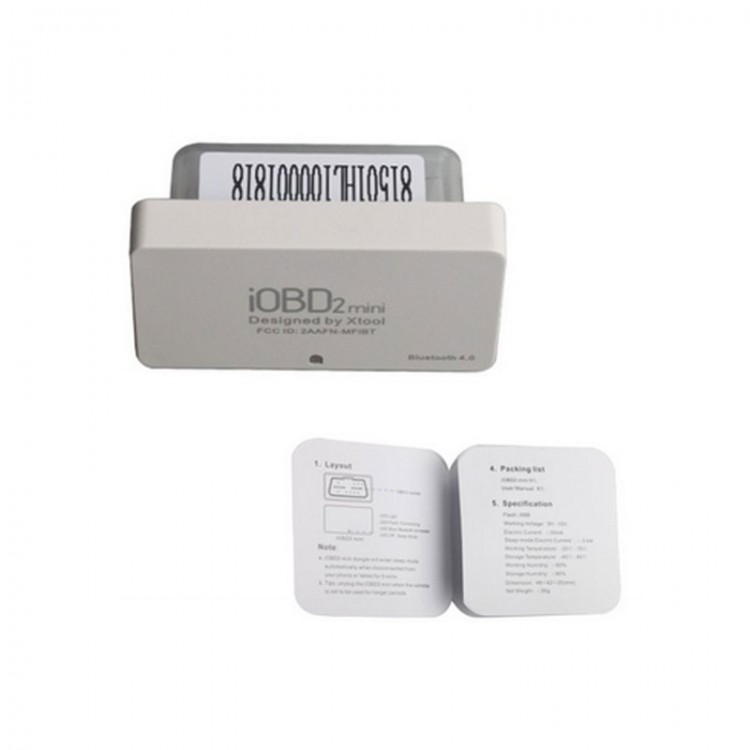

XTOOL iOBD2 Mini OBDII OBD2 EOBD Bluetooth 4.0 Scanner For Apple iOS & Android
Description:
- The iOBD2 Mini, based on Apple iOS and Android operating systems, is a new practical car diagnostic tool developed by Shenzhen XTOOLTECH Co., Ltd.
- It communicates with the Apple iPhone/iPad and Android smartphone via Bluetooth. It is OBDII/EOBD compliant and it reads the recorded data on the car from the iOBD2 App.
- When the car is running, it reads the real-time car engine data, such as engine speed, ignition time, fuel trim, water temperature, fuel consumption, etc. It can also provide professional solutions and advice to the detected faults in the form of tabular or graphical display.
- It can automatically record every process of the moving vehicle and make intelligent analysis on the data, such as mileage, average fuel consumption, driving time and driving behavior data, which can be transferred to and viewed on the phone software via Bluetooth.
Functions:
- Diagnose: read DTCs, clear DTCs, read live data, readiness test, O2 Sensor test,Vehicle information, etc;
- My Dashboard: idle mode, sport mode, cruise mode, custom mode, help users to master various data of dashboard in detail.
- Performance Test:
[Accelerate / Decelerate Test]: Test acceleration/deceleration process time and distance;
[0-100 m acceleration test]: Test spending time from 0 to 100 meters.
- Performance Curve:
Displays directly the vehicle's speed and the revolutions by curve;
Displays the revolutions, torque and power by curve.
- Setting:
It allows users to set language, connections, units, mileage, the alarm for over speed, and set parameters of vehicle weight, fuel consumption coefficient and vehicle speed
coefficient according to their needs and reading habits.
- History:
It not only can read automatically recorded car trip data, but save and review the recorded diagnostic data of the tested cars, such as live data, freeze frame data and my dashboard data.
- Travel Records:
It can automatically record every driving process of cars, the recording duration up to six months or more.
- Vehicle data include: travel mileage, travel time, average fuel consumption, fuel consumption, maximum speed, etc; driving behavior data include: sharp turns, sharp acceleration, sharp deceleration, overspeed, etc;
Specifications:
- Operating voltage: 9 ~ 12 V
- Working current: <60 mA
- Sleep current: <5 mA
- Working temperature: -25 â ~ 75 â
- Storage temperature: -40 â ~ 85 â
- Working humidity: <60%
- Storage humidity: <80%
- Dimensions: 49 * 26 * 22.4 (mm)
- Weight: <50 g
- Flash Memory: 2MB
- Bluetooth Version: 4.0
Note: Compatible with Apple iPhone 4S 5 5S 5C 6 6S 6 PLUS 6S PLUS+ and Android devices. WILL NOT work on iPhone 4 because it does not support Bluetooth V4.0
Features:
- Ultra small, easy operation, high stability;
- Covers more than 95% of the models in the market;
- Low power consumption, good heat dissipation;
- Extracts rich data of car models;
- The modular structure can be customized according to the needs;
Product comparison:
iOBD2 |
iOBD2 Mini |
iOBD2 PRO |
|
OBD2/EOBD Supported Protocol |
Y |
Y |
Y |
Read DTCs |
Y |
Y |
Y |
Clear DTCs |
Y |
Y |
Y |
Read Live Data |
Y |
Y |
Y |
Read Freeze Frame |
Y |
Y |
Y |
Readiness Test |
Y |
Y |
Y |
My Dashboard |
Y |
Y |
Y |
Performance Test |
Y |
Y |
Y |
Performance Curve |
Y |
Y |
Y |
Travel Records |
N |
Y |
Y |
FM Output |
N |
N |
Y |
Bluetooth |
BT 2.0 |
BT 4.0 |
BT 4.0 |
Dimensions |
48*42*25(mm) |
48*26*22(mm) |
48*26*22(mm) |
Weight |
<100g |
<50g |
<100g
|
Package included:
- 1x Xtool scanner
