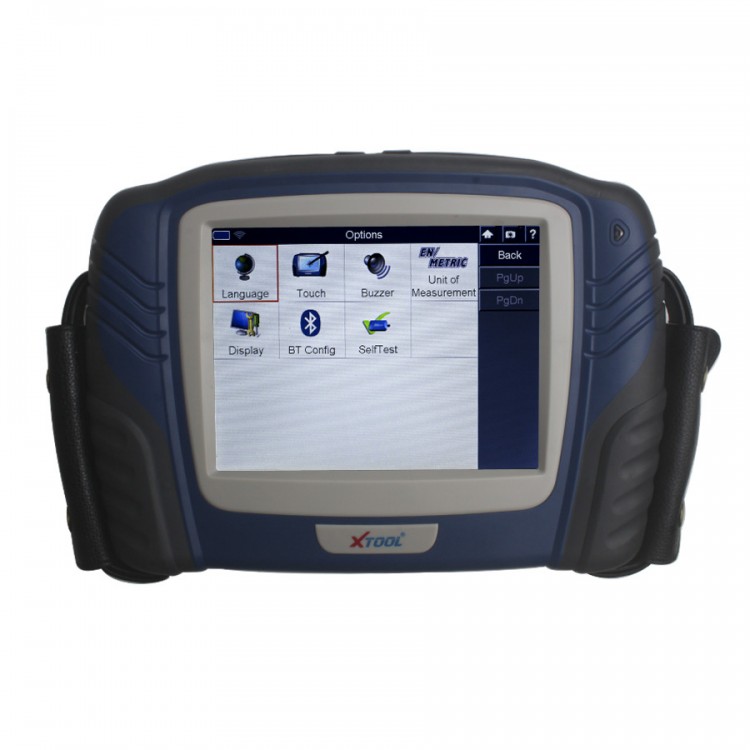

Xtool PS2 Professional Automobile Heavy Duty Truck Diagnostic Tool Update Online with Touch Screen

Xtool PS2 Professional Automobile Heavy Duty Truck Diagnostic Tool Update Online with Touch Screen

Top 6 Reasons to Get Xtool PS2:
1. Update: Online (Website)
2. Original from Xtool
3. Language: English Only
4. No Need To Connect With PC
6.Support Car year before 2010,and few part of car year after 2010

Xtool PS2 Description:
In the compatible aspect of data agreement, PS2 comprehensively supports all protocols and all modes for the OBD II. The built-in CAN BUS chip supports all CAN BUS agreements. The forward-looking design of PS2 meets the need not only for the present but also for the future automobile main-line examination. The drivers of diagnostic module can be updated through the internet. The formidable compatibility reduces the equipped adapter.
We also provides wireless communication version of PS2. The servicemen can sits in the office to carry on the functional test. The VAG connector could meet the various requests from customers. All test procedures places on a high-capacity SD card which facilitates the updating procedure. The mulit-language edition will satisfy the demands from our customer around the world.

As a result of massive field test, PS2 becomes a matured and integrated product. Excellence is our motto. We make every effort to develop and to innovate our product which enables PS2 to become an reliable automobile diagnostic equipment. The speedy test, the accuracy and the user-friendly design of SP2 help us to enjoy the support of all customers.

Xtool PS2 Function:
The Upward-Side Connection of The Main Frame:
- Power Switch: Uses for starting and closing of main engine
- USB Connection: Uses this connection to carry on the data synchronization with PC.
- VGA Connection: Uses this connection to link the external monitor (800×600 pixels)
- Main Test Connection: Uses the testing line to carry on the vehicles diagnosis.
- Power Connection: Uses for the exterior power supply
- Touching Pen: Uses in clicking on the touching-screen.

The Lower-Side Connection of The Main Frame:
- Serial port:uses in the main body debugging.
- SD card slot:uses for SD card
- Paper outlet: use for mini printer

Functions of VCI Diagnostic Box:
- The box is bridging the PS2 mainframe and the automobile diagnostic base. It is called lower position machine. This diagnostic box has two connections, the DB15 connection and the OBD II connection. The main testing line connects the PS2 mainframe with the DB15 adapter. The OBDII connection could link with the testing adapter (PS2 with OBDII diagnostic base could directly link with automobile connection base)
- Because the bluetooth communication module is installed in the VCI diagnosis box, the PS2 mainframe could proceed the diagnosis without the main testing line. - The “on-line diagnosis” should be changed to the “wireless diagnosis” mode on the menu. Serial port: Uses in the main body debugging.
- SD card slot: uses for SD card Power switch: Uses for starting and closing of main engine
- USB connection:Uses this connection to carry on the data synchronization with PC.
- VGA connection: Uses this connection to link the external monitor (800×600 pixels)
- Main test connection:Uses the testing line to carry on the vehicles diagnosis.
- Power connection:Uses for the exterior power supply
- Touching pen:Uses in clicking on the touching-screen.

PS2 Technical Parameters:
- Operating system:WINCE 5.0 operating platforms
- CPU: SAMSUNG 32 bits processors, basic frequency is 400MHZ random memory: SDRAM 64M
- Programming memory:FLASH 64M
- Exterior memory:supports SD card slot-in and slot-out
- Mainframe power supply:DC12V/24V
- Mainframe power:25W
- Printer: Mini high-speed thermal sensitive printer
- Screen: 8 inches real-color touch-screens, 800×600 with LED back-light
- Machine composition: mainframe, testing adapter, group of lines, manual and outside box
- Temperature: -20-50°C
- Relative humidity: <90%
- Mainframe battery: rechargeable battery 3500m/Ah
- Wireless communication: blue-teeth
