XWGP-ETS Wireless Manual Pulse Generator 6-Axis CNC MPG Wireless Handwheel Real Time Display for Siemens
Description:
- This product is a manual pulse generator used in conjunction with CNC machine tools, and has been widely used in fields such as CNC machine tools, CNC lathes, machining centers, CNC engraving and milling machines. This product adopts wireless transmission technology, eliminating the traditional spring wire connection, reducing equipment failures caused by cables, eliminating cable dragging, oil sticking and other pollution, and making operation more convenient. This product set includes a receiver and wireless electronic handwheel. The receiver is connected to the CNC equipment through a network cable, and the electronic handwheel (hand pulse generator) communicates with the receiver through wireless transmission technology. The operator holds a handwheel and can move freely without being bound by the spring wire connection. For large-scale applications such as gantry milling, CNC lathes, walking machine tools, and cutting, it brings great convenience and improves work efficiency.
Supported System:
- Supports Siemens S7 protocol, supports various Siemens PLCs such as S7-200/300/1200, and supports Siemens virtual PLCs. Currently, it has been adapted to Siemens 808d/828d/840dsl, etc.
Features:
- Adopting the 433MHz wireless communication frequency band, with a wireless operating distance of 40 meters.
- Adopting automatic frequency hopping function and using 32 sets of wireless handwheels without affecting each other.
- Supports emergency stop button and 6 button switch outputs, and can also be controlled for reading and writing through Ethernet PLC.
- Supports 6-speed axis selection, 3-speed magnification selection, and can also be controlled through Ethernet PLC for reading and writing.

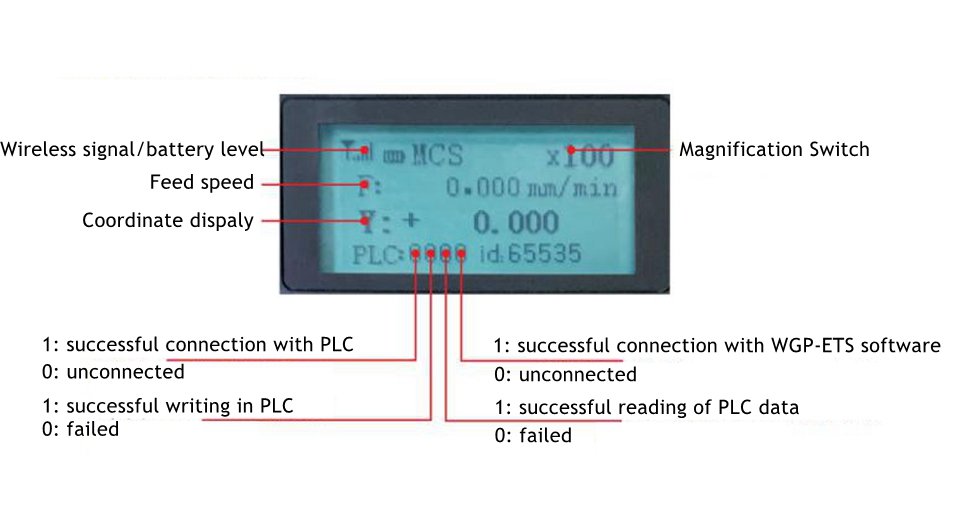

- Support PL through Ethernet cable C reads and displays the Siemens system workpiece/mechanical coordinates, feed rate, and connection status in real-time.
- Supports multiple types of pulse signals such as 5V differential pulse signals and 24V pulse signals.
- Low power design, 2 AA batteries (not included) can be used for more than 1 month.

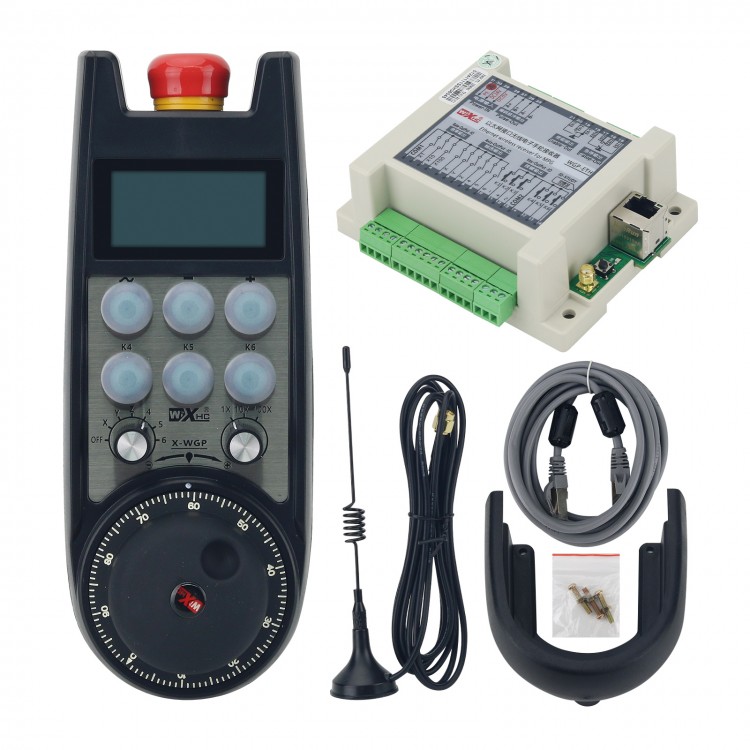

Package Included:
- 1 x MPG
- 1 x Receiver
Note:
- Battery is not included.
