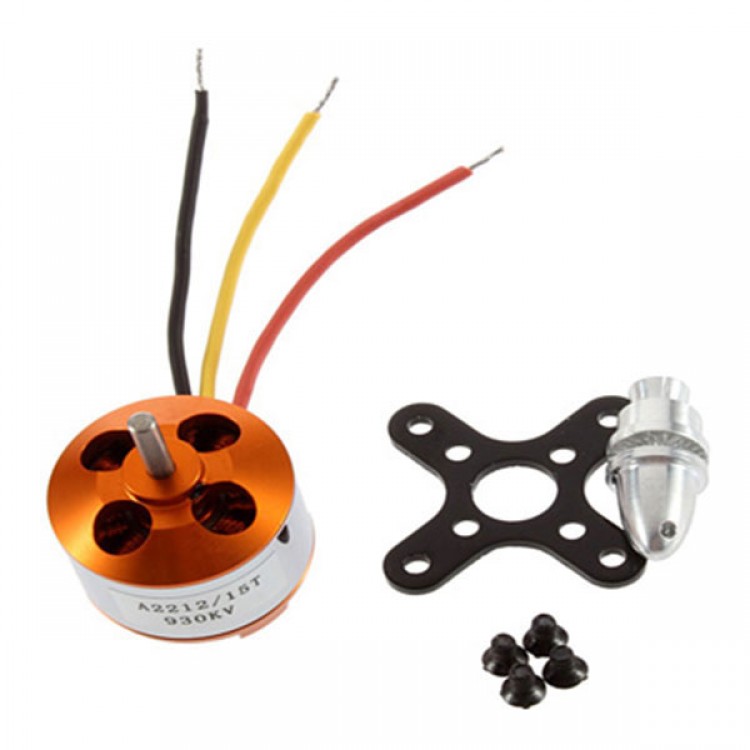

XXD A2212 KV1000 Brushless Outrunner Motor 15T for RC Aircraft KK Quadcopter UFO
Feature:
- Name: Brushless Motor A2212/13 KV1000.
- No load Current: 10 V : 0.5 A.
- Maximum current: 12A/60s.
- Apply to the ESC: 30A.
- Apply to the Lipo: 2 - 3S.
- Apply to the NiCD / NiMH: 6 - 9S.
- Apply to the Propeller: 8x4.5" 9x4.5" 10x4.5" 10x4.7".
- Apply to the three Propeller: 7x4.5" 8x4.5" 9x4.5".
- Shaft diameter: 3.175mm.
- Weight: 2.20oz
Specs:
- KV: 1000
- Max Efficiency: 80%
- Max Efficiency Current: 4-10A (>75%)
- Current Capacity: 12A/60s
- No Load Current @ 10V: 0.5A
- No. Of Cells: 2-3 Li-Poly
- Motor Dimensions: Φ27.5 x 30mm
- Shaft Diameter: Φ3.17mm
- Weight: 47g/set
Packet content:
- 1 XA2212 Brushless Motor (pls choose the style)
- 1 X Accessories Package
- 1X Packing box.
