XY-MC10 20V 10A DC Motor Driver Module with Forward and Reverse PWM Speed Regulation
Features:

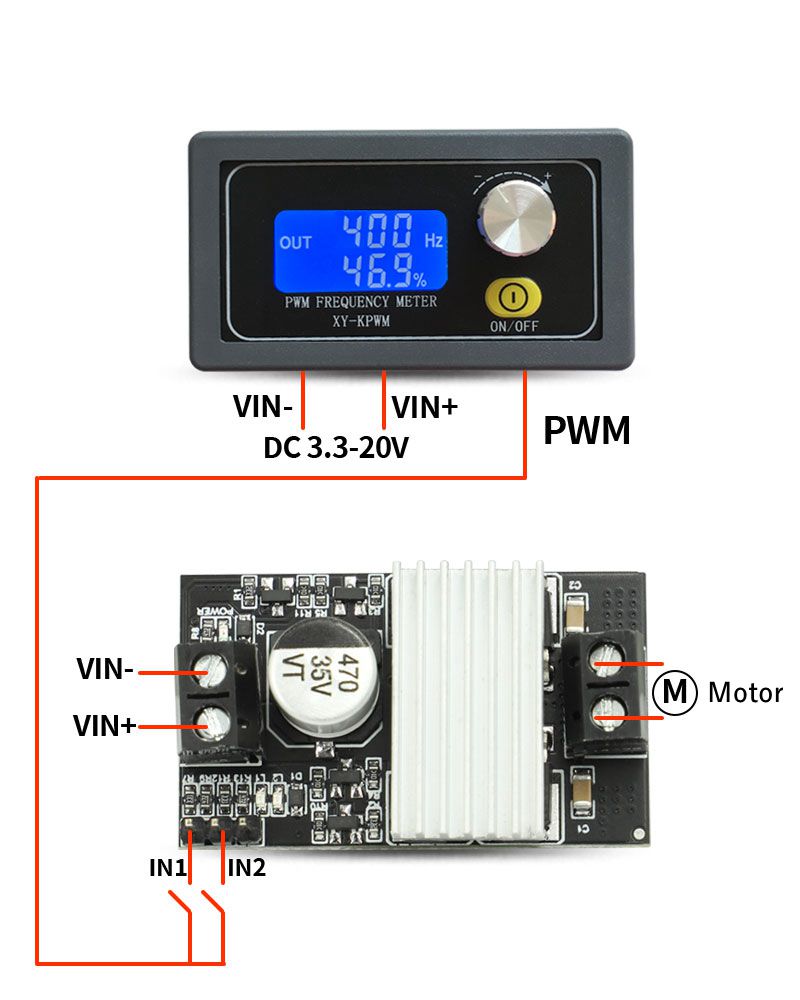

- PWM control is available
- It can carry a maximum current of 10A with a peak-to-peak value of 15A.
- Wide power supply control signal: 3V-20V.
Parameters:

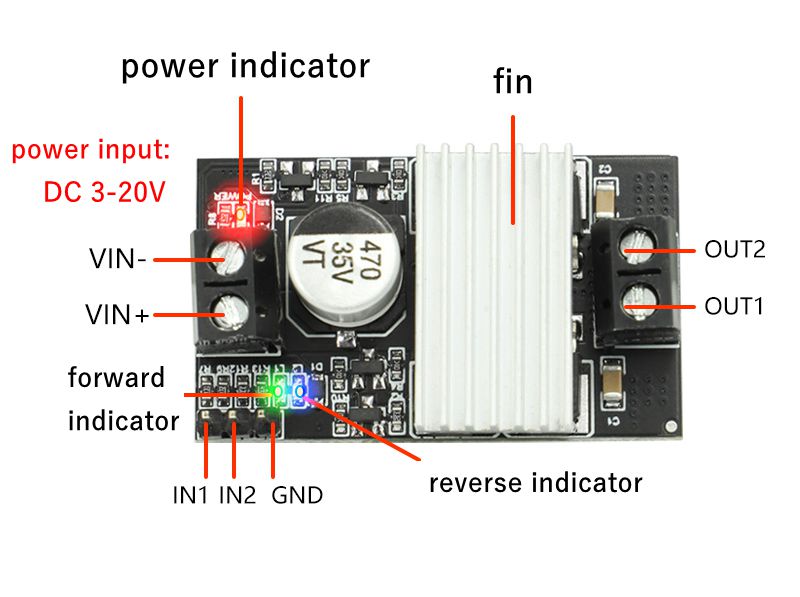

- The module supply voltage: 3V-20V
- Signal input voltage: 3V-20V
- Support duty cycle range: 0-100%.
- PWM frequency range: 400-2K
- Maximum current of peak-to-peak value: 15A. It is recommended to add auxiliary cooling for current above 8A, and the maximum working current is 10A.

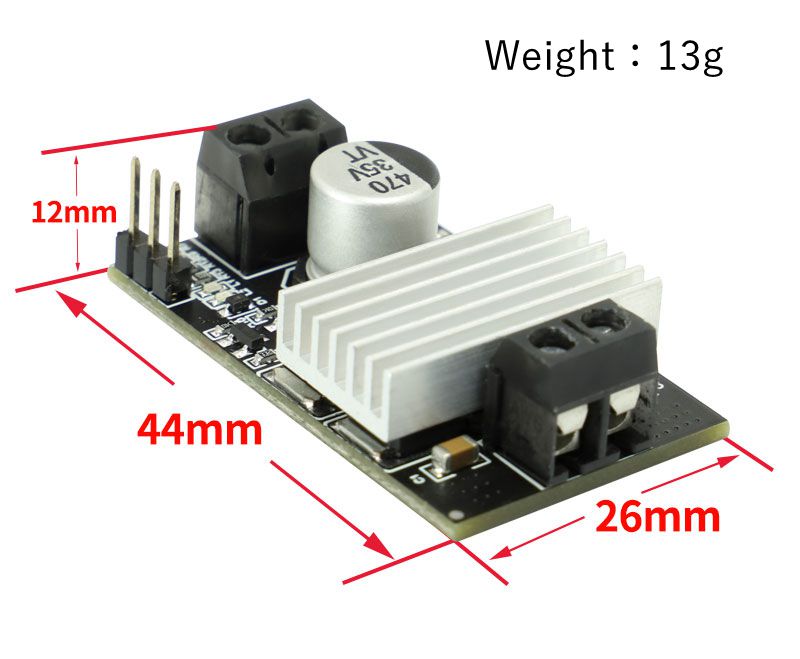

- Dimension: 44mm x 26mm x 12mm
- Weight: 13g
Package Including:
- 1 x DC motor driver module
Note:
- The driver power supply must not be connected reversely. It is recommended to connect 15A fuse in series at the power interface. If the voltage is connected reversely, the drive module may be burnt when powered on.
- It is recommended to use PWM from 400HZ to 2KHZ.

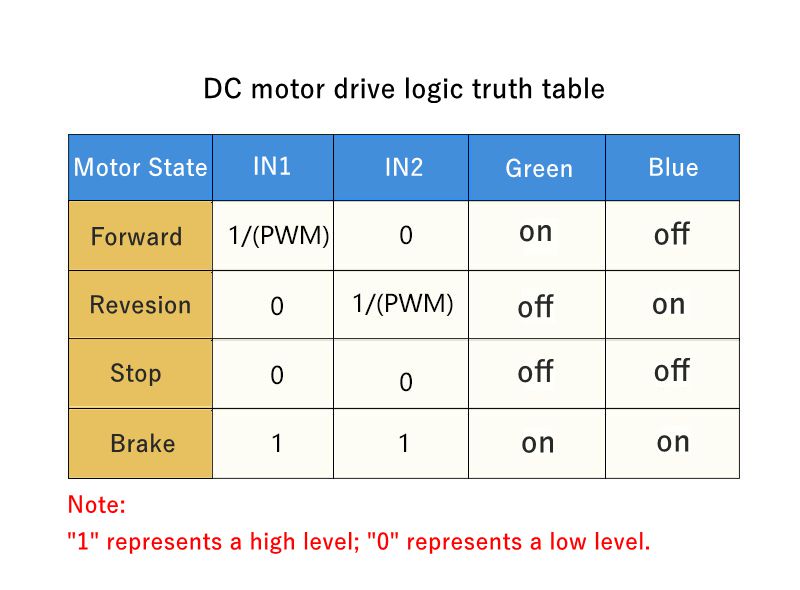

- When reversing the motor, it is necessary to stop or brake the motor first, and then reverse it (to avoid burning current due to large instantaneous current). The motor brake or stop time should be greater than 0.5s, otherwise the module may be burned.
