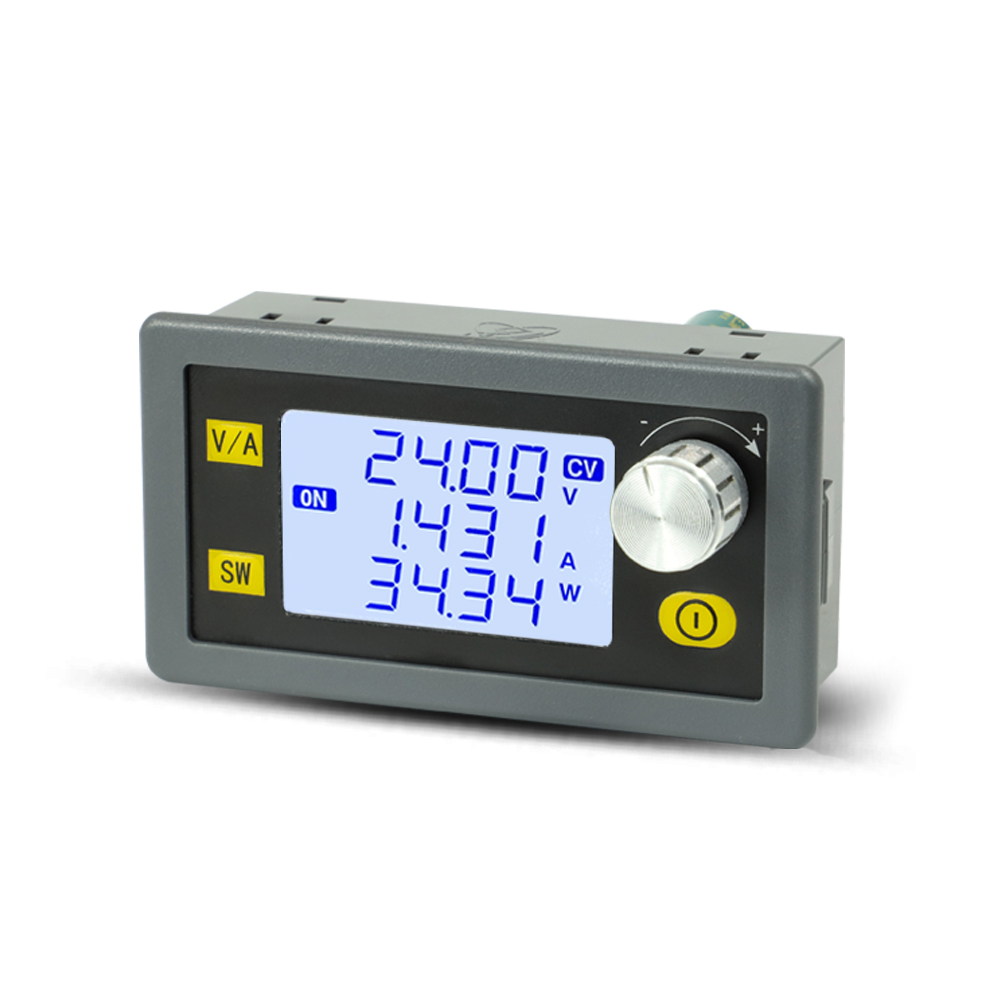

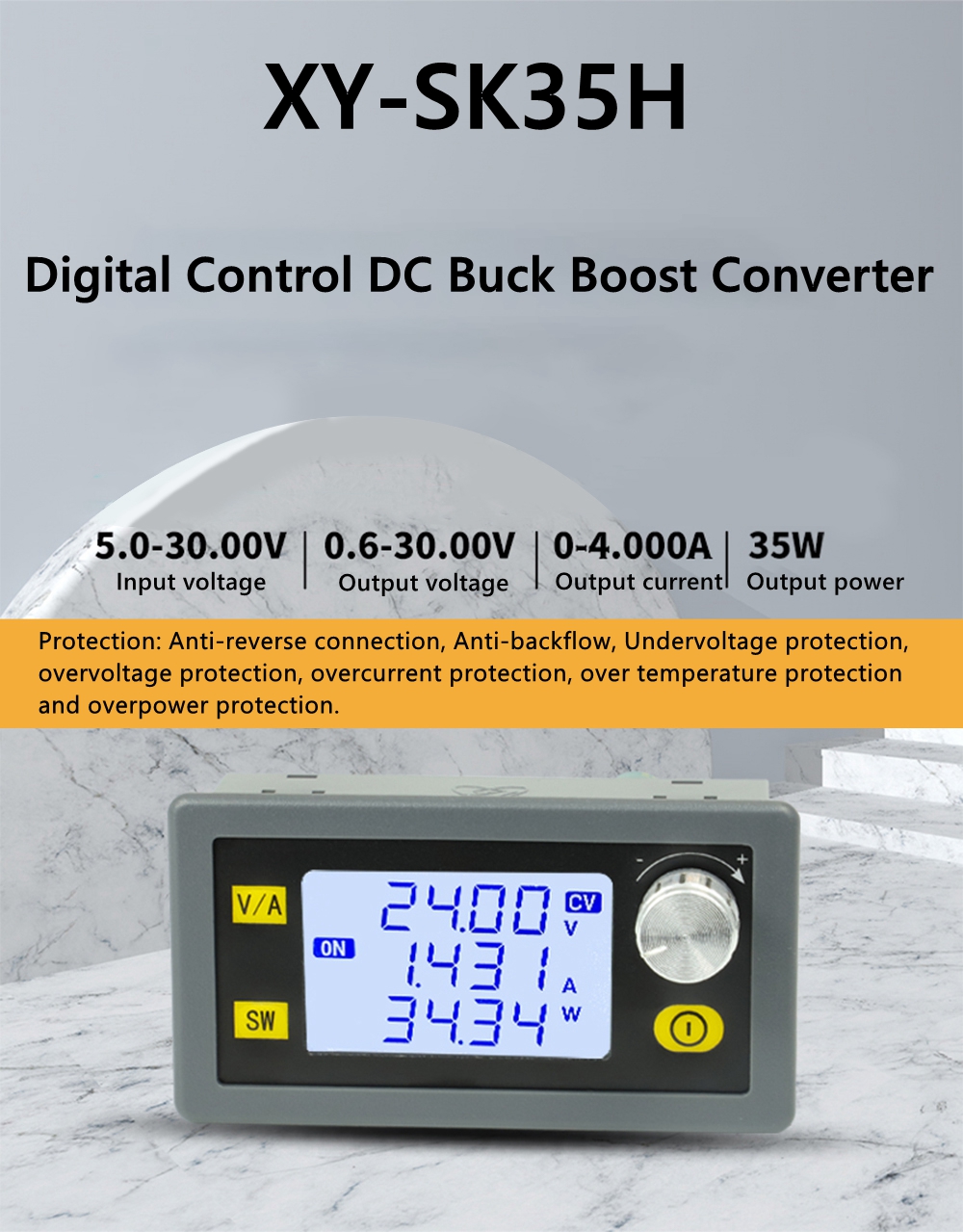

XY-SK35H Digital Control DC Buck Boost Converter Constant Voltage and Constant Current Solar Charging Module

XY-SK35H Digital Control DC Buck Boost Converter Constant Voltage and Constant Current Solar Charging Module

Features:
- Solar charging
- Computer power supply modification
- DIY CNC desktop small power supply

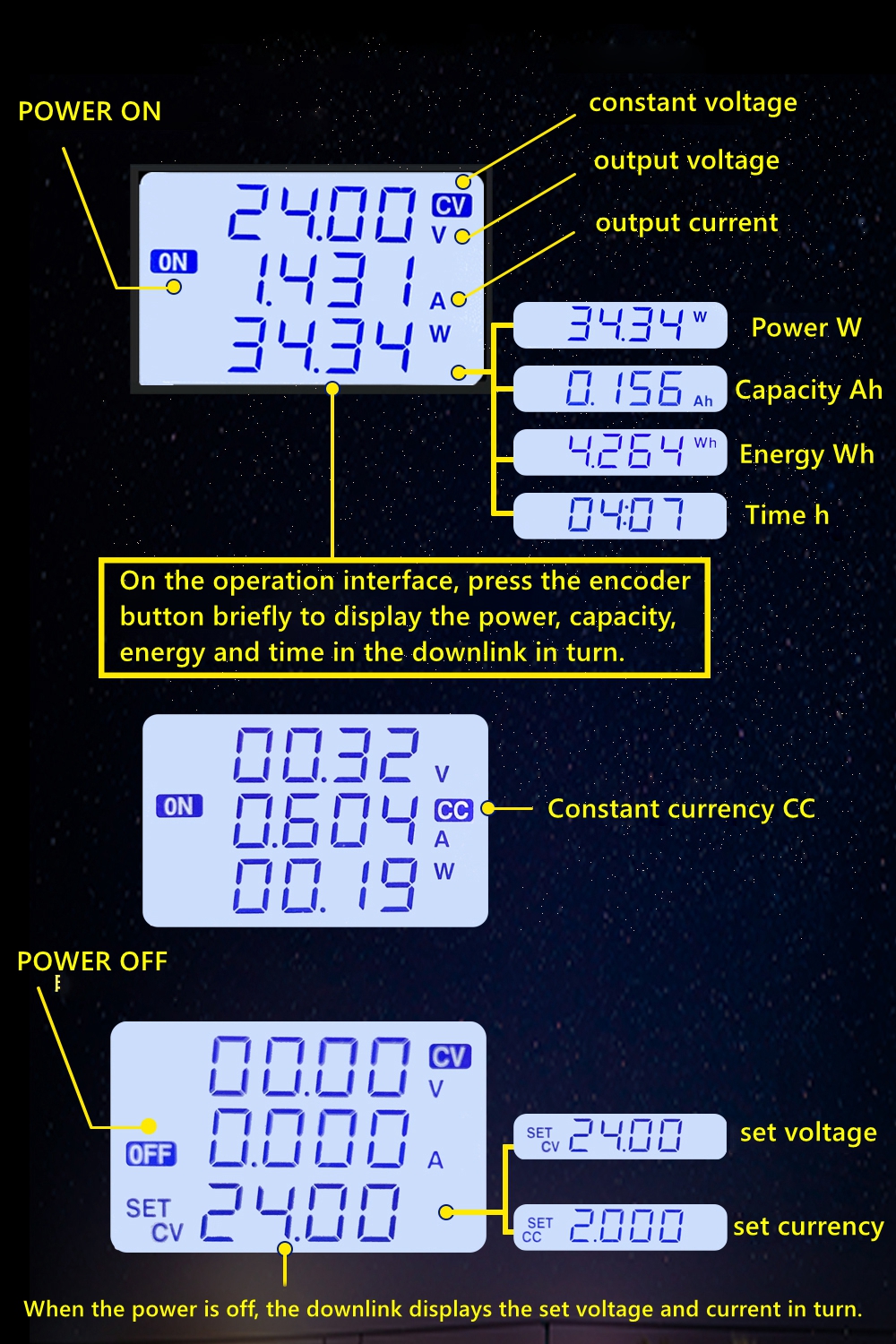

- Capacity/Energy/Running time statistics
- Setting the maximum capacity/Energy/running time

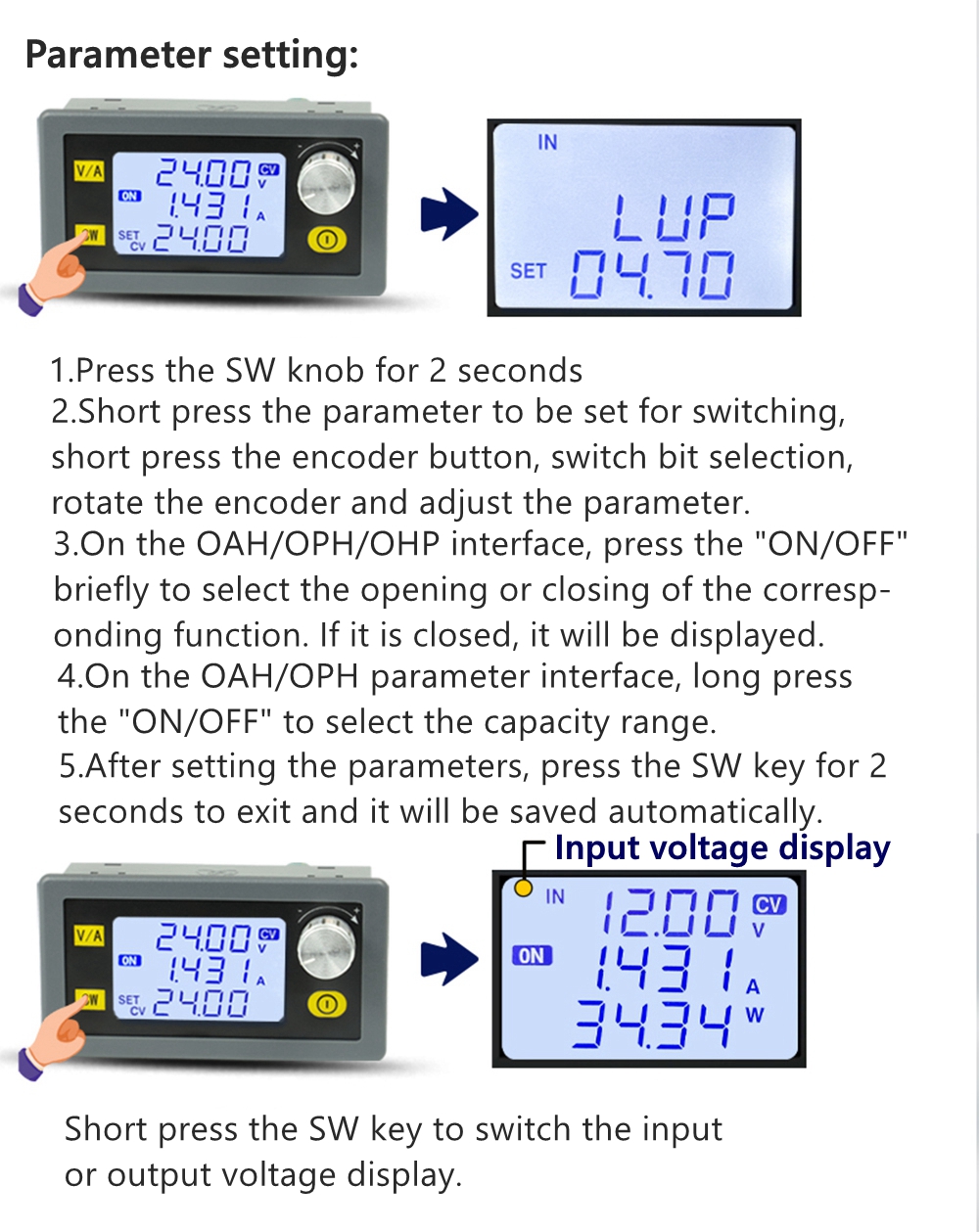

- Note: When AP/OPH and OHP functions are not enabled, the power supply will automatically record the capacity/energy and operation time. After OAH/OPH and OHP functions are enabled, the power supply will automatically turn off the output when the set value is reached; After the OHP function is enabled, the running time of the power supply is in the countdown mode;

Parameter:
- Model: XY-SK35H
- Input voltage: 5.0~30V
- Output voltage: 0.6~30V
- Output current: 0~4.0A
- Voltage accuracy: +/-0.5% +1 word
- Output power: Natural heat dissipation 35W; Air cooling for heat dissipation 50W
- Current accuracy: +/-0.5% + 3 words
- Voltage resolution: 0.01V
- Current resolution: 0.001A
- Transmission efficiency: about 88%
- Soft start: yes

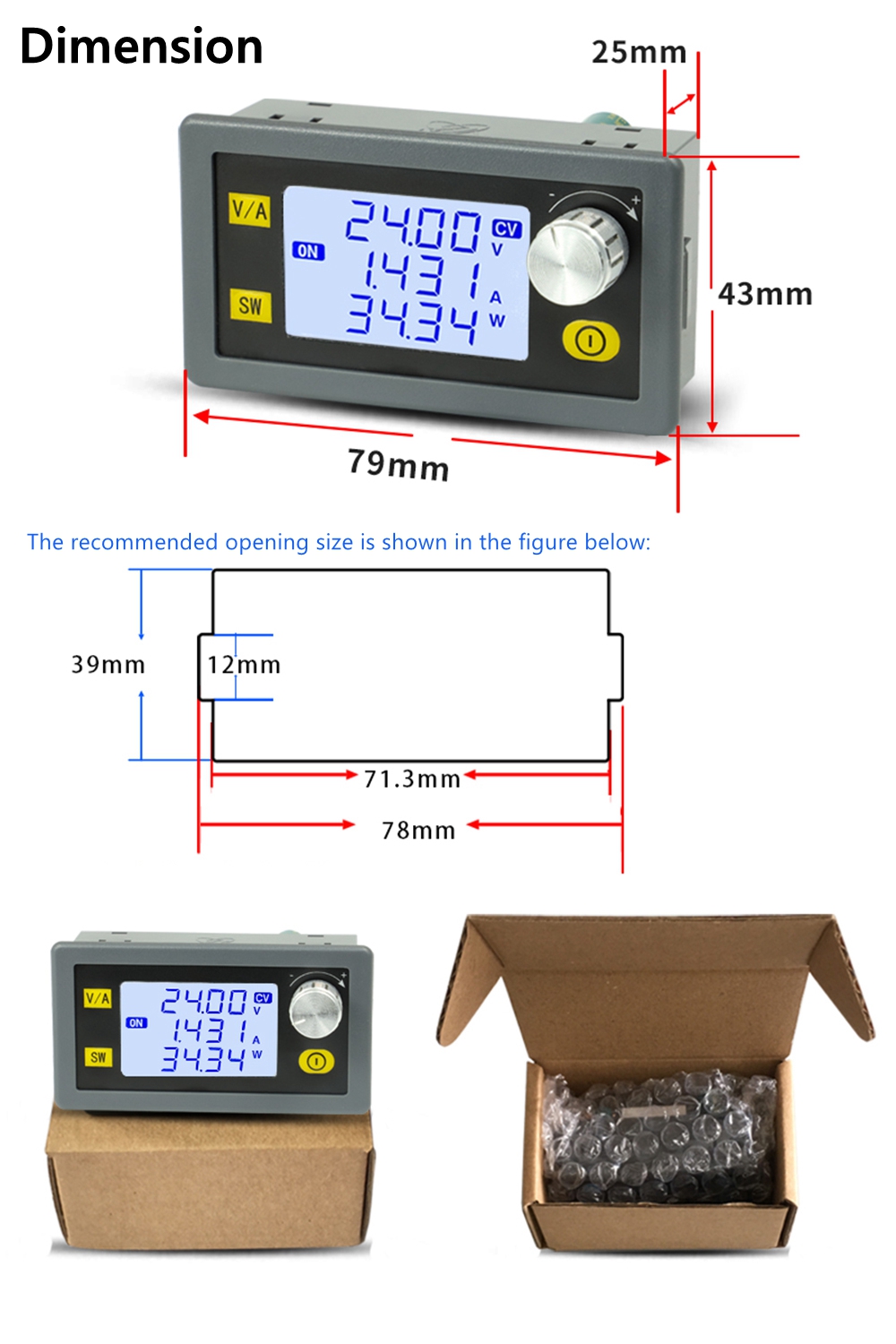

- Size: 79 x 25 x 43mm

Protection:
- Input anti-reverse connection: yes
- Output anti backflow: yes
- Input undervoltage protection: 4.7~30V adjustable, default 4.7V
- Output overvoltage protection: 0~32V adjustable, default 37V
- Output overcurrent protection: 0~4.2A adjustable, default 4.2A
- Output overpower protection: 0~51W adjustable, default 36W
- Over temperature protection: yes; default 95℃
- Timeout protection: 0~100H adjustable, closed by default
- Over capacity protection: 0~9999AH, closed by default
- Superenergy protection: 0~9999WH adjustment, closed by default

Package Included:
- 1 x XY-SK35H Buck Boost Converter
