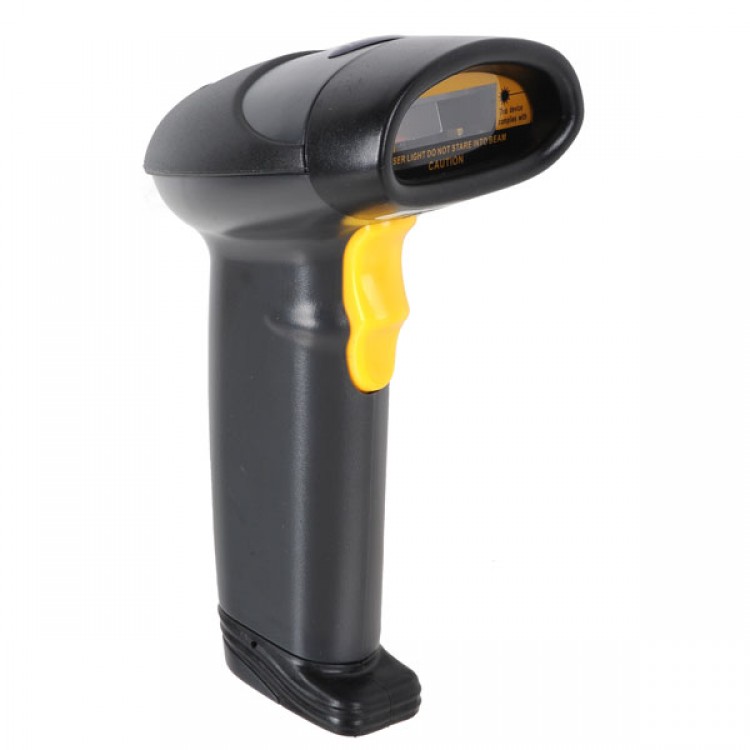

XYL-890 Laser Barcode Scanner Bar Code Reader Decoder of POS- Black
Features:
- simple installation, keyboard wedge, serial, wand emulation etc
- superior keyboard wedge interface-NOVELL compatible-auto caps lock detection ensures that the data always appears on the computers just the way it is encoded in the bar code
- simple programming from your keyboard or scan bar codes
- over 180 configurable options
- auto detection of the type of computer (PC, XT, AT, PS/2, and X Window terminal with a PC compatible keyboard interface)
- can be used with or without the keyboard
- supports over twenty different keyboard country layouts
- map bar code data to any key on the keyboard
- supports editing, operation include (REPLACE, stripping, filtering, convert case)
- programmable preamble, postamble, and termination strings
- READ/NO-READ indicators (buzzer and LED)
- superior reading performance utilizing advanced decoding algorithms
- extended ASCII support for code 128 bar codes
- low power consumption
Laser Barcode Scanner XYL-890 |
|
Functionality Item |
Performance Parameter |
Light Source |
650 nm (visible) |
Use Type |
Hand-held or bracket-held installation |
Bit Error Rate (BER) |
1/5 million |
Decode Capability |
UPC/EAN, UPC/EAN with Supplemental, UCC/EAN 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, RSS variants, Chinese 2 of 5 |
Interfaces |
RS232, USB,PS/2 |
Scanning Type |
Automatic scanning or manual |
Resolution |
0.10mm (4mil) PCS0.9 |
Depth of Field |
0-750mm PCS0.9 |
Scan Rate |
120 scans per second |
Reading Preciseness |
0.40-0.825mm |
Reading Distance |
2.5-600mm |
Transfer Rate |
RS232 baudrate2400-38400 |
Print Contrast |
30% minimum reflective difference |
Scanning Angle |
Inclination angle 45°, Elevation angle 60° |
Operating Temperature |
0°C - 50°C / 32°F to 122°F |
Storage Temperature |
-40°C - 70°C / -40°F to 158°F |
Operating Humidity |
5% - 95% (non condensing) |
Storage Humidity |
5% - 95% (non condensing) |
Power Voltage |
5V |
Working Current |
57mA |
Static Current |
36mA |
Shock |
1.5m drop on concrete surface |
Ambient Light Immunity |
Immune to direct exposure of normal office and factory lighting conditions, as well as direct exposure to sunlight |
Electrostatic Discharge |
Conforms to ±15KV air discharge and ±8KV of contact discharge |
EMI/EMS |
En50081, par1 criteria |
Dustproof |
en50082, par1 criteria |
Housing Material |
ABS+EVA |
Color |
White |
Dimensions |
166×63×88mm |
Weight |
178g |
Safety |
|
Package included:
-1 x USB Barcode scanner with user manual
