| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $114.62 | $112.28 | $108.77 | $104.09 | Contact US |
LD60-RM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-CM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23
LD60-LM-2 XYZ Axis Three-dimensional Trimming Platform High Precision Manual Sliding Table Horizontal Lifting
$125.23

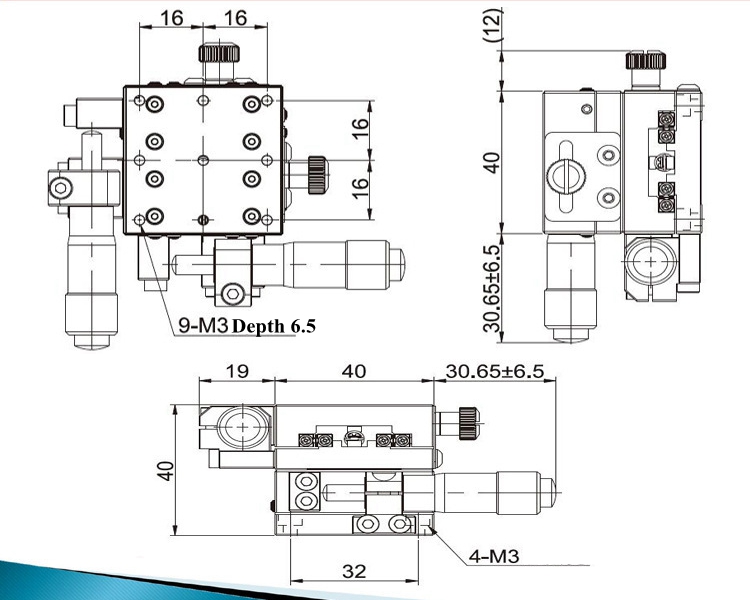

XYZ 3-Axis Manual Linear Stage 40x40mm Micrometer Linear Stage w/ Crossed-Roller Bearing SEMXYZ-40
Features:
- 100% brand new and high quality
- Accuracy: 3Axis linear stage w/ micrometer head for accurate position
- Durability: Made of aluminium alloy material with black anodized surface
- Precision: Adopting cross roller guide for higher precision and smooth movement
- Application: Widely used in production machinery, testing equipment, optical experimental measurement, fine-tuning displacement, precision positioning, quantitative movement, etc.
Specifications:
- Model: SEMXYZ-40
- Table Size: 40x40mm
- Height: 80mm
- Type of Guide Rail: Crossed-Roller Bearing
- Load Capacity: 25.5N (2.5kgf)
- Length of Travel:
For X & Y Axis: ±6.5mm;
For Z Axis: ±6.5mm.
- Accuracy: 0.01mm
- Parallelism: 80μm
- Mobile Parallelism: 10μm
- Straightness: 3μm
- Material: Aluminium Alloy(Black Anodized Surface)
Package Included:
- 1 x XYZ 3-Axis Linear Stage
