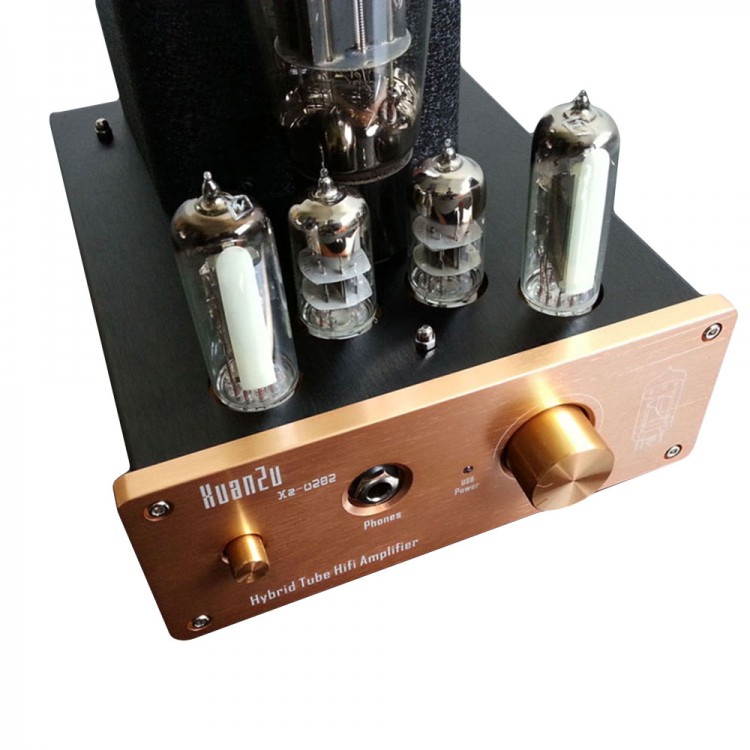

XZ U202 Earphone Headphone Tube Amplifier Preamplifier Input USB AUX RCA DAC Audio Decoder

XZ U202 Earphone Headphone Tube Amplifier Preamplifier Input USB AUX RCA DAC Audio Decoder

Parameters:
- Driver Impedance: 24-600 ohms
- Output Power: 1.2W (600 ohms)
- Output levels: Max 50v rms
- Output Frequency Response: 20Hz to20kHz-3dB
- Output SNR:> 100dB "A" -wtd
- Output total harmonic distortion: <0.008% 20Hz to 20kHz
- USB Input: CM108 support USB2.0
- DAC: TDA1305T
- Line Input: GB Dual Lotus RCA head analog input
- Line-Out: GB Dual Lotus RCA analog output head
- Headphone output: 6.35mm stereo jack
- Support system: Win2K, Win XP, Vista, Win7 (32/64), Win8, Mac OS X
- Input voltage: 220V (110V) AC 50 / 60Hz-- spot to 220V, the same day shipping,
- For 110V version need two to three days of shipping, you need to communicate to the owner of the trouble under 110V.
- Static power consumption: 35Watts
- Host dimensions: length 230 width 170 height 180/200 tube
- Net Weight: 3kg
- GW: 3.5kg

Xz-U202 USB Decoder:
- Xz-U202 is a tube amp with USB DAC functionality, Xz-U202 is a part of USB DAC USB receiver chip and a separate decoder chips,
- USB decoder chip used in Taiwan's Hua News CM108 after we repeated tests,
- XuanZu Xz-U202 not only supports USB2.0 high-speed transmission, and the thickness of the stability and sound much better than the high price of above PCM2706 etc.
- USB1.1 chip, which is why we chose it mainly reason, DAC decoding part of the famous Philips (NXP- think NXP Semiconductors) TDA1305T chip.
- The chip because of its excellent sound quality by some well-known foreign brands of CD, amplifier manufacturers widely used.

Packing List:
- Xz-U202 amplifier (including a tube 6E2-2pcs, 6N3-2pcs, 6N5P-1pcs )
- 220V power cable
- USB connection cable
