Y-200A Active Loop Antenna Short Wave Receiving Antenna 100KHz-180MHz without Battery for SDR Radio

Y-200A Active Loop Antenna Short Wave Receiving Antenna 100KHz-180MHz without Battery for SDR Radio

Specification:
Model: Y-200A
Frequency range: 100KHz-180MHz
Working voltage: DC 9V-12V

Features:
1. Adopt ultra-high frequency low noise preamplifier integrated chip, with ultra wide operating frequency 100KHz to 180MHz operating bandwidth.
2. The shortest wave has the strongest gain of 20dB and is compatible with FM and aeronautical bands. The medium wave effect is average.
3. The diameter of the small ring is 63cm. The antenna is easy to use and suitable for the outside of the window, balcony, terrace and roof.
4. All screws of the antenna are made of 304 stainless steel, and the preamplifier is fully waterproof, windproof and rainproof, which can be used outdoors.
5. The stainless steel clamps can be screwed by hands, no tools required.

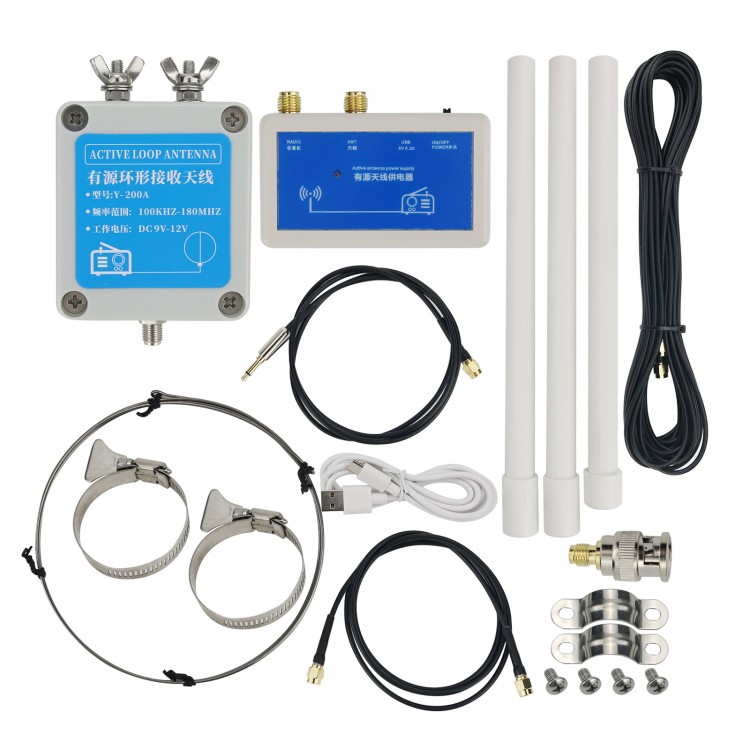

Package List:
-1 x Loop Stainless Steel Wire
-1 x Preamplifier
-1 x Active Antenna Power Supply (without Built-in Battery)
-2 x Screws
-1 x Double SMA Male 10m Cable
-1 x Double SMA Male 1m Cable
-1 x SMA Male to 3.5 Plug 1m Cable
-1 x BNC Adapter
-1 x Micro USB Charging Cable
-2 x Stainless Steel Clamp
-3 x Mounting Bracket
-2 x Connection Tube
-1 x Tube Cap

Note:
-This product power supply does not include built-in battery and needs to be used with USB interface power supply.
-The antenna is only for receiving, not for transmitting. Otherwise, the chip will be burned.
