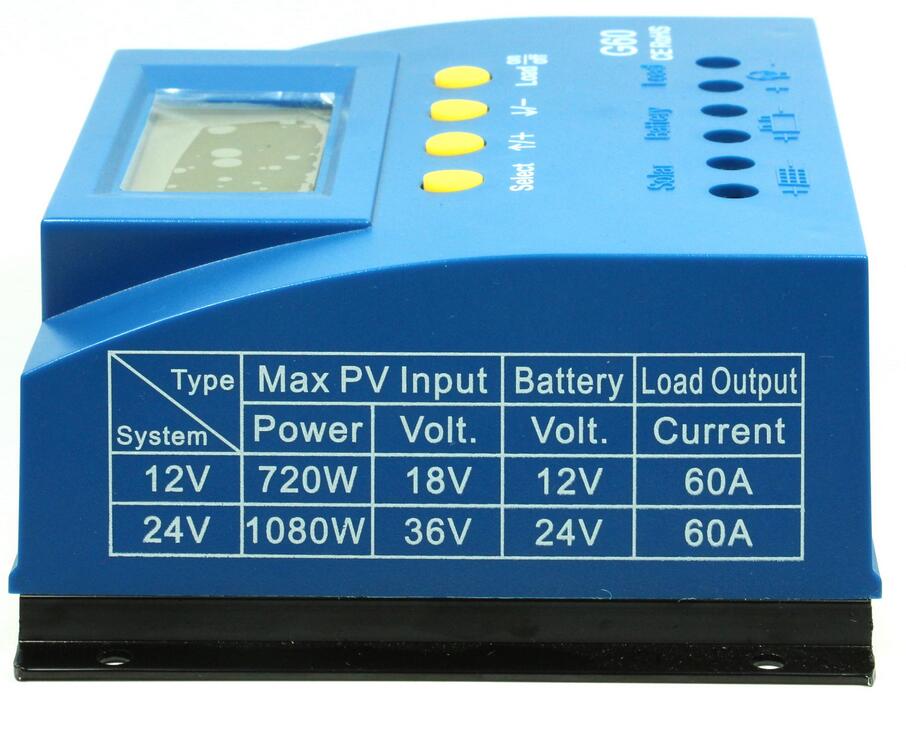

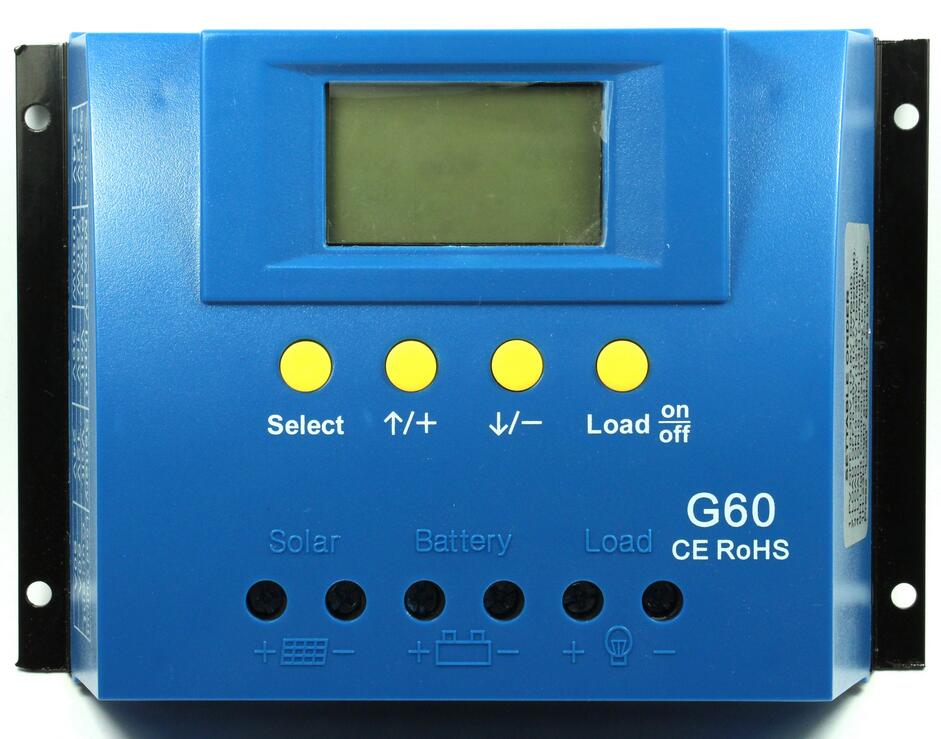

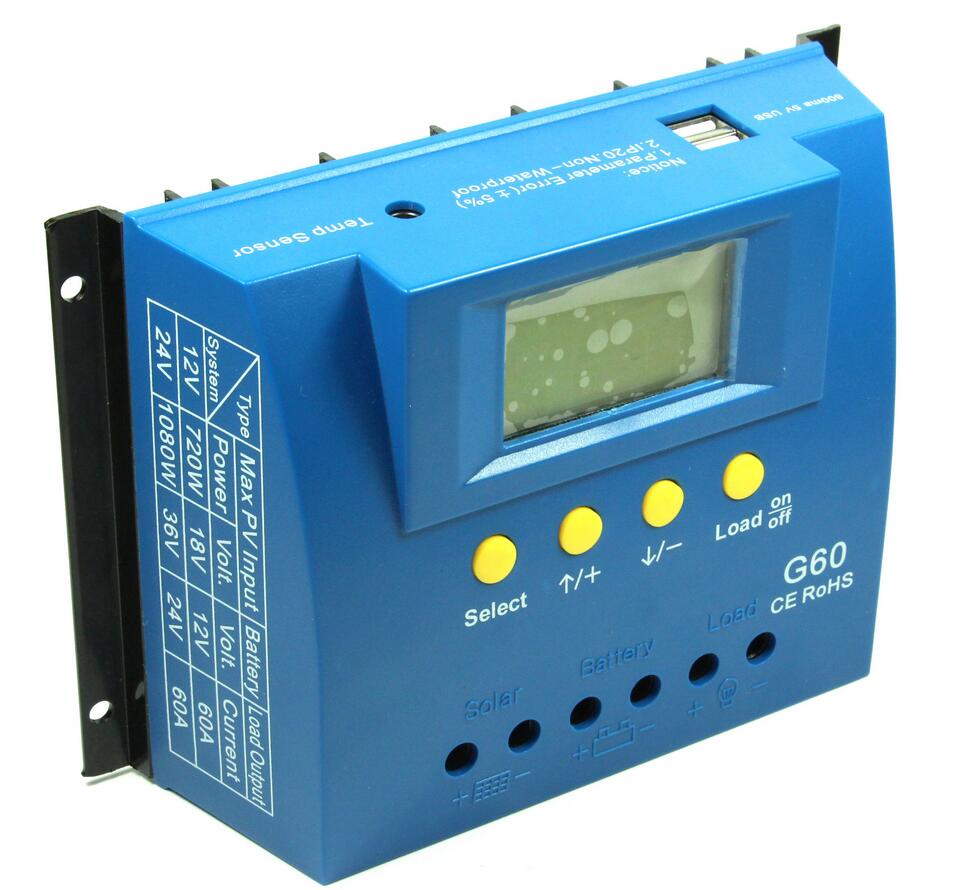

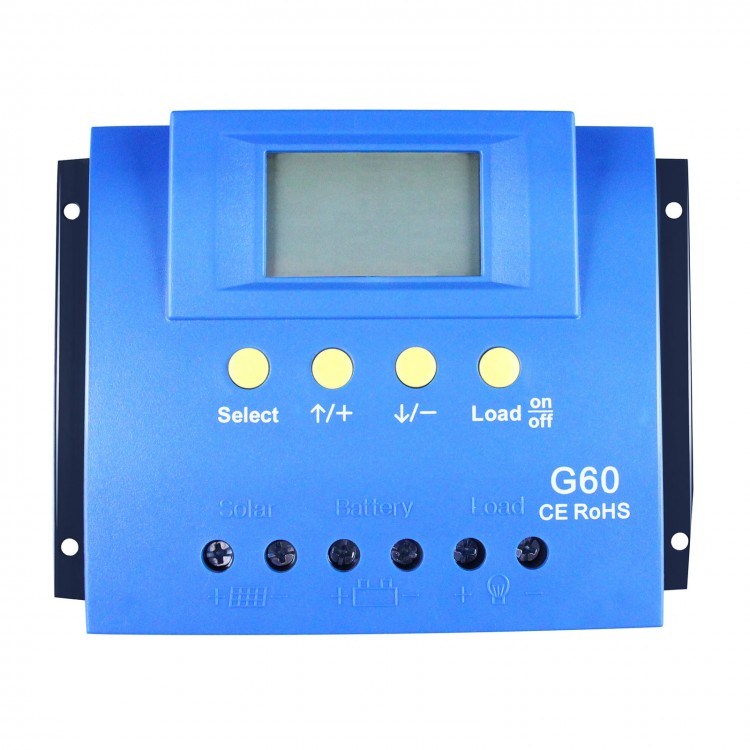

Y-SOLAR 60A PWM Solar Charge Controller Panel Battery Regulator Backlight LCD 12 V and 24V

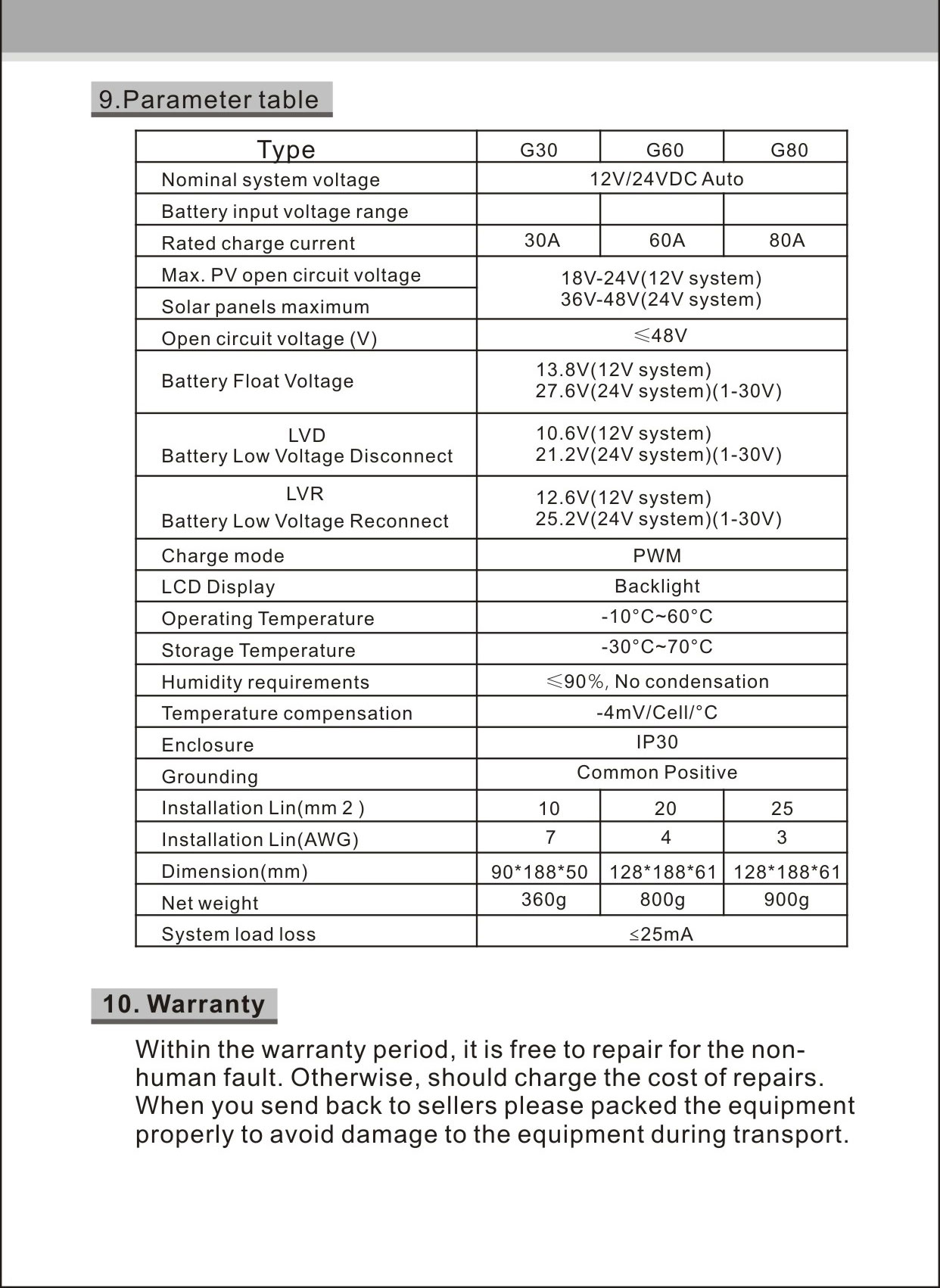

About the condition:
- Solar panels maximum open circuit voltag: ≤48V
- Model: G60
- Battery Float Voltage: 13.8V(12V system)/27.6V(24V system)(adjustable)
- Battery Low Voltage Disconnect Voltage (: 10.6V(12V system)/21.2V(24V system)(adjustable) - Nominal system voltage: 12V/24VDC Auto
- Battery Low Voltage Reconnect Voltage(LV: 12.6V(12V system)/25.2V(24V system)(adjustable) - Rated charge current: 60A
- Charge mode: MPPT+PWM MODE
- Max. PV open circuit voltage: 18V-24V(12V system)36V-48V(24V system)

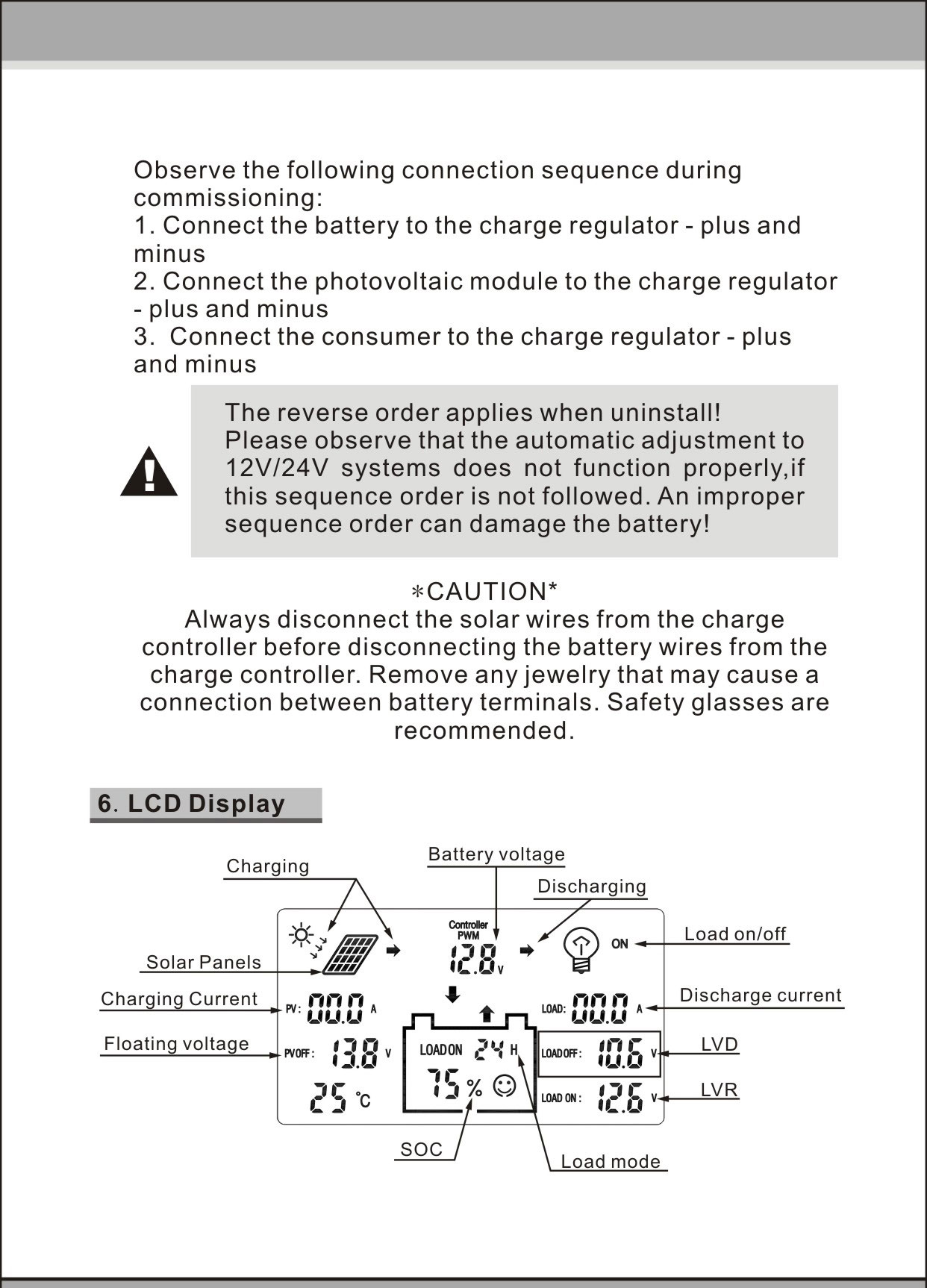

- LCD Display: backlight
Description:
- LCD screen display
- Easy operation interface
- PWM charging mode
- Parameter user can reset,
- A key to open and close the load,
- A key to restore the factory settings,
- Battery reverse discharge protection,
- Battery reverse polarity protection
- Battery under voltage protection,
- Overload, short-circuit protection,
- Automatic temperature compensation function,

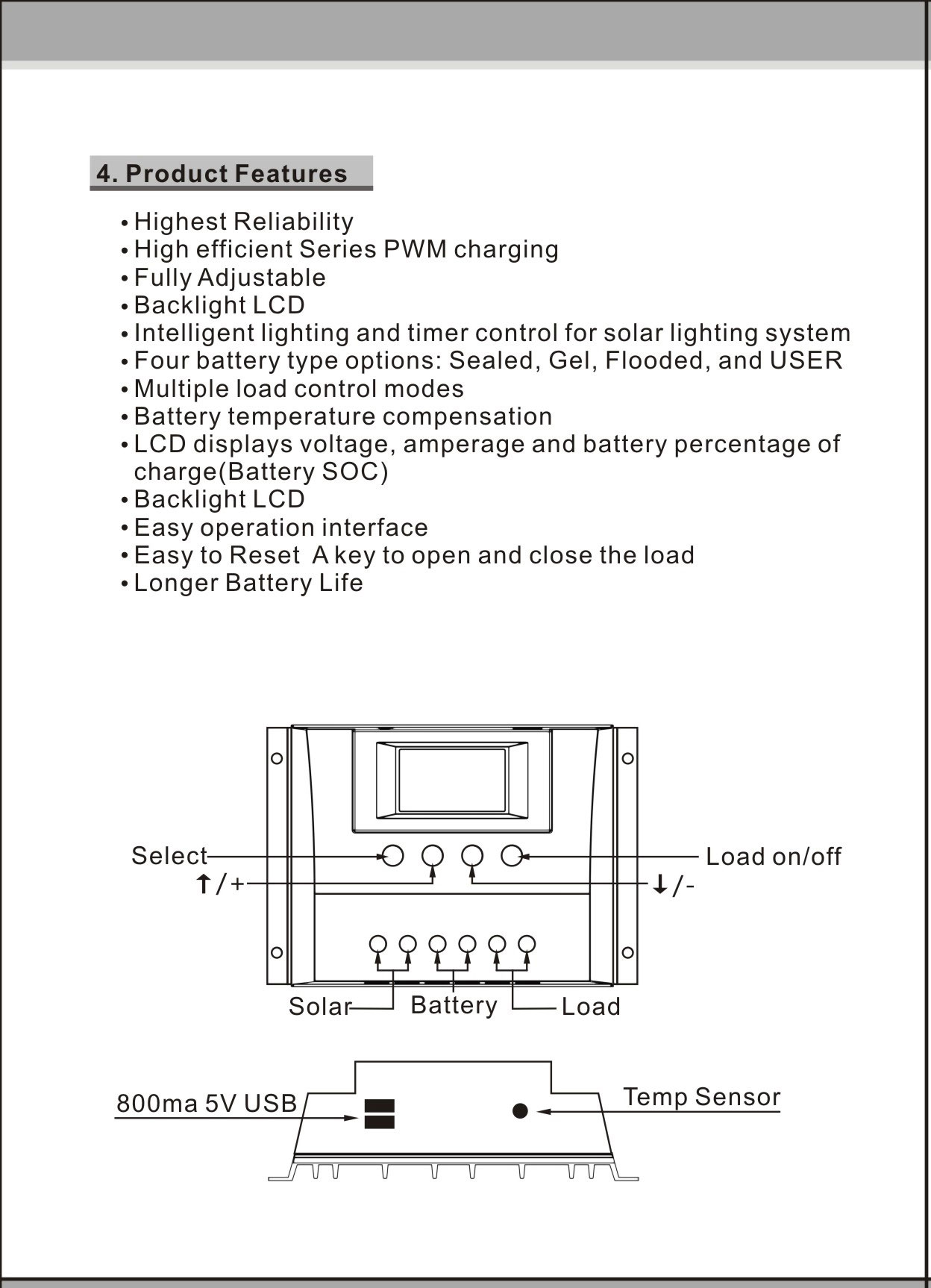

Product Features:
- Highest reliablity
- High effivient Series PWM charging
- Fully Adjustable
- Backlight LCD
- Easy operation interface
- Easy to reset a key to open and close the load
- Longer battery life
Package List:
- 1x Solar Controller
- 1x Temperature sensor
- 1x Battery
