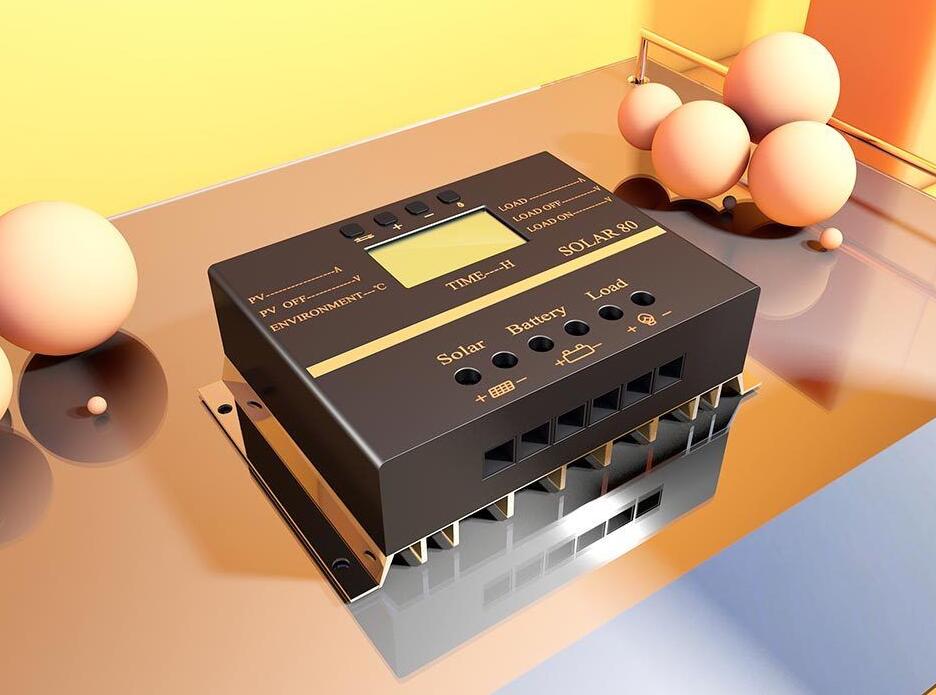

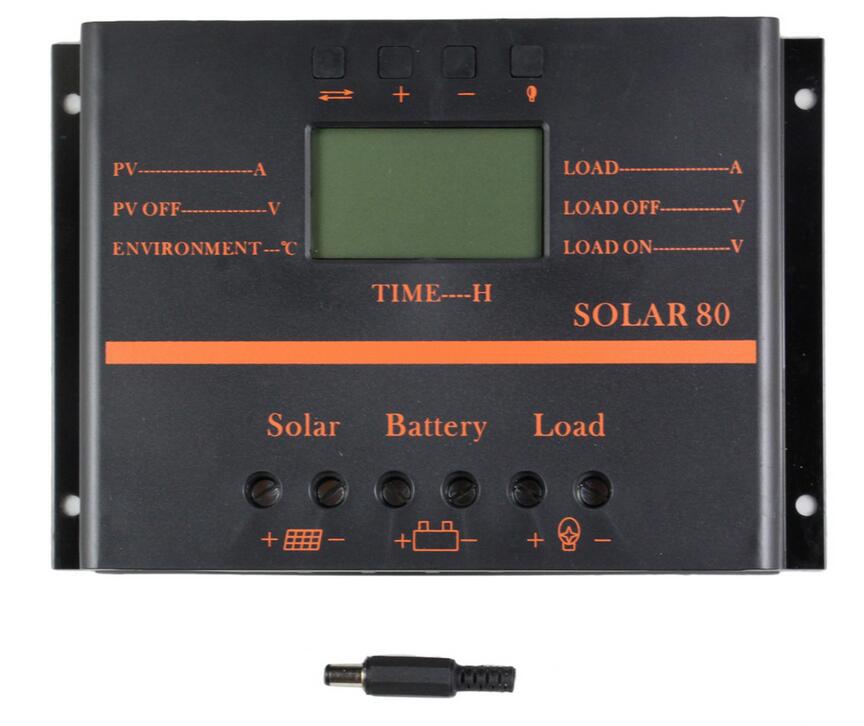

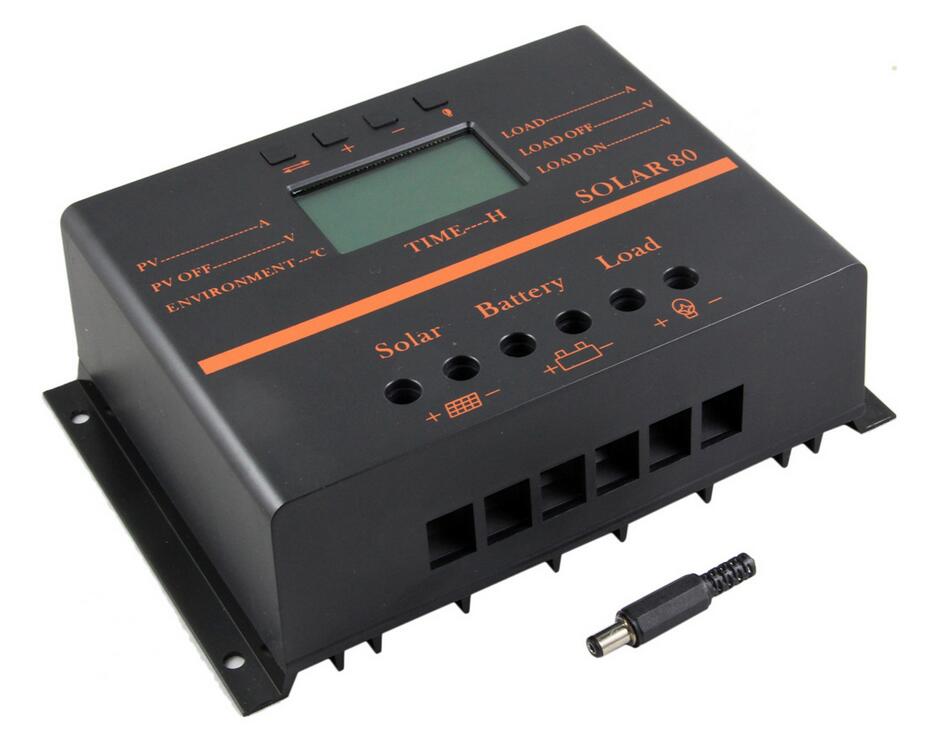

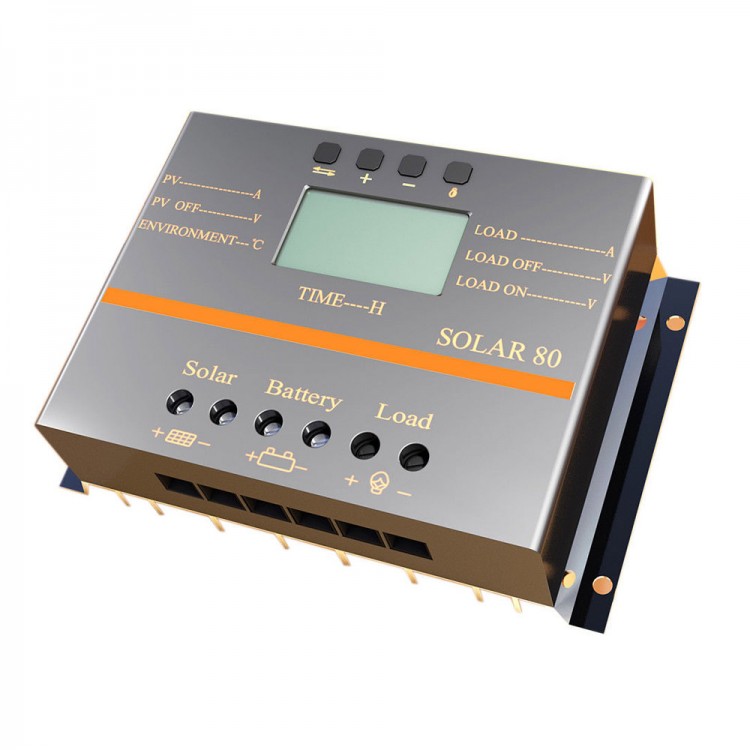

Y-SOLAR 80A LCD PWM Solar Panel Charge Controller Battery Regulator 12V/24V Auto

Y-SOLAR 80A LCD PWM Solar Panel Charge Controller Battery Regulator 12V/24V Auto

Product Description:
- 80A Solar Panel Charge Controller Regulator 12V/24V+ LCD display
- Compatible with 1440W(24v) solar panel with dark activated function
- Max current is 80A
- Compatible with MAX 1440W Solar Panel 12V/24V Auto Switch;
- Timer Intigrated (Lighting function)

Features:
- Solar LCD series a kind of intelligent,multipurpose solar charge and discharge controller
- LCD screen display
- Easy operation interface
- PWM charging mode
- Parameter user can reset
- A key to open and close the load
- A key to restore the factory settings
- Battery reverse discharge protection
- Battery reverse polarity protection
- Battery under voltage protection
- Overload,short-circuit protection
- Automatic temperature compensation function
- USB 5V charging (for 500mA) for mobile phone

Parameter:
- Mode:Solar80
- Rated working current:80A
- Rated working voltage:12V/24V
- Solar panels voltage:≤48V
- Float charging voltage(settable):13.8V/27.6V
- Low voltage protection(settable):10.7V/21.4V
- Low voltage recovery(settable):12.5V/25.0V
- No-load loss:≤25mA
- Loop pressure drop:≤160mV
- Charging mode:PWM

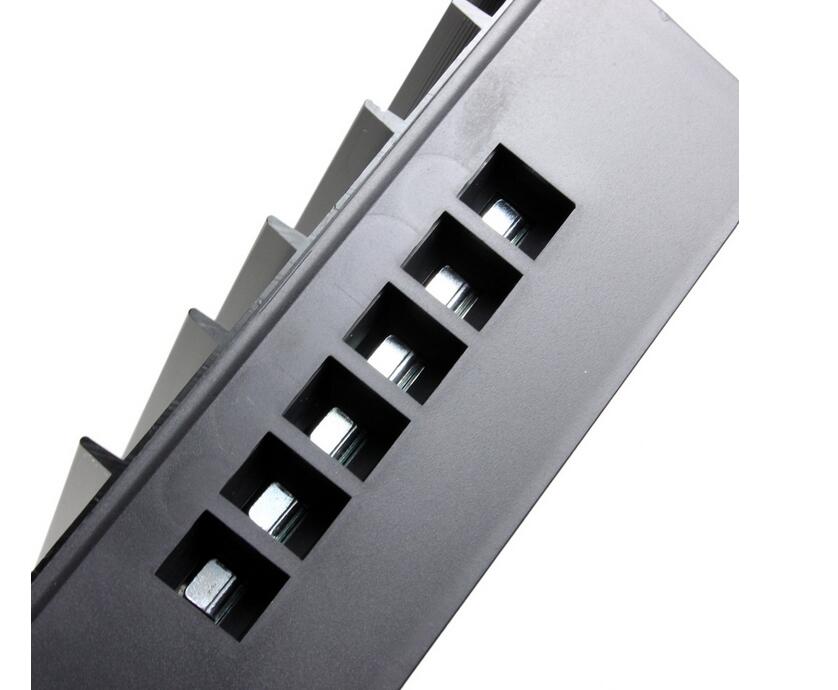

- Cables:(25mm2)
- Working temperature:-10°C~60°C
- Storage temperature:-30°C~70°C
- Humidity requirements:≤90%

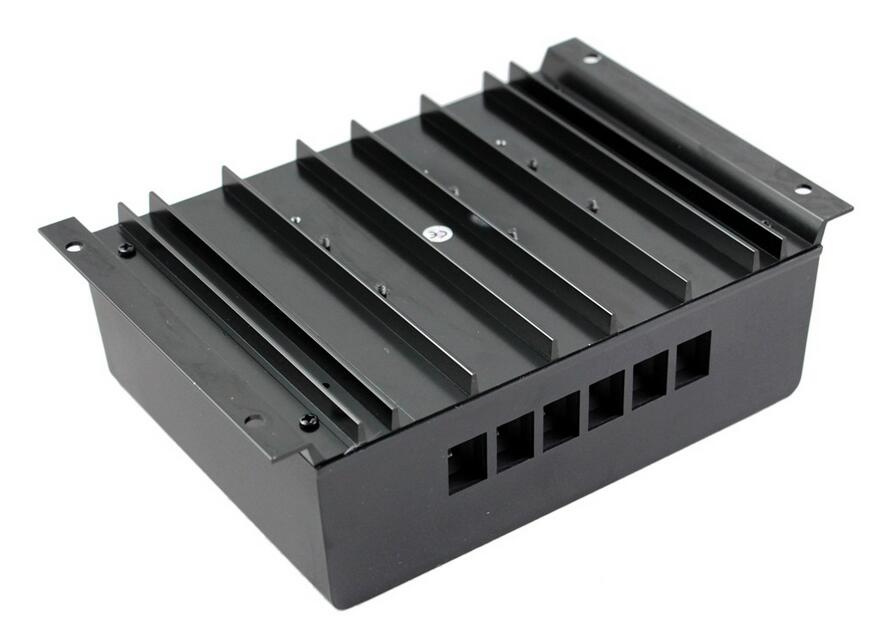

- Dimension:128 mm×188 mm×61mm
- Mounting hole spacing:98 mm×178 mm --Φ5
- Weight:≤1000g
- Temperature compensation:-4mV/Cell/°C

Package List:
-1 x Solar controller
-1 x English User Manual
-1 x Temp Sensor
