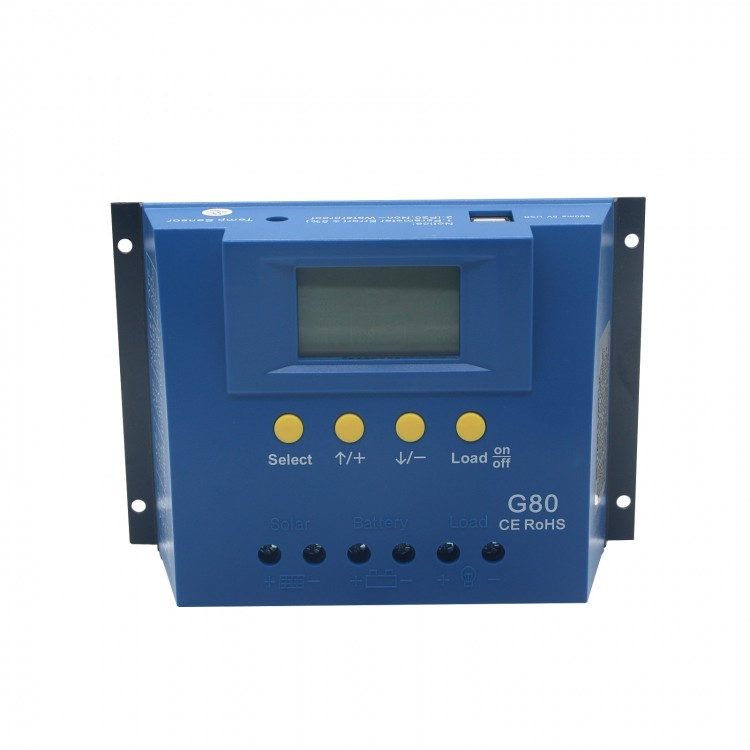

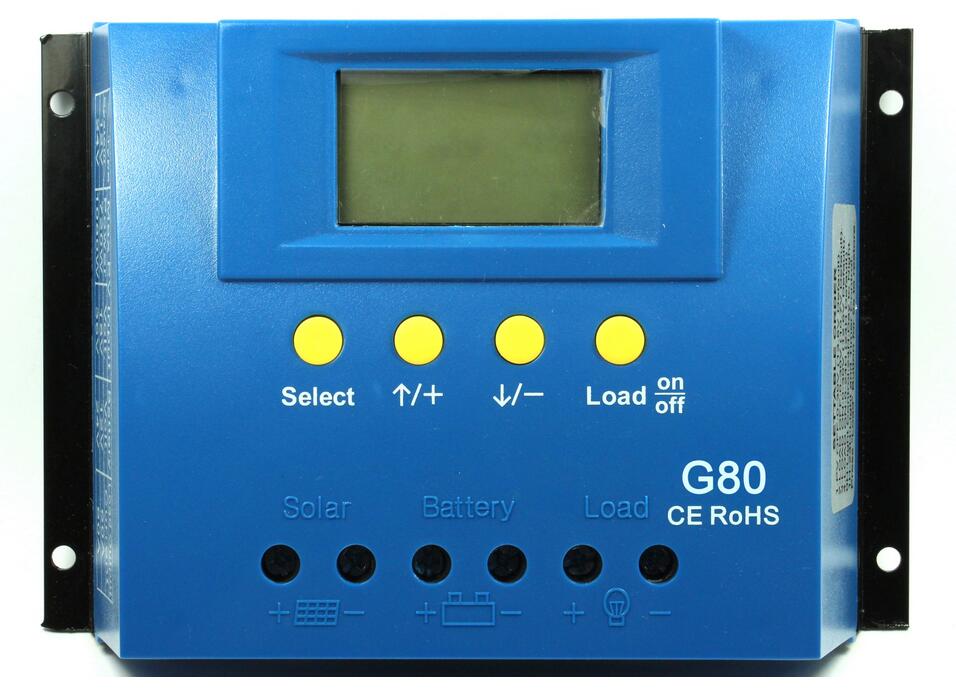

Y-SOLAR 80A Solar Charge Controller Panel Battery Regulator Dual USB Backlight LCD PWM

Y-SOLAR 80A Solar Charge Controller Panel Battery Regulator Dual USB Backlight LCD PWM


About the condition:
- Battery Float Voltage: 13.8V(12V system)/27.6V(24V system)(adjustable)
- Model:     G80
- Battery Low Voltage Disconnect Voltage (: 10.6V(12V system)/21.2V(24V system)(adjustable)
- Battery Low Voltage Reconnect Voltage(LV: 12.6V(12V system)/25.2V(24V system)(adjustable)
- Nominal system voltage:  12V/24VDC Auto
- Charge mode:  MPPT+PWM MODE
- Rated charge current:  80A
- LCD Display:   backlight
- Max. PV open circuit voltage:  18V-24V(12V system)36V-48V(24V system)
- Solar panels maximum open circuit voltag:  48V

Settable Order:
- PV OFF:0-30V (13.8V Default)
- Load off:0-30V (10.7V Default)
- Load on:0-30V (12.6V Default)
- Load on :0-24H (24H Default)
- oH:Light Control:24H,Day to Night
- 1H-23H:Light and Timer Control
- Press Load Button for 5 seconds to restore.

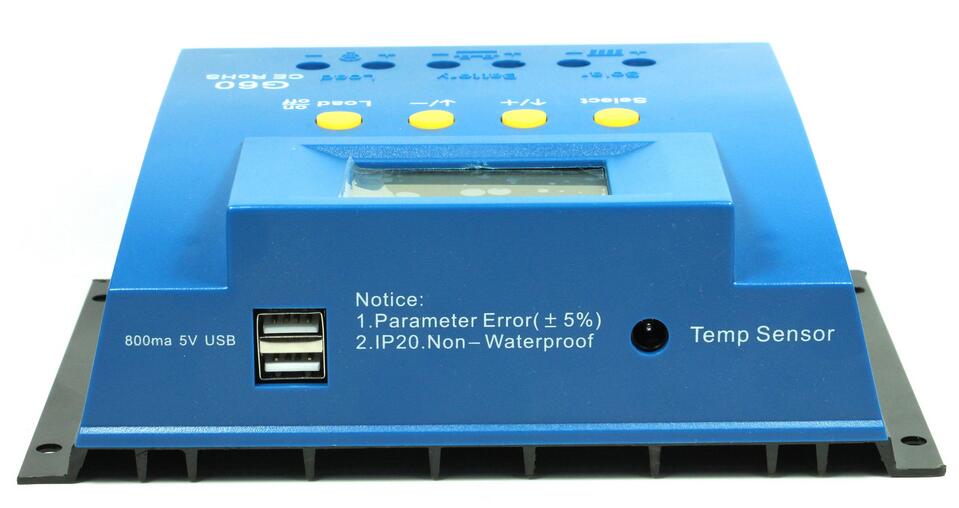

Notice:
- Parameter Error (+-5%)
- IP20.Non-Waterproof

Package List:
- 1x         Charge Controller
- 1x         Temperature sensor
- 1x          Battery
