| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $20.13 | $19.72 | $19.10 | $18.28 | Contact US |

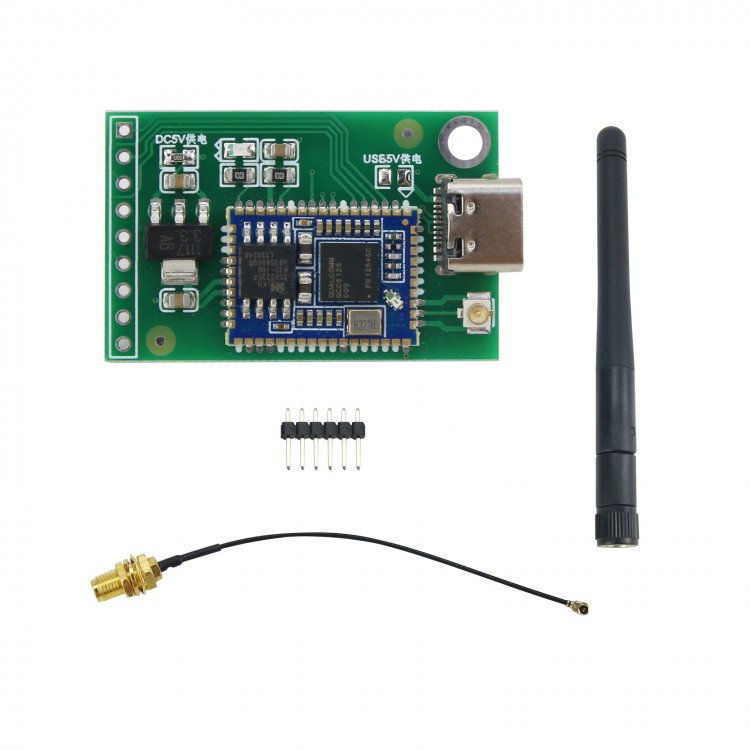

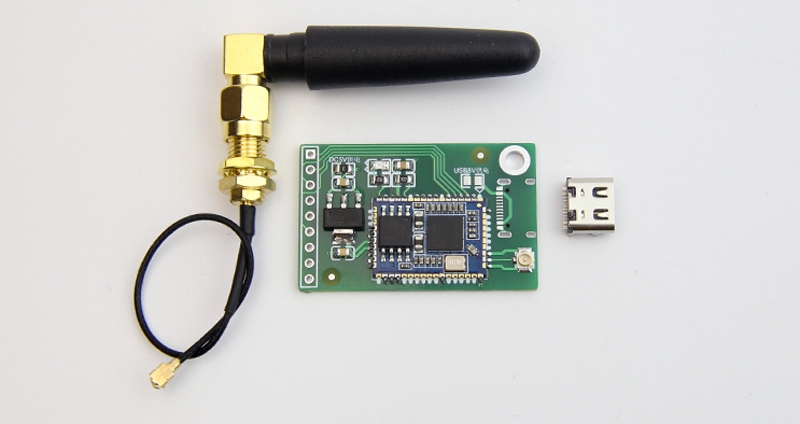

Y1 Basic Version Bluetooth Receiver Board Module QCC5125 Lossless Modify Speaker Amplifier Board
Y1 Basic Version:
- Without decoding function
- Bluetooth Chip: QCC5125
- Input: Bluetooth 5.1 (support for APTX-HD, LDAC)
- Output: Standard four-wire i2s (with MCK)
- Power Supply: DC 5V, pin hole pitch: 2.54mm
- Size: 38x24mm (standard configuration includes pin header, antenna, USB Type-C port)
- Powered via pin header by default. USB is not soldered. Please note if USB power supply is needed
Package Included:
- 1 x Set of Bluetooth Receiver Module
