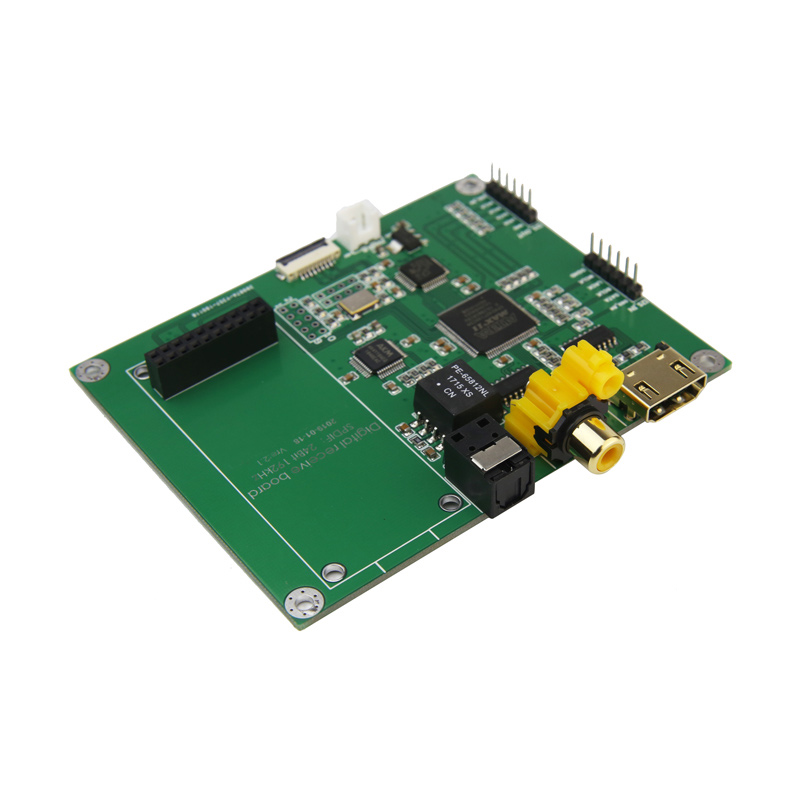

Y16 Digital Receiver Board Digital Input Switch SPDIF 24Bit 192KHz w/ 1.3" OLED Without USB Module
Attention:

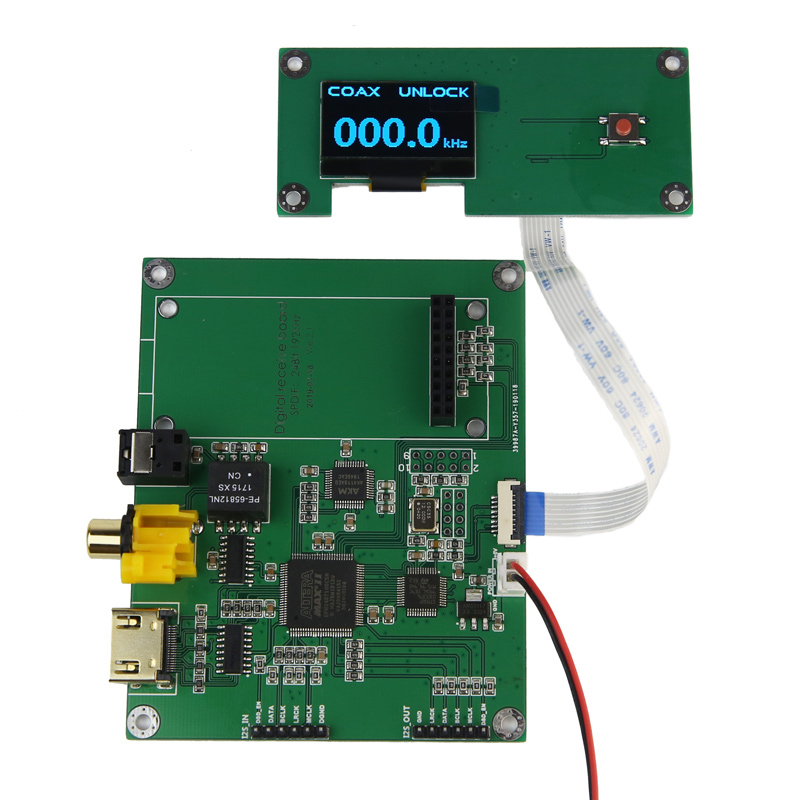

- The display is a 1.3-inch OLED. The display with white or blue characters will be delivered at random. Thank you for your understanding!
Specifications:
- Power supply: DC 5V
- Input interfaces: coaxial (COAX), optical (OPT), I2S over HDMI, I2S
- Output interfaces: I2S [MCLK, BCLK, DATA, LRCK]
- SPDIF receiving chip: AK4118AEQ
- Sampling rate support:
* COAX PCM 16-24bit, 44.1-192kHz
* OPT PCM 16-24bit, 44.1-192kHz
* HDMI PCM 16-32bit, 44.1-192kHz DSD DSD64-DSD512
* I2S PCM 16-32bit 44.1-192kHz DSD DSD64-DSD512
- Screen size: 1.3-inch OLED
- Board size: 10cm*8cm
Package Included:
- 1 x Set of Digital Receiver Board

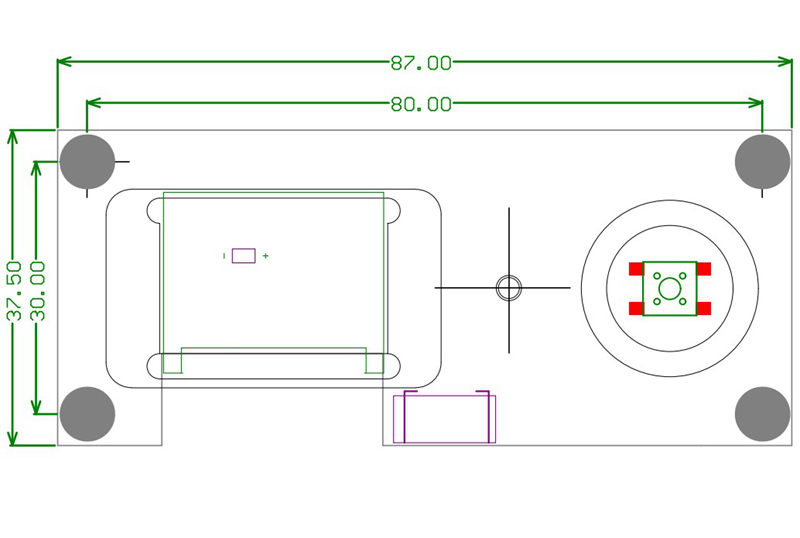

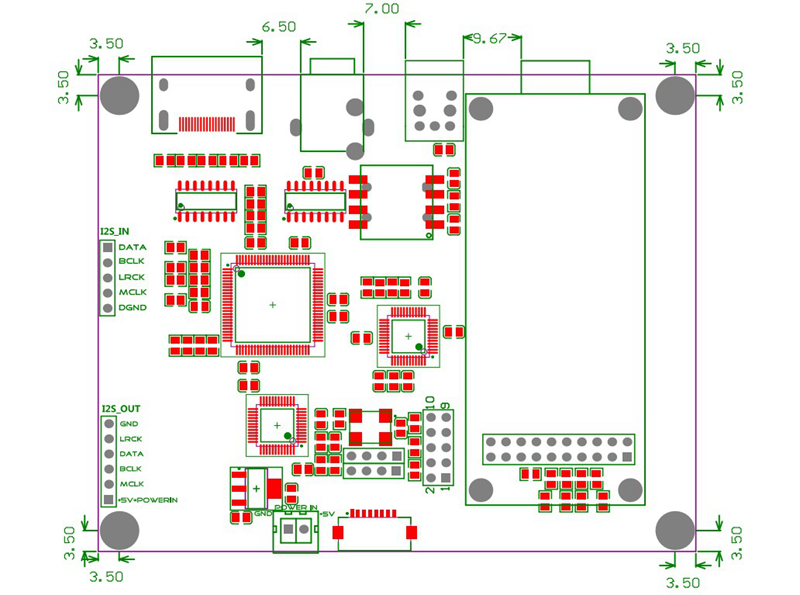

Hole Size Drawing:

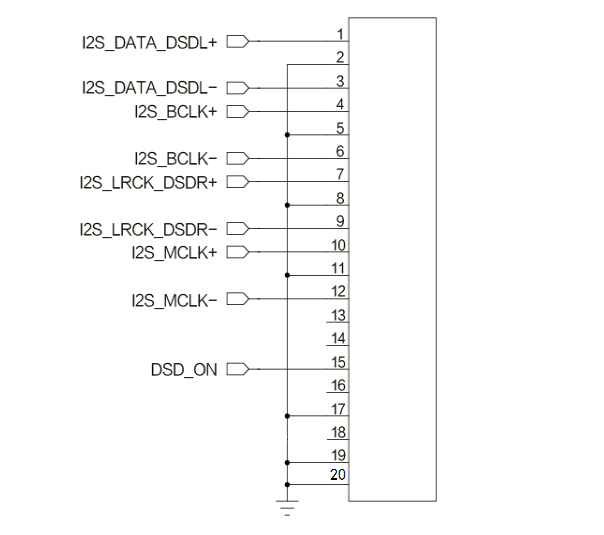

I2S Input Definition:
