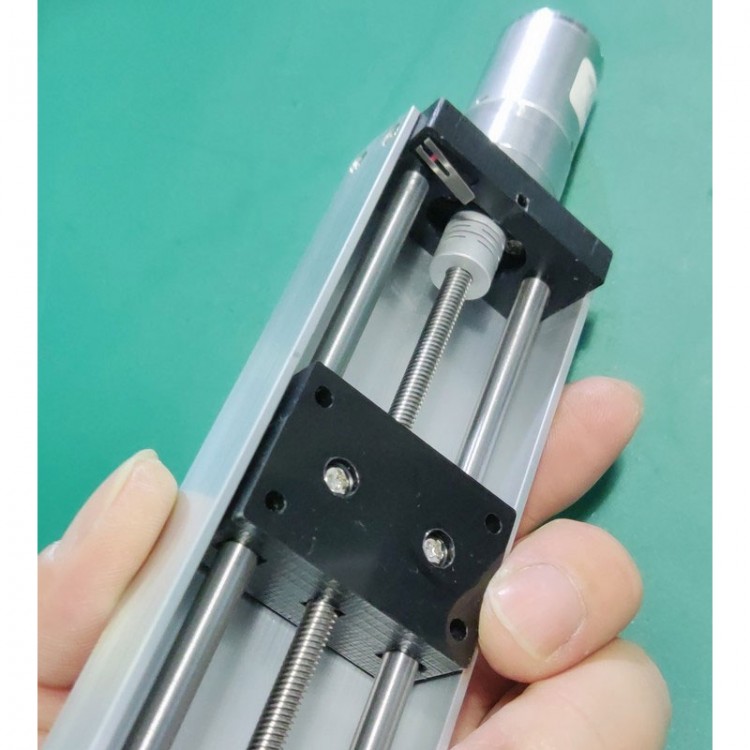

Y370 Linear Slide Table Sliding Table (Slider Travel 100mm) with GA25-370 Gear Motor Limit Switches
Features:
- New linear sliding table
- With a DC gear motor
- Slim design and high thrust
- No driver required. When DC5~24V is connected, it slides easily! Swapping the positive and negative electrodes enables a round-trip movement
- U-shaped aluminum groove
- Linear shaft with silent copper sleeve
- With limit switches at both ends
Basic Parameters:
- Voltage range: DC5~24V (If you need other voltages, please contact customer service before placing an order)
- Drive current: Over 0.5A
- Motor speed: 58/281/380/630/1360 rpm (will be delivered at random)
- Lead: T5-4mm (the slider goes 4mm for one turn)
- Slide table size: total length = effective travel + 100mm (motor length 50mm)
- Slider width: 50mm
- Slider height: 22mm (thin)
Package Included:
- 1 x Linear Slide Table
Packaging Details:
- Weight: 0.38kg
