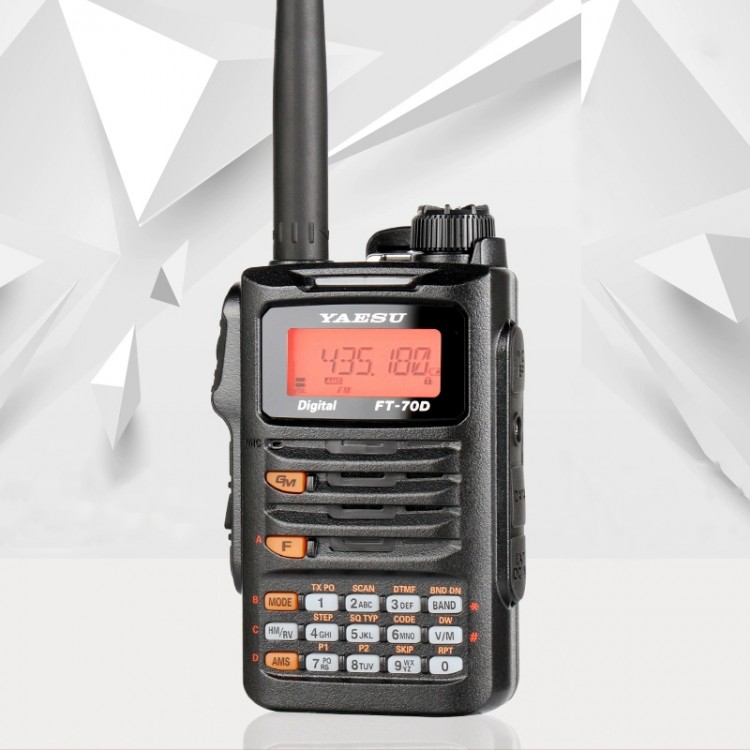

Yaesu FT-70DR Dual Band Walkie Talkie Handheld Transceiver VHF UHF Radio 5W IP54 Covers 1.5-3KM

Yaesu FT-70DR Dual Band Walkie Talkie Handheld Transceiver VHF UHF Radio 5W IP54 Covers 1.5-3KM

Advantages:
- Dual band digital walkie-talkie
- C4FM/FM make calls clearer
- Well made
- C4FM digital system
- Manual tuning
- 5W RF power
- Ultra-wideband receiving
- 700mW audio output
- 1105 storage channels
- IP54 dustproof and waterproof
- Group monitoring function

Features:
- Say goodbye to noise in digital mode, and voice calls are clearer. Using C4FM digital high-definition voice technology for Yaesu, has a better bit error rate (BER) to ensure high-quality voice communication.
- System integration, compatible with analog and digital communication. Through the innovative system integration function, users can automatically identify digital and analog signals without manual switching, bringing more convenient and unimpeded communication. V/D mode, voice FR mode, AMS automatic mode selection, data FR mode, analog FM mode.
- 700mW audio output, the sound is clear and loud. 32mm front speakers, coupled with 700mW audio power, output loud, clear and crisp audio voice. Even in a noisy environment, you can still maintain smooth contact.
- Professional specification structure, compact and strong. Robust IP54 (dust/waterproof grade) structural design, precision casting, suitable for harsh outdoor environments.
- High-performance battery, durable. 1800mAh lithium-ion battery pack, about 7-8 hours of working time. Turn on receiving power saving function, which can significantly reduce power consumption.
- Powerful storage and scanning functions. Large-capacity storage: Supports up to 1105 storage channels to save frequently used frequencies. Storage library management: Supports up to 24 storage libraries for convenient classification management. Pure channel mode: easy switching, simple and quick operation. Multi-function scanning: support multiple frequency scanning methods such as VFO and storage channel.
- Wide-range broadband reception, endless fun. Support 108-580MHz broadband receiving, covering aviation, maritime, amateur, commercial, TV audio and other frequency bands, bringing you more listening pleasure.
- Calls are clear and signals are stable. It is suitable for a variety of scenarios. It can be used for self-driving travel, outdoor mountain climbing, cycling, fishing, outdoor skiing, etc.
- Multifunctional numeric keyboard, with secondary shortcut keys, makes operation more convenient.
- With SMA male soft rubber antenna, the length is moderate.
- In-line headphone jack cover design greatly improves its waterproof durability.
- Firmware upgrade, cover design of charging interface side, saving space.
- Practical Functions: Dual-frequency monitoring, dual-tone paging, password protection, automatic shutdown, sub-tone scanning, receiving power saving.

Technical Specifications:
- Model: FT-70DR
- Talking distance: 1.5km-3km (including 3km)
- Frequency range: Transmitting: 140-174MHz, 420-470MHz. Receiving: 108-579.995MHz
- Transmitting power: 5W/2W/0.5W
- Number of channels: 1105
- Battery type: Lithium-ion battery pack
- Battery capacity: 1800mAh
- Battery usage: working time is about 7 hours (transmitting time: receiving time: standby time=10:10:80)
- Working current: Standby: 70mA/120mA (turn on/off power saving mode 1:5). Receive: 180mA. Transmit: about 1.9A (5W transmit)
- Modulation type: F2D, F3E, F7W (4FSK/C4FM)
- Frequency stability: ±2.5ppm
- Channel step: 5/6.25/8.33/10/12.5/15/20/25/50/100kHz (8.33kHz is only used for aviation frequency band)
- Rated voltage: 7.4V DC
- Audio rated power: 700mW
- Working temperature: -20C to +60℃
- Dustproof and waterproof level: IP54
- Antenna interface: SMA male
- Antenna impedance: 50Ω

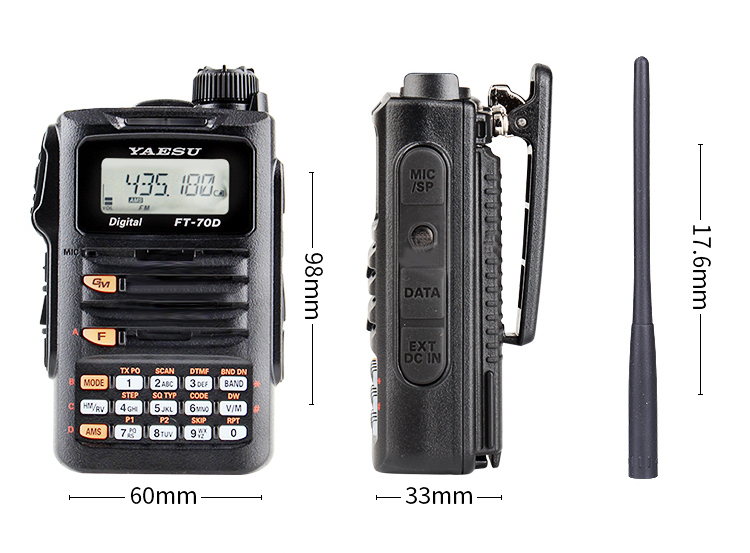

- Size: 60x98x33mm (with size of SBR-24LI battery, without sizes of knob, antenna and belt clip)
- Product weight: 255g (including the weight of SBR-24LI battery and antenna)

Package Included:
- 1 x Set of Walkie Talkie

Attention:
1. The FT-70DR walkie-talkie has passed the professional inspection of the SRRC State Radio Regulation of China Testing Center, and obtained the Chinese radio transmission equipment type approval certificate (approval code: 2017FJ2615).
2. The test conditions for continuous working time are transmitting power 5W, receiving volume level 16, power saving mode 1:5, and calculating according to the operating cycle of transmitting time: receiving time: standby time = 10:10:80.
3. The reference distance of handheld walkie-talkies in urban areas is 1-2 kilometers, and the communication distance will be longer in an open environment. The call distance will have a greater impact due to the environment and frequency used. During driving, because car body shields radio signals, it is recommended to use an external car antenna.

1-Antenna interface
2-LCD display
3-PTT key
4-Microphone
5-MONI/T.CALL switch
6-VOL switch
7-Power/locking switch
8-Lithium battery pack

9-DIAL knob
10-LED status indicator
11-Speaker
12-Keyboard
13-Microphone/headphone jack
14-DATA port
15-External power supply jack
16-Wristband hole
