YAESU FT-7900R Dual Band FM Transceiver Mobile Radio UHF VHF 50W Without Antenna Feeder Line Clamp

YAESU FT-7900R Dual Band FM Transceiver Mobile Radio UHF VHF 50W Without Antenna Feeder Line Clamp

Description:
The FT-7900R provides 50 Watts of power on the 144 MHz band, and 40 Watts on the 430 MHz, and is designed for simplicity of operation along with high performance in the receiver section. The FT-7900R is ideal for the active Ham who has a need for simplex, repeater, or FM satellite operation on both bands, but without the complication of cross-band repeat capability, which is available on our FT-8800R and FT-8900R models.

Features:
- 50W/45W high power, stable performance. With Japanese RD70HVF1 power amplifier, it provides 50W output on 144 MHz, and 40 Watts on 430 MHz
- Long communication distance. City 1-15KM, mountainous area 10-20KM, plain 15-30KM (data is for reference only, actual distance may vary due to different environments)
- Large LCD display. The large backlit LCD on the FT-7900R ensure excellent visibility
- Temperature controlled fan, automatic protection. The main body shell has a DC heat sink and is equipped with a temperature-controlled cooling fan. When the temperature rises to the factory preset value, it will automatically reduce the transmission power, control the circuit temperature within a safe range, and prevent the radio from overheating
- Automatic shutdown, energy saving and power saving. In order to prevent you from forgetting to shut down when you leave your car, the radio can automatically shut down within a specified time without any operation, saving electric quantity. (Please refer to the manual for activation method)
- Mass storage. Support 1000 storage channels, convenient for your daily use
- Frequency and subtone scanning. Supports frequency and analog/digital sub-tone scanning of the operating band, searching for available base station frequencies nearby. When you first arrive at a certain place, you can quickly scan up to 30pcs nearby available frequencies and save them to the smart search library for recall
- Manual tuning is fast and convenient. The equipped multi-function handheld mic can be manually tuned, which is easy to operate. Programmable buttons: Customized buttons provide quick and easy access to frequently used functions. Numeric keyboard: can directly manually input frequency to maintain communication
- UHF, VHF receiving and transmitting. Receiving: 136mhz-174mhz and 400mhz-480mhz. Transmitting: 136mhz-174mhz and 400mhz-480mhz
- Detachable panel, flexible installation. The radio host and control panel can be separated by one button, and can be flexibly installed according to the space in a car by using the attached separation kit. (Including 6M/19.7FT audio panel extension cable)
- Metal antenna interface, strong anti-oxidation, good adhesion
- External jack details. Data cable, DC external speaker jack
- Built-in 2W speaker with clear sound quality
- Can be applied to self-driving travel, fleet travel, HAM

Specifications:
General
- Frequency range of TX RX: 136mhz-174mhz and 400mhz-480mhz
- Channel Steps: 5/10/12.5/15/20/25/50/100 kHz
- Modes of Emission: F3E, F2D, F2A
- Frequency Stability: ±5ppm at 14℉ to 140℉ (-10℃ to 60℃)
- Operating Temperature Range: -4℉ to 140℉ (-20℃ to 60℃)
- Supply Voltage: 13.8 VDC (±15 %), negative ground
- Current Consumption (Approx.): RX: 0.5 A (Squelched); TX: 8.5 A (144 MHz, 50 W), 9 A (430 MHz, 45 W)
- Case Size (W x H x D): 5.5" x 1.6" x 6.6" (140 x 41.5 x 168mm) (excluding sizes of knobs & connectors)

Transmitter
- Output Power: 50/20/10/5 W (144 MHz), 45/20/10/5 W (430 MHz)
- Modulation Type: Variable Reactance
- Maximum Deviation: ±5 kHz, ±2.5 kHz
- Spurious Radiation: At least -60 dB below
- Microphone Impedance: 2 kΩ
- DATA Jack Impedance: 10 kΩ

Receiver
- Circuit Type: Double-conversion superheterodyne
- Intermediate Frequencies: 45.05 MHz/450 kHz
- Sensitivity: 0.8μV (TYP) for 10 dB SN (108-137 MHz, AM); 0.2μV for 12 dB SINAD (137-150 MHz, FM); 0.25μV for 12 dB SINAD (150-174 MHz, FM); 0.3μV (TYP) for 12 dB SINAD (174-222 MHz, FM); 0.25μV (TYP) for 12 dB SINAD (222-300 MHz, FM); 0.8μV (TYP) for 10 dB SN (300-336 MHz, AM); 0.25μV for 12 dB SINAD (336-420 MHz, FM); 0.2μV for 12 dB SINAD (420-520 MHz, FM); 0.4μV (TYP) for 12 dB SINAD (800-900 MHz, FM); 0.8μV (TYP) for 12 dB SINAD (900-999.99 MHz, FM)
- Squelch Sensitivity: Better than 0.16μV
- Selectivity (-6dB/-60dB): 12 kHz/30 kHz
- Maximum AF Output: 2 W at 8Ω for 10% THD
- AF Output Impedance: 4-16Ω

Package Included:

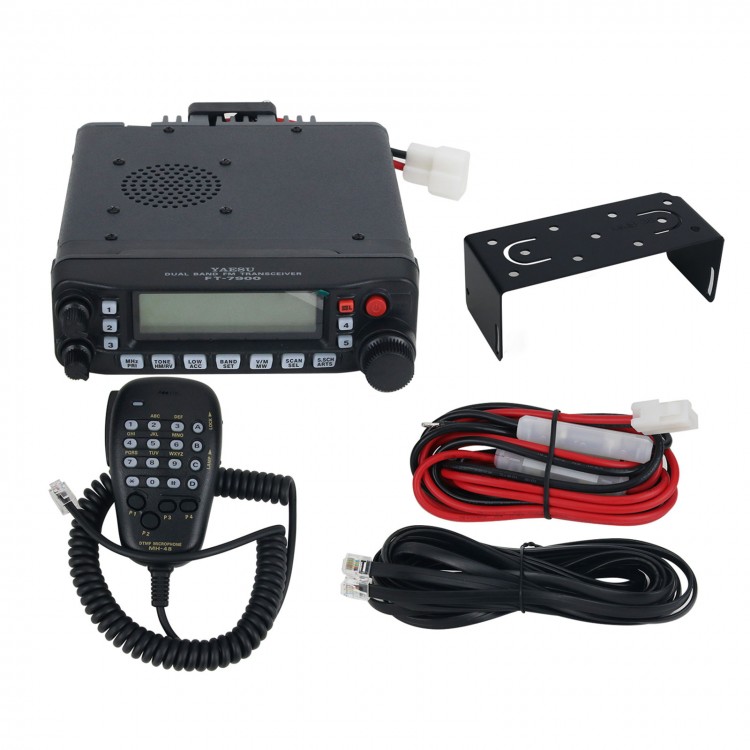

- 1 x Set of Dual Band Transceiver

Note:
- It comes without antenna, feeder line, clamp.
