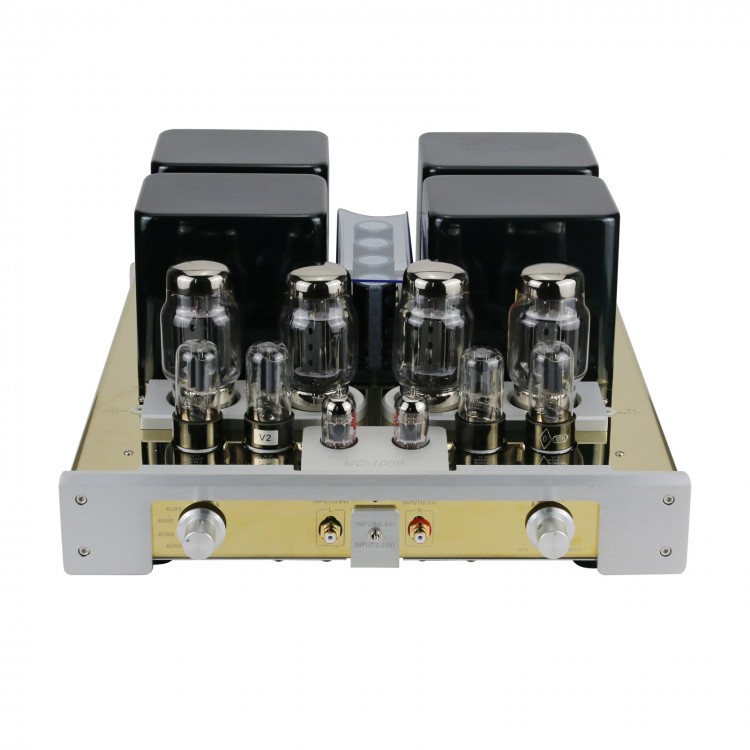

YAQIN MC-100B GB KT88 x4 Vacuum Tube Hi-end Integrated Power Amplifier 110v-240v

YAQIN MC-100B GB KT88 x4 Vacuum Tube Hi-end Integrated Power Amplifier 110v-240v

As the shipping weight of this product is heavy,we will ship the item to corresponding oversea warehouse via Boat shipping and disptach the goods form USA,DE (support most EU country).BE.UK.AU warehouse accordingly.
Please kindly consult us if you coountry is supported or not

Description:
- CLASS-A - 100% New Yaqin MC-100B Integrated Amplifier
- Awesome and powerful 60 watt per channel dual mono power amp.
- Two separate amps with two separate power supplies on one chassis.
- Beautiful styling with bright copper lacquered chassis and huge potted transformers with curved aluminum tube cage
- Front panel inputs to bypass internal preamp so you can use your own preamp or source directly to power amps
- Switchable from 60 watts Ultra linear to 30 watts pure triode mode
- Very powerful amplifier that will drive any speaker with authority. Great frequency extension and bass control.


Features:
1.User-selected amplifier modes, UT (Ultra linear) mode provides greater output power and TR (Triode) mode does smooth and rich sound.
2.Class A push-pull power amplifier to reduce distortion;
3.User-selected pure post-stage and integrated modes;
4.Utilizes the audiophile capacitors and high quality metal precision resistors dedicated for audio frequency;
5.Output transformers manufactured with Japanese silicon steel sheet and oxygen-free enameled copper and high quality lacquer, which offer a wide dynamic range at full rated output;
6.Independent power supply for each channel.
7.Beautiful heavy duty chassis (stainless steel top, steel buttom) and aluminum panel and bezels;
8.Provides user adjustable bias, test points and tool to refine bias of the output tubes.


Technical Specifications
- Input Power: 110v-240v AVAILABLE
- Tubes: KT88-98 × 4 (Output Tubes)
             6N8P × 4 (Drivers and Cathode followers)
             12AX7B × 2 (Voltage amplifiers)

Maximum Output:
- 30W per channel (8Ω and Triode Mode)
- 60W per channel (8Ω and Ultra linear Mode)
- Output Jacks: Two channels with two groups gold plated jacks
- Output Impedance: 4Ω and 8Ω
- Input Jacks: Gold plated isolated RCA jacks, 4 groups (CD, DVD, Tape, and Tuner) on rear,
                   and 1 group on front as the input of post-stage mode

Input Sensitivity:
         0.25V in integrated mode (CD, DVD, and Tuner)
          0.6V in pure post-stage mode (Front input connectors)

- Distortion of Harmonic Wave: ≤1.5%
- Frequency Response: 5Hz ~ 80KHz (-2dB
- Signal-to-Noise Ratio: 90dB (A weight)
- Supply Voltage: AC 115V, 60Hz
- Power Consumption: 250W
- Net Weight: 28kg
- Shipping Weight: 30kg
- Shipping Dimension: 60cm x 52cm x 36cm


Packages:
- A YAQIN MC-100B unit
- A Power cable
- A Manual
- Hex screw drivers to mount the cover cage and to adjust bias
