YD-ESP32-S3-EYE AIoT AI Development Board OV2640 Camera MEMS Microphone LCD Screen ESP-WHO Facial Recognition

YD-ESP32-S3-EYE AIoT AI Development Board OV2640 Camera MEMS Microphone LCD Screen ESP-WHO Facial Recognition

Description:
- ESP32-S3-EYE is a small AI (artificial intelligence) development board equipped with ESP32-S3 module and for Espressif AI development framework ESP-WHO. For Espressif's ESP32-S3-EYE development board can be equipped with a 2-megapixel camera, an LCD display, and a microphone for applications such as image recognition and audio processing. The board is also equipped with 8MB eight-line PSRAM and 8MB flash, with ample storage space. In addition, the ESP32-S3 chip also provides functions such as WiFi image transmission and USB port debugging for the development board. You can use ESP-WHO to develop various AloT (Artificial Intelligence Internet of Things) applications, such as smart doorbells, surveillance systems, face recognition punch-in machines, etc.

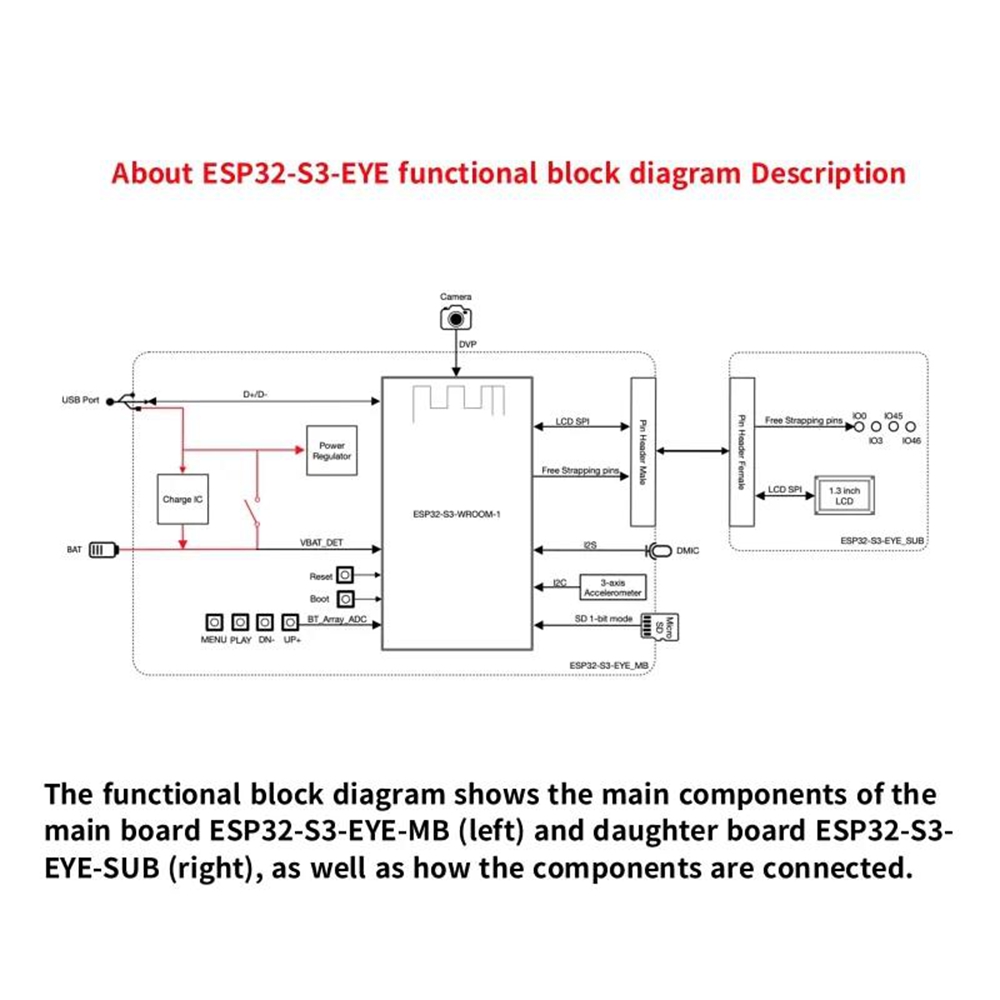

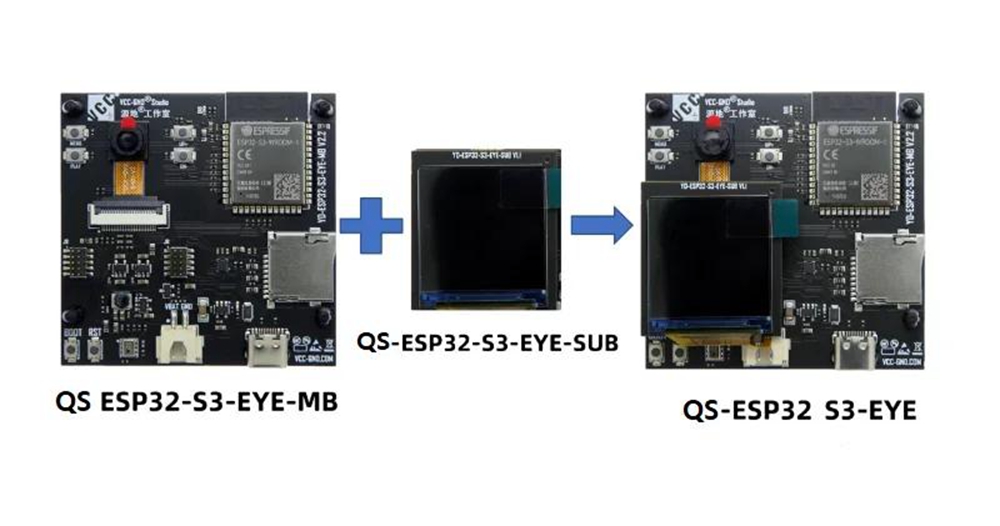

- The ESP32-S3-EYE development board consists of two parts: the main board ESP32-S3-EYE-MB, equipped with the ESP32-S3-WROOM-1 module, camera, SD card slot, digital microphone, USB interface and function buttons, etc.; the daughter board ESP32-S3-EYE-SUB, configure LCD display, etc. The main board and daughter board are connected by pin headers.

Specification:
- Built-in chip: ESP32-S3
- PSRAM: 8 MB Octal PSRAM
- Flash: 8 MB flash
- LCD display: Yes
- Acceleration sensor: Yes
- Optional power supply: external lithium battery (not included)
- USB to UART bridge: not required, provided by the ESP32-S3 USB Serial/JTAG interface
- Antenna connector: not required, provided by ESP32-S3-WROOM-1 module

Documentation:
- https://wiki.icbbuy.com/doku.php?spm=a2g0o.detail.1000023.1.6716SZHRSZHRTI&id=developmentboard:icb-esp32-eye

Package Included:
- 1 x Development Board

Note:
- Battery and USB cable is not included.
- This product pins are not welded, please contact our customer service before payment if you need to weld pins.
