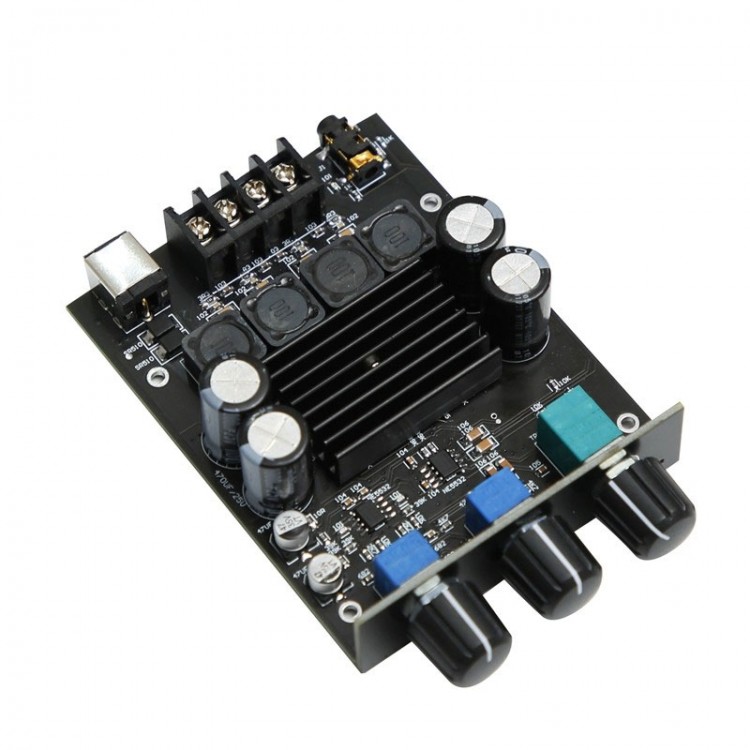

YJ-100C TPA3116 Dual Core Digital Class D Power Amplifier Board with Treble and Bass Adjustment
Features:

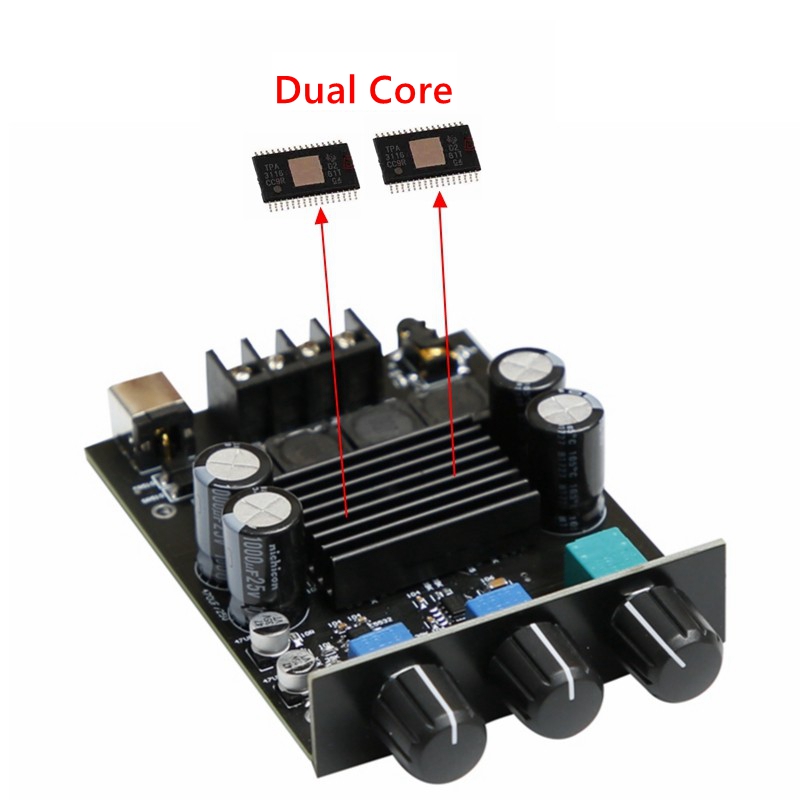

- It adopts original TPA31136 x 2, NE5532
- 4 x 1000UF/25V electrolytic capacitors for power filtering
- The PCB is made of 1.6mm thick double-sided material, with a thickness of 2.0A copper and a full process of tin spraying, ensuring good performance in passing large and small currents
- Adopting a shielded power amplifier dedicated inductor to ensure clear and powerful sound.
- High quality fully sealed potentiometer is adopted, which has better dust-proof effect and is more durable.
Specification:
- Working method: class D
- Static current: 50mA
- Working efficiency: 90%
- Rated output power: 2 x 100W
- Frequency response: 20Hz - 20KHz
- Working voltage: DC 18V - DC 24V
Package Included:
- 1 x Power Amplifier Board
