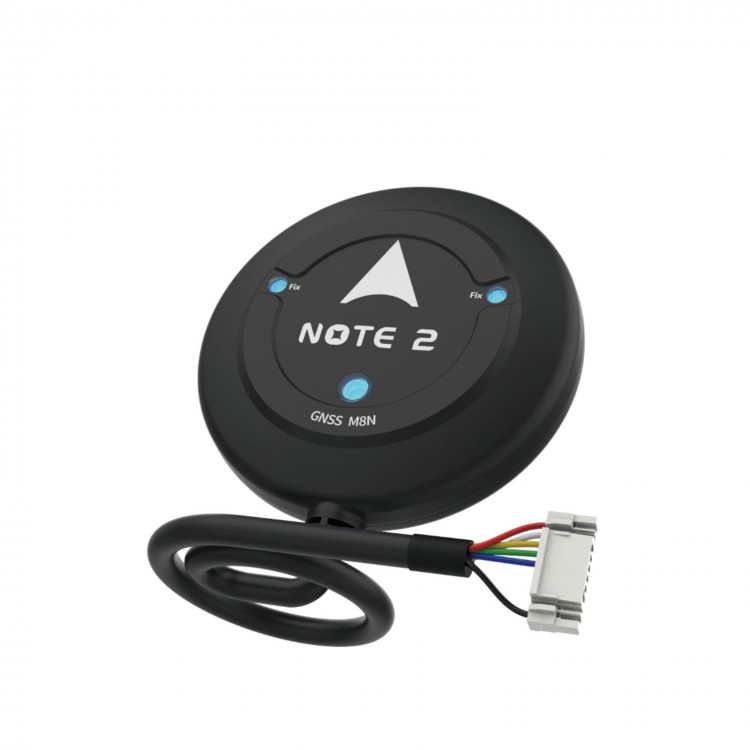

YJUAV NOTE 2 GPS-6Pin Navigation and Positioning UAV Drones GPS Module Based on GNSS M8N for Opensource APM/PX4

YJUAV NOTE 2 GPS-6Pin Navigation and Positioning UAV Drones GPS Module Based on GNSS M8N for Opensource APM/PX4

Description:
- NOTE 2 is a universal GNSS module based on the u-blox M8N module. It has the advantages of small size, high sensitivity, and strong search signal.

Features:
- Integrated u-blox NEO-M8N positioning module.
- Support concurrent two star systems (GPS + GLONASS).
- Built in electronic compass sensor chip, capable of measuring device magnetic heading.
- Built in RGB three color LED lights, capable of indicating the status information of the flight controller.
- Firmware support for Ardupilot and PX4.
- Supports hot start.

Specification:
- GNSS chip module: u-blox NEO-M8N
- GNSS frequency band: GPS L1C/A, SBAS L1C/A, QZSS L1C/A, QZSS L1 SAIF, GLONASS L1OF, BeiDou B1I, Galileo E1B/C
- Satellite galaxy: support concurrent two star systems (GPS + GLONASS)
- Star searching number: 20+
- Opensource flight control: support for Ardupilot/PX4
- Working voltage: 4.5 - 5.5V
- Working current: 50mA (5V working voltage)
- Horizontal positioning precision: 2.5m
- GNSS chip communication: serial port communication, NMEA protocol or UBLOX protocol
- RGB driving chip: NCP5623, I2C interface
- Compass sensor: IST8310, I2C interface
- Connector type: JST GH1.25 6Pin/10Pin
- Cold start time: 26s
- Hot start time: 1s
- Navigation refresh frequency: 5Hz (default), 10Hz (maximum)
- Working temperature: -20℃ to +60℃
- Outgoing line length: 25cm
- Size: diameter 60mm, height 16mm
- Net weight: 42.2g

Package Included:
- 1 x GPS Module
