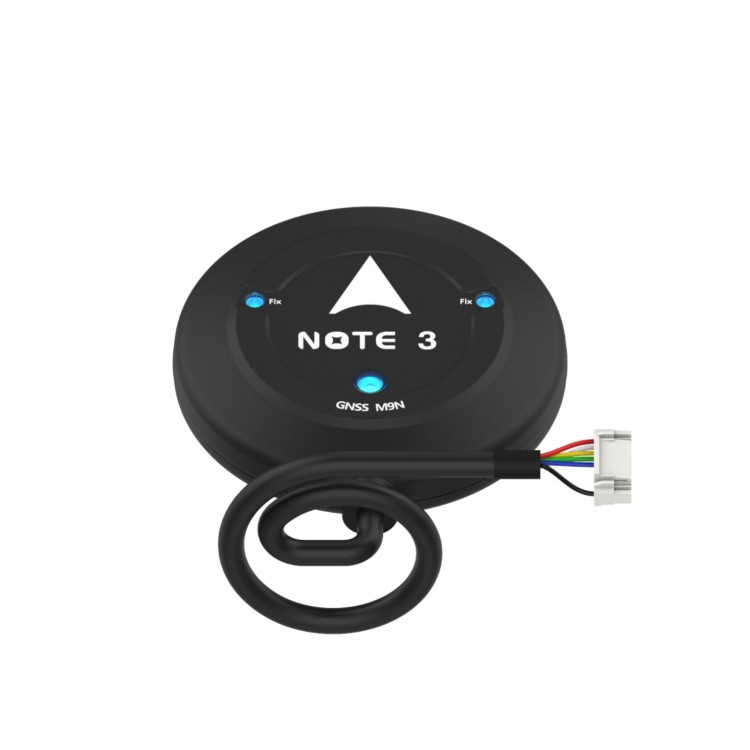

YJUAV NOTE 3 GPS-10Pin Navigation and Positioning UAV Drones GPS Module Based on GNSS M9N for Opensource APM/PX4
Description:
- NOTE 3 is a universal GNSS module based on the u-blox M9N module, which simultaneously receives signals from four GNSS systems and has a stable search volume of 32+ stars. It has the advantages of small size, high sensitivity, and strong search signal.
Features:
- Internally integrated u-blox NEO-M9N module, with stronger star search and positioning capabilities.
- Simultaneously receive signals from four GNSS systems (GPS + QZSS/SBAS Galileo, GLONASS, BeiDou).
- Component selection is based on industrial standards, and the module supports operating temperatures ranging from -40 °C to 85 °C.
- Built-in electronic compass sensor chip, capable of measuring device magnetic heading.
- Built-in RGB three color LED lights, capable of indicating the status information of the flight controller.
- Firmware support for Ardupilot and PX4.
- Supports hot start.
Specification:
- GNSS chip module: u-blox NEO-M9N
- GNSS frequency band: GPS L1 C/A, QZSS L1 C/A/S, GLONASS L10F BeiDou B1I, Galileo E1B/C SBAS L1 C/A: WAAS, EGNOS, MSAS, GAGAN
- Satellite galaxy: support concurrent four star systems (GPS + QZSS/SBAS, Galileo, GLONASS, BeiDou)
- Star searching number: 32+
- Opensource flight control: support for Ardupilot/PX4
- Working voltage: 4.5 - 5.5V
- Working current: 60mA (5V working voltage)
- Horizontal positioning precision: 1.5m
- Speed measuring precision: 0.05m/s
- GNSS chip communication: serial port communication, NMEA protocol or UBLOX protocol
- RGB driving chip: NCP5623, I2C interface
- Compass sensor: IST8310, I2C interface
- Connector type: JST GH1.25 6Pin/10Pin
- Cold start time: 24s
- Hot start time: 2s
- Navigation refresh frequency: 25Hz (maximum)
- GNSS antenna: imported high gain ceramic antenna, 5.5dBi
- Anti-interference characteristic: professional filtering amplification circuit design
- Working temperature: -40℃ to +85℃
- Outgoing line length: 25cm
- Size: diameter 60mm, height 16mm
- Net weight: 46.9g
Package Included:
- 1 x GPS Module
