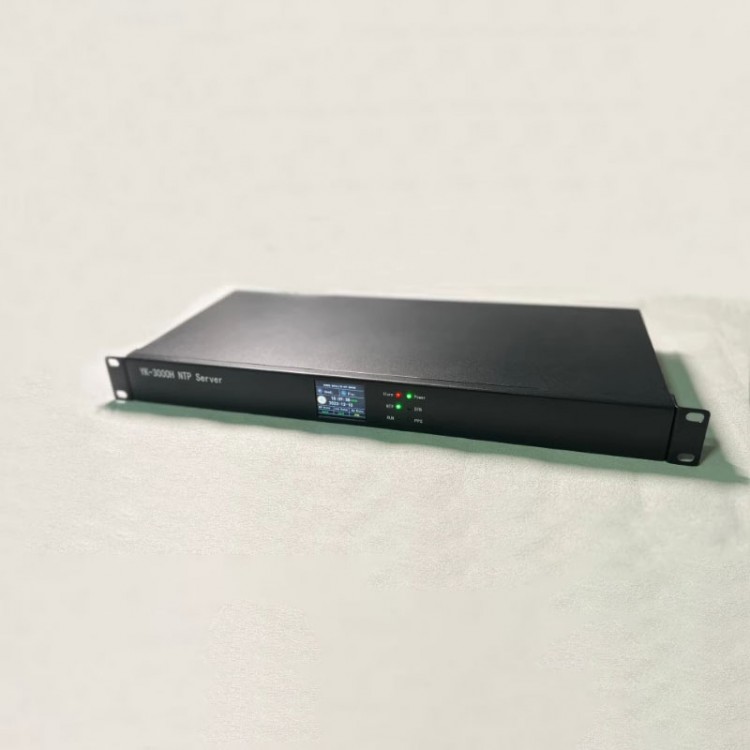

YK-3000H NTP Server Network Time Server w/ 1U Chassis (4 Network Ports + 10-meter Portable Antenna)

YK-3000H NTP Server Network Time Server w/ 1U Chassis (4 Network Ports + 10-meter Portable Antenna)

Description:
YK-3000H NTP Server can provide high-precision and high-reliability time synchronization services for scenarios that require high-precision time services, such as power systems, automation systems, telecommunication systems, transportation systems and security monitoring. It can also receive satellite (GPS and Beidou) time signals and provide NTP time services.

Features:
* Using a multi-mode GNSS timing module, it can receive multi-system satellites. The response is fast and it can receive satellite time signals at a fast speed.
* Using AC220V power supply, it can adapt to different power supply occasions.
* Microsecond accuracy: The error between the output of the second pulse's accurate edge and the edge of the international standard time is less than 0.5us.
* A variety of time format output modules can meet different design needs.
* All signal outputs are photoelectically isolated, with strong anti-interference ability.
* Rack-mounted structure: 1U standard chassis makes it easy to install and use.

Available Interface Types:
* NTP network port: 1-4 network ports are optional
* Time and date message serial port (RS485): 2-way

Basic Parameters:
1. Environmental Conditions:
Normal working conditions:
* Ambient temperature: -5°C to +45°C
* Relative humidity: 5%~95% (no condensation and no freezing inside the device)
* Atmospheric pressure: 70kPa~106kPa

2. Electrical Parameters:
* Power supply: AC 220V

3. Reliability:
* Mean time between failures (MTBF): It should not be less than 25000h under normal use conditions.

Technical Parameters:
GPS / Beidou:
* Cold start first acquisition time: ≤ 2 seconds
* Re-acquisition time after loss of lock: ≤ 1 second
* Automatic positioning time: 1 minute
* Automatic timing time: 1 minute
* Positioning data update rate: Selectable from 1Hz, 2Hz, 4Hz, 8Hz and 16Hz
* Positioning accuracy: less than 50m (1σ)
* Timing accuracy: ± 1us
* Receiving sensitivity: -157.6dBm

Device interface:
* Flexible configuration according to actual application

Internet:
* Interface specifications: 10Base-T/100Base-TX self-adaptive, MDI/MDI-X automatic polarity reversal and IEEE802.3
* Protocols: ARP, ICMP, UDP, NTP and SNTP

Serial port:
* Serial port parameters: baud rate: 300bps~115200bps can be set. Data bits, check bits, and stop bits can be set
* RS485 bus mode: signal: TA, TB can drive up to 128 loads per channel

Isolation protection:
* Electromagnetic isolation: Ethernet port 1.5kV
* Surge protection: 600W for each output line

Power supply:
* AC 220V

Environmental parameters:
* Operating temperature: -10°C to +70°C; humidity: 10%~90% (no condensation)
* Storage temperature: -40°C to +85°C; humidity: 5%~95% (no condensation)

MTBF:
* >30,000 hours

Interface Transmission Distance:
1. Network Cable:
* It is used for high-quality transmission of NTP clock signals indoors, and the transmission distance is ≤ 100m.

2. Shielded Control Cable:
* It is used to transmit EIA RS-485 at a distance of ≤ 50m.

Supported Terminal Devices:
* YK-3000H is suitable for Hikvision, Uniview, Dahua, TP-LINK, Tiandy and Infinova.
* It is suitable for all terminal devices that support NTP protocol timing.

Package Included:
* 1 x NTP Server
* 1 x 10m Antenna

Packaging Details:
* Weight: 3.5kg
