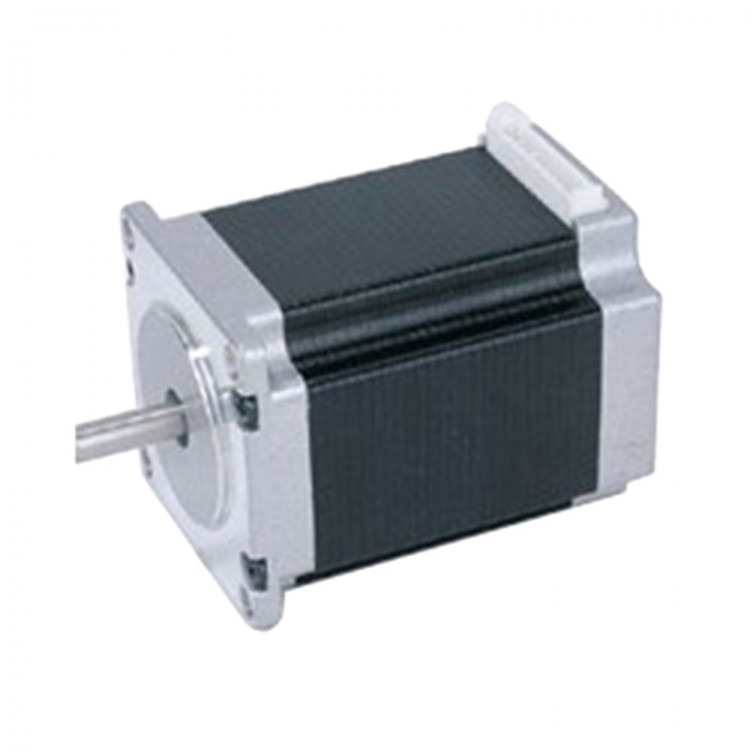

YK86HB118-06A 86 2-Phase 4.2A 8.7N.m Reluctance Synchronous Stepper Motor for CNC
Parameters:
- Step ange: 1.8 degree
- Body Length: 118mm
- Holding torque: 8.7N.m
- Current: 4.2A
- Resistance: 0.9Ohm
- Inductance: 6.0mH
- Rotor inertia g·cm²: 2700
- Weight: 3.8kg
- Motor Leads: 8
- Stepping accuracy: -+5%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
Package included:
- 1 x Stepper Motor
