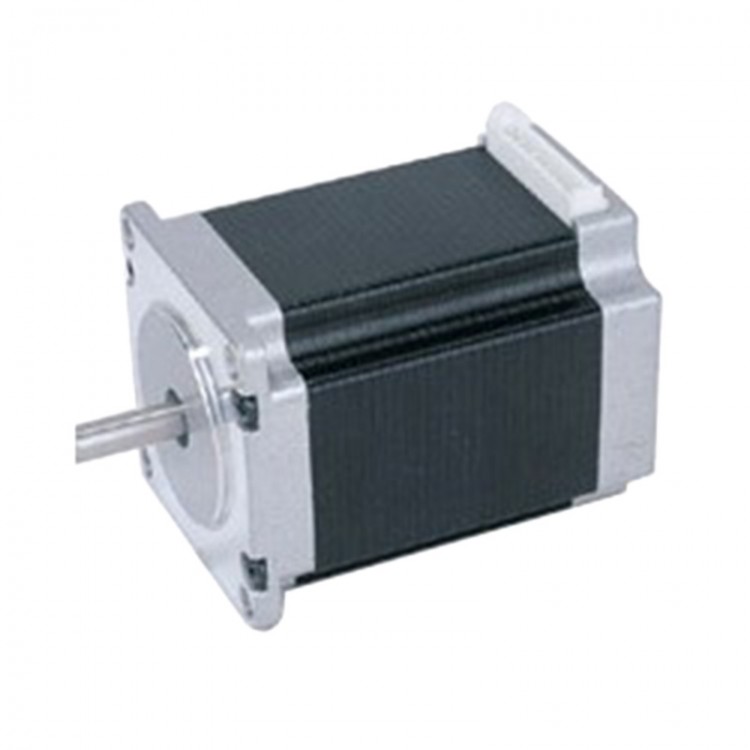

YK86HB65-04A 86 2-Phase 2.8A 3.4N.m Reluctance Synchronous Stepper Motor for CNC
Parameters:
- Step ange: 1.8 degree
- Body Length: 65mm
- Holding torque: 3.4N.m
- Current: 2.8A
- Resistance: 1.4Ohm
- Inductance: 3.9mH
- Rotor inertia g·cm²: 1000
- Weight: 1.7kg
- Motor Leads: 8
- Stepping accuracy: -+5%
- Temperature: 80 deg C Max.
- Environment temperature: -20~50 deg C
- Insulation resistance: 100MOhm Min.500V DC
- Voltage: 500V AC 1minute
- Radial clearance: 0.02mm (Max.) Loading 450g
- Rotor clearance: 0.08mm (Max.) Loading 450g
Package included:
- 1 x Stepper Motor
