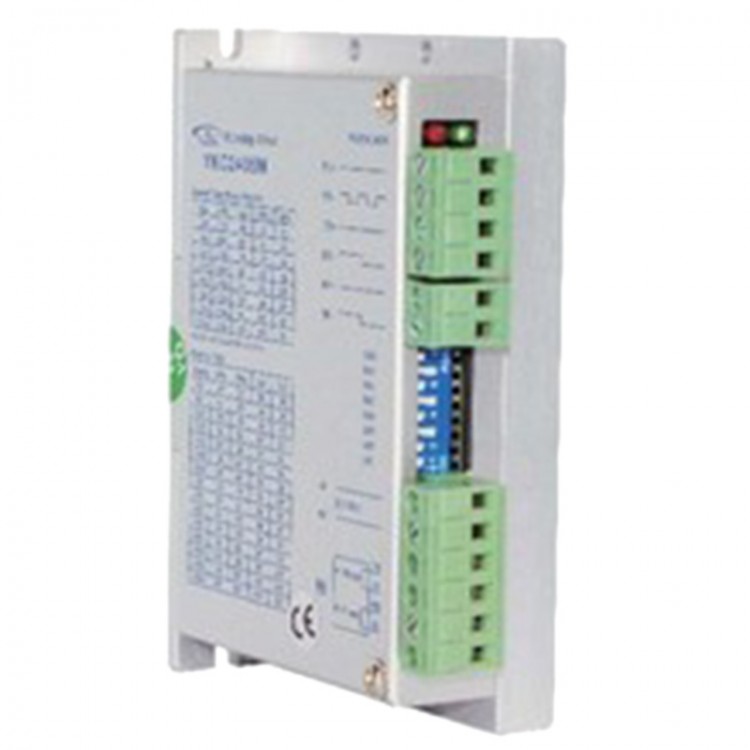

YKC2405M Stepper Motor Driver Two-Phase Microstep Stepping Driver CNC Router
Description:
YKC2405M is a constant torque driver with microstep, voltage range from DC20-50V, single power input. It can match 6 leads or 8 leads two phase hybrid step motors whose rated current under 3.0A, flange size range from 42-57mm. Owe to bipolar constant current chopping circuit, the motor can run smoothly and hardly has any noise; Rising the voltage can greatly improve high speed performance and output torque of the motor. Once the pulse stops for 100ms, the phase current will automatically cut by half, which can reduce chances of overheat. Users can operate the driver with microstep in low speed occasion. The upmost microstep can be set to 128X.
Feature:
- High Performance
- Provide 15 kinds microstep selection, upmost microstep can be set to 128x.
- Special control circuit, greatly reduce noise, increase steadines
- Upmost response frequence amounts to 200kpps.
- Once the pulse stops for 100ms, phase current automatically cut by half
- Can match two phase hybrid step motors whose rated current under 4.0A
- Photo coupler isolated input/output
- Drive current from 0.7A/phase to 3.0A/phase
- Single power input, voltage range from DC20-50V
- Protection circuit- overcurrent
- Dimension: 118x72x33(mm3), Net weight :0.2kg
Package included:
- 1 x Stepper Motor Driver
