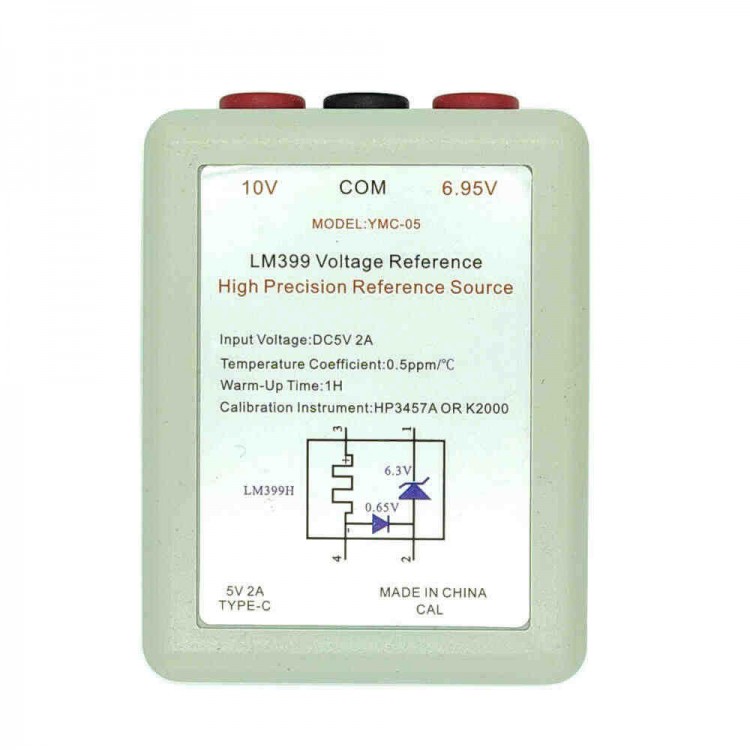

YMC-05 (LM399H) LM399 5 ½ or 6 ½ Digit High Precision Voltage Reference for Multimeter Calibration
Description:
The voltage standard uses the LM399H for Linear Technology as the reference element, with two sets of voltage outputs 6.95V/10V. 6.95V is the direct output of LM399H. 10V is 6.95V outputted to 10V after being boosted by a precision op amp.
The LM399H reference IC is used as a reference IC in many 6 ½ digit multimeters and is a constant temperature reference. Compared with 4 ½ digit references such as AD584 and BQ588, its temperature coefficient is much smaller, and basically does not exceed 0.5PPM/°C. It can be used as a 5 ½ digit or 6 ½ digit voltage reference.
Features:
* USB 5V power supply: convenient for power supply
* Small size and light weight: convenient for transfer between reference branches
* <0.5PPM/°C for 6.95V; <1PPM/°C for 10V
* Output adopts 4mm standard safety banana socket
* Maximum noise level: 7uVRMS
* Product size: 93x70x28mm
* Net weight: 84g
Electrical Performance Parameters:
* Power supply voltage: 5V 1A
* Power supply interface: Type-C
* 6 ½ digit precision warm-up time: more than 1 hour
* Output voltage: 6.95V/10V
* Voltage calibration instrument: DMM7510 7 ½ digit multimeter for KEITHELY
Package Included:
* 1 x Voltage Reference Standard
Packaging Details:
* Weight: 0.3kg
