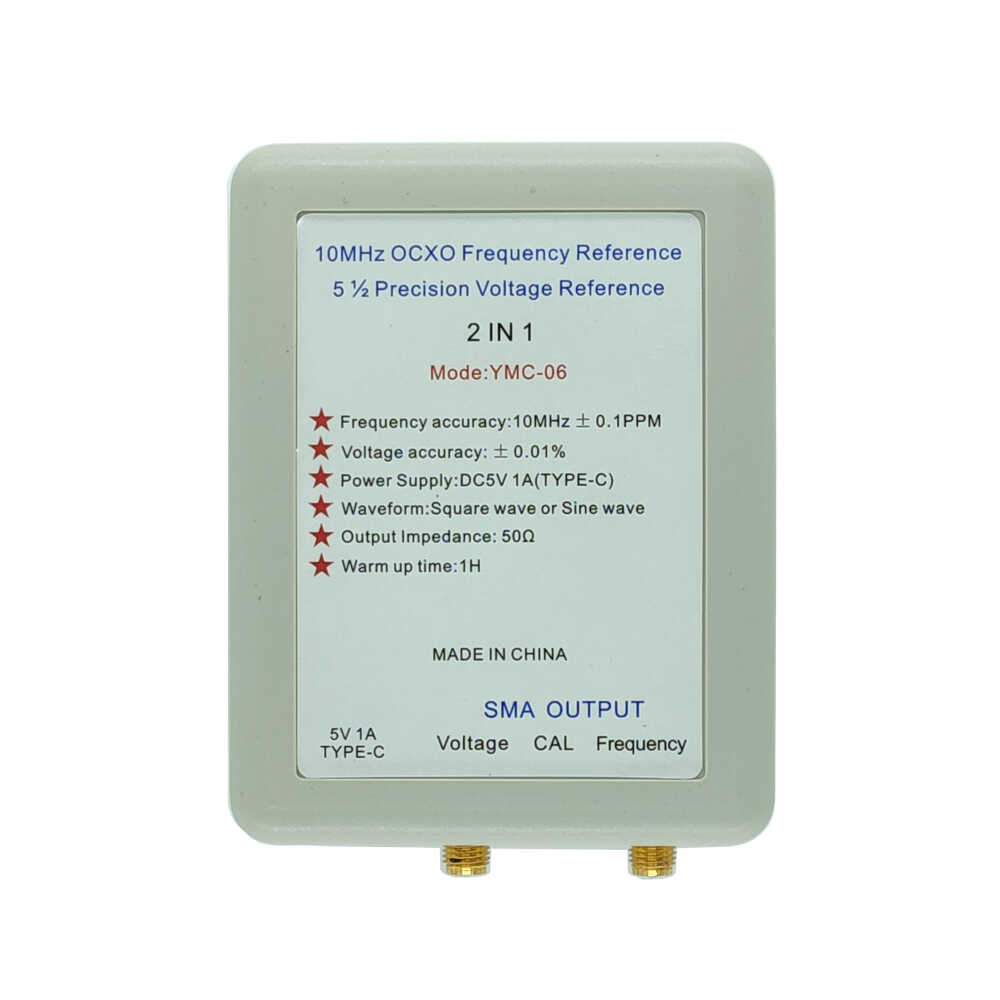

YMC-06 2-in-1 10MHz OCXO Frequency Reference & 5 ½ Precision Voltage Reference (Square Wave)

YMC-06 integrates 10MHz frequency reference & 5 ½ voltage reference. It uses 10MHz OCXO as 10MHz frequency reference source and REF50XX chip (for TI) as 5 ½ voltage reference source. It also uses the constant temperature characteristics of OCXO to make a constant temperature cavity, providing a constant temperature environment of about 45℃ for the REF50XX reference chip. In this way, the accuracy of the REF50XX reference chip will be quite high. In addition, it uses the reference voltage of REF50XX as the control voltage of OCXO to control the 10MHz frequency. The two control each other to get a smaller error.

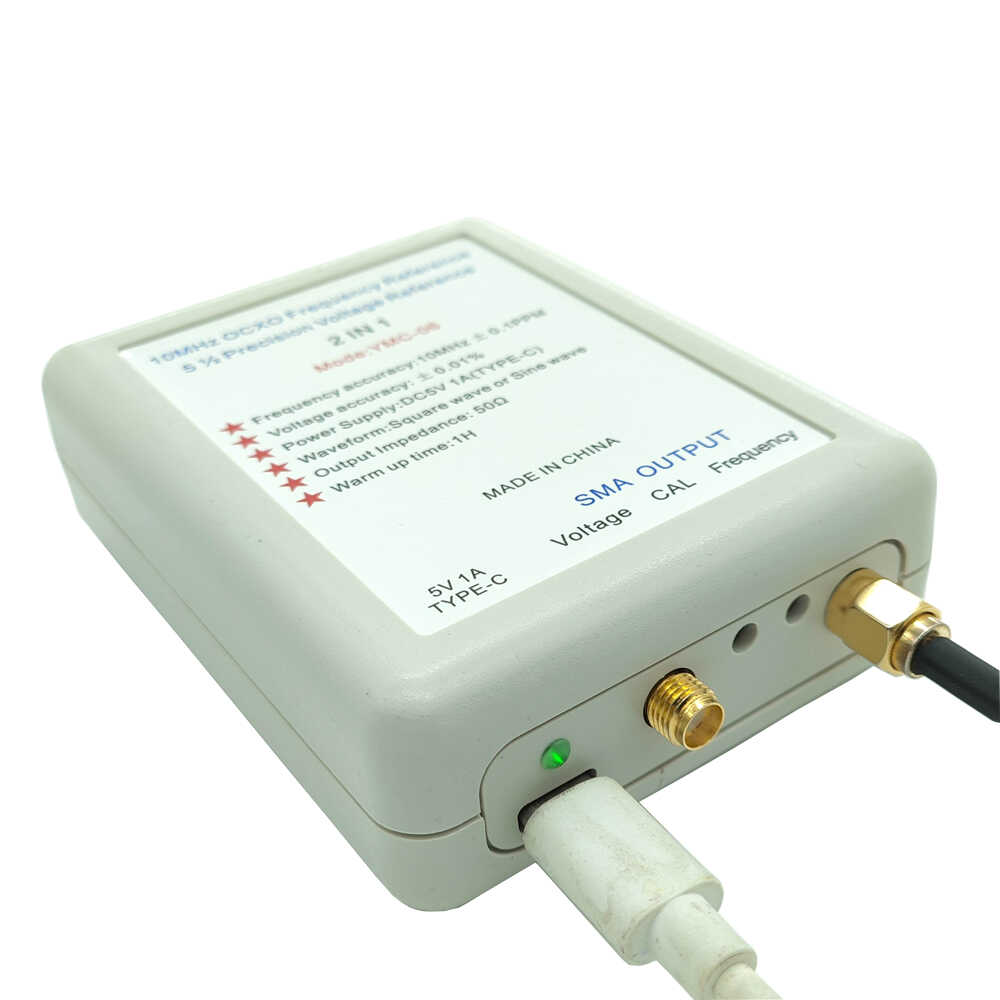

* Handheld, small size and light weight, with green working indicator light

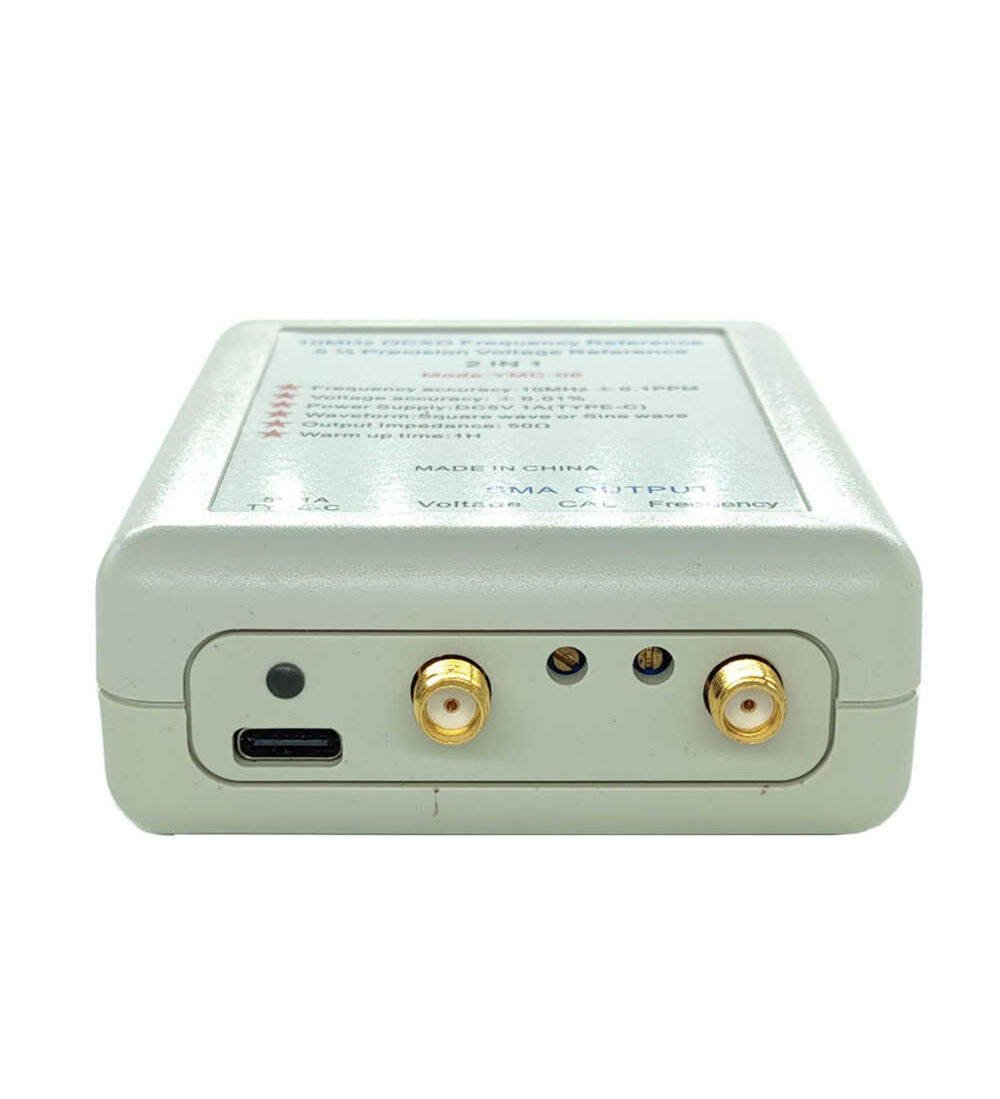

* USB TYPE-C interface supports 5V 1A power supply. Mobile phone chargers and power banks can be used to supply power

* OCXO provides 10MHz frequency source. Its accuracy is very high

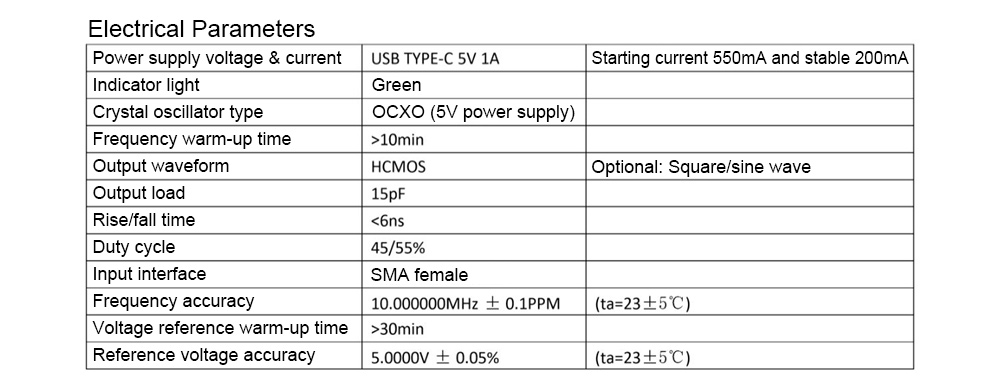

* Frequency accuracy: 10.000000MHz ± 0.1PPM (ta=23±5°C)

* Reference voltage accuracy: 5.0000V ± 0.05% (ta=23±5°C)

* Used as a reference for instruments such as sound systems, decoders, shortwave radios, frequency meters and signal sources

* Used as an external reference for instrumentation or to replace the reference source inside audio equipment

* Provides a 5.0000V 5 ½ reference voltage source and a 10.000000MHz frequency reference source

* Use HP5384A frequency meter. Debug the frequency to 10.00000000MHz, accurate to 0.01Hz (ta=23℃, RA=60%).

* Use K2000 multimeter for voltage and debug the voltage to 5.00000V, accurate to 6½ digit (ta=23°C, RA=60%).

* Product size: 95x70x28mm

* Net weight: 81g

* 1 x Frequency Reference & Voltage Reference

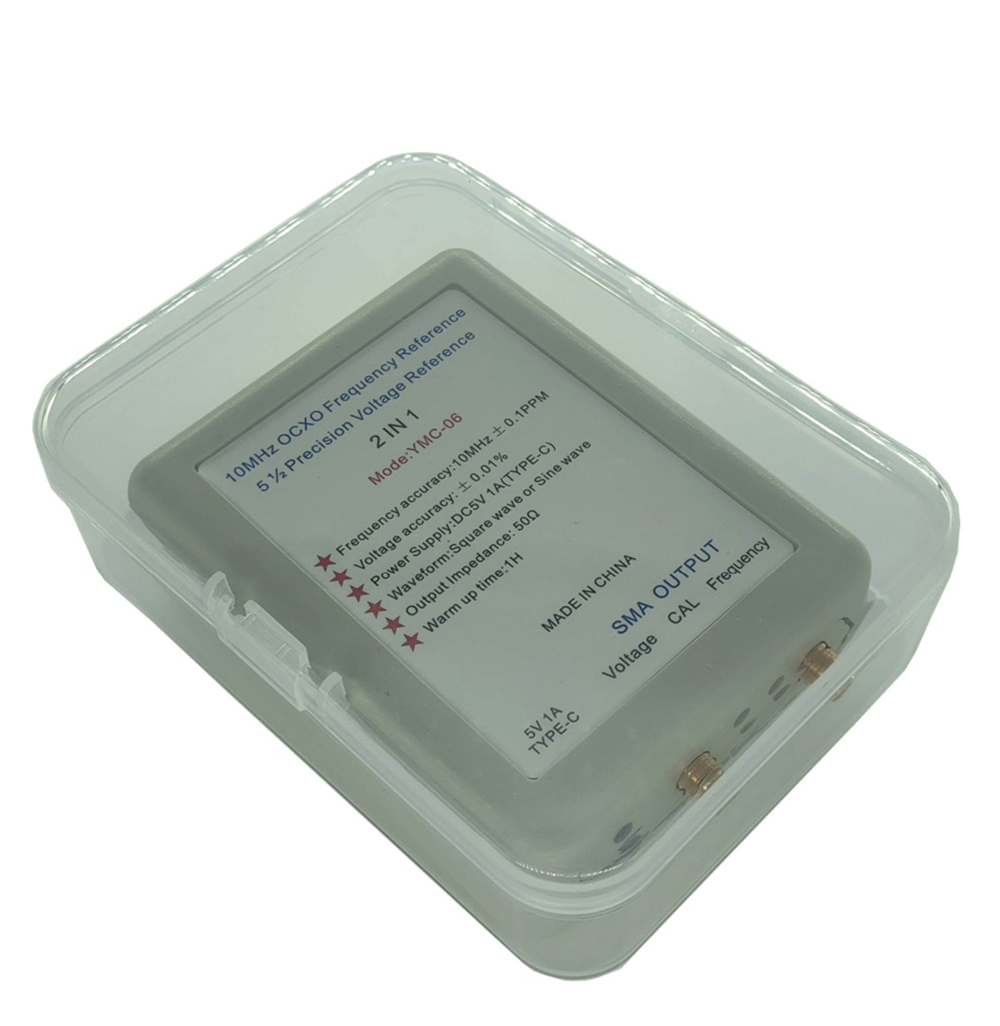

* 1 x Storage Box

* Weight: 0.25kg

* Packing size: 155x105x42mm
