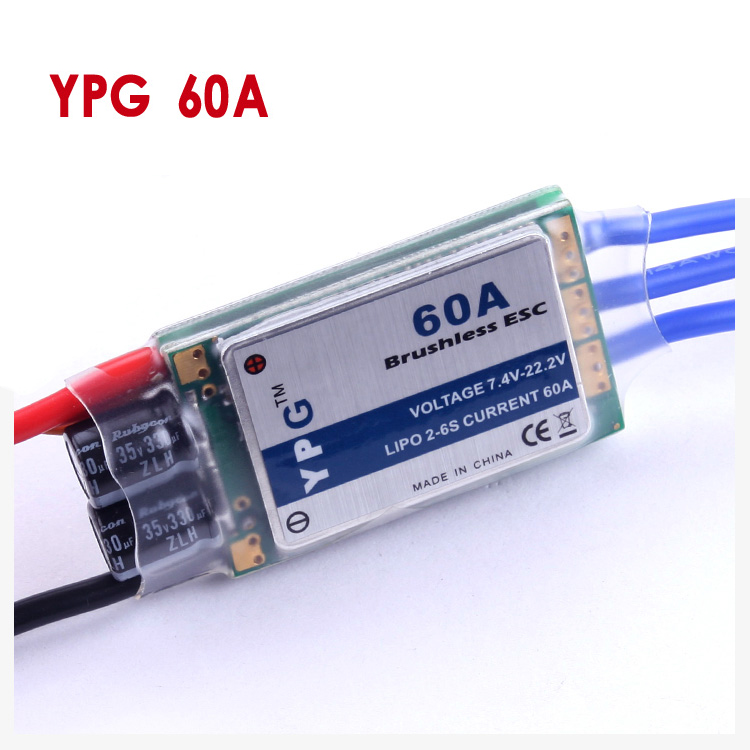

YPG SBEC 60A 2~6S Brushless Speed Controller ESC High Quality For RC Model Airplane

YPG SBEC 60A 2~6S Brushless Speed Controller ESC High Quality For RC Model Airplane

Description:
- Powerful 5.5V/6A Switching BEC
- Optional programming card for convenient setup
- Super fine throttle resolution provides first-rate and highly accurate linearity
- Super smooth adjustable start-up mode
- Constant RPM mode (governor mode)
- Adjustable F3A brake.
- 3 steps adjustable normal EMF brake
- High anti-interference capability
- Low voltage cut-off protection with automatic adjustment for NiCd/NiMH/Li-Ion/LiPo/LiFePO4
- Soft cut-off option at low voltage, slows motor RPM gradual rather than hard cutoff (LVC)
- Low voltage cut-off can be disabled
- Variable cut-off voltage / cell
- Active free-wheeling circuit allows for unlimited "partial load" capability
- LED status display
- Adjustable motor timing from 0° to 30°
- Blocked rotation protection (senses a jammed motor and stops motor rotation)
- Motor reversing from ESC (no need to change ESC/motor wires)
- Over-temperature protection and overload alarm
- Throttle signal lose protection. If the signal is lost for 3 seconds, the power will automatically cut-off
- Safe power-on. (Motor will not start until throttle is returned to lowest position)
- This ESC is compatible with both helicopter and airplane models

Specifications:
- Max Cont Current: 60A
- Max Burst Current: 80A for 10 seconds
- Input Voltage: 2-6 cells li-XX or 6-16 Ni-MH/Ni-Cd battery
- BEC: 5.5V/6A Switching BEC
- PWM: 8~16 KHz
- Max RPM: 240,000rpm for 2 Poles Brushless Motor
- PCB Size: 50x32x12mm
- N.W.: 63g (including wires)

Package Included:
- 1 x YPG SBEC 60A
