YPSDZ-0550 Lithium Battery Capacity Tester Battery Discharge Capacity Tester Discharge Equalization

YPSDZ-0550 Lithium Battery Capacity Tester Battery Discharge Capacity Tester Discharge Equalization

Description:
YPSDZ-0550 can be used to determine the capacity of cells within 1-5V. It has anti-reverse connection and high temperature protection, its maximum charge/discharge current can reach 50A, and the MOSFET constant current discharge volume is very small.

Three operating modes: single charge and single discharge modes are suitable for the EV maintenance industry to quickly charge or discharge individual cells of battery packs. The cycle mode can be used to determine the battery capacity of individual cells in a rapid way before grouping.

It is simple to operate, and the charging and discharging curves can be viewed without connecting to a computer, which is convenient and accurate to judge the quality of the battery. The product has now been updated to the fourth generation, and each device will undergo 3 rounds of full load cycle aging test before selling, so the stability of the tester is very reliable and please use it with confidence. It is suitable for schools, scientific research institutions, car maintenance, training institutions, etc.

Features:
- Single cell capacity tester
- It can be used to determine battery capacity and discharge equalization is enabled
- Universal type for ternary lithium, lithium iron phosphate, manganese/cobalt/lithium titanate and polymer cells
- 50A fast charge and discharge cycle test

Specifications:
- Model number: YPSDZ-0550, with Chinese/English menu
- Charging range: 1-5V adjustable and 0.5-50A adjustable
- Discharge range: 1-5V adjustable and 0.5-50A adjustable
- Steps: charge/discharge/cycle 1-5 times
- Auxiliary function: discharge equalization
- Protection function: battery over-voltage / battery reverse connection / current runaway / over-temperature and other protection
- Calibration method: factory calibration + third-party sampling calibration
- Accuracy: Voltage ± 0.1% and current ± 0.1%, allowing authorized users to calibrate
- Heat dissipation: Cooling fan will be turned on at 40°C and protected at 80°C (please check and maintain the fan regularly)
- Optional voltage: 110V; 220V
- Working environment: 0-40°C ventilation. Not allow heat to accumulate around the tester
- Dimensions: 150 x 235 x 170mm/5.9 x 9.3 x 6.7" (WxDxH)
- Net weight: 2Kg/4.4Lb

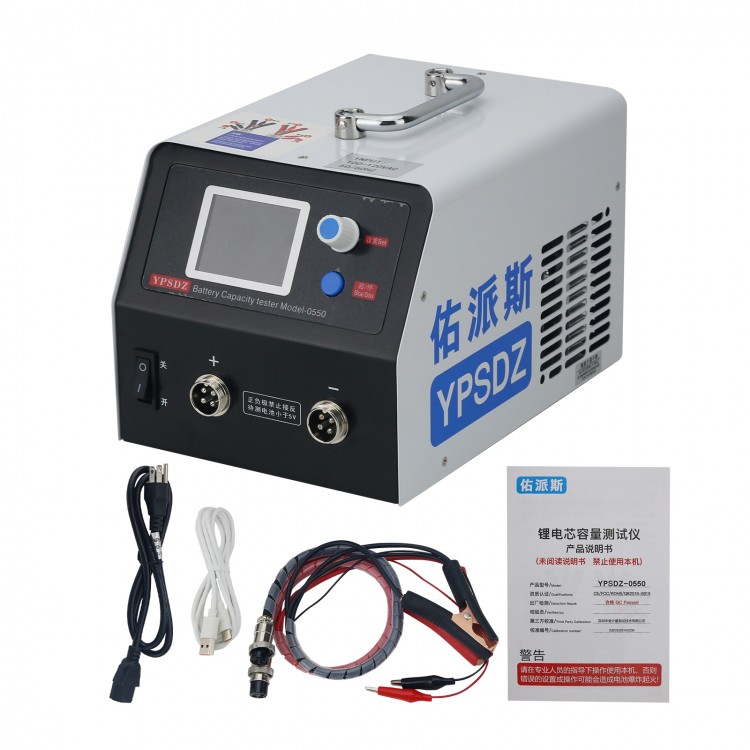

Package Included:
- 1 x Lithium Battery Capacity Tester
- 2 x Clip Cables
- 1 x Power Cable
