YR1035+ Lithium Battery Meter Battery Resistance Tester Range 100V for Electric Vehicle Group 18650
Features:
- Display internal resistance and voltage in a same display
- Large LCD display for easy reading
- High quality buttons make it comfortable to use
- Four-layer board is component-intensified for more stable performance
- PC transparent window protects its screen
- 2600mAh 18650 battery enables long standby time, not requiring external power source
- Portable to carry and easy to use
- Good precision and high sensitivity. It is a four-wire 1Khz AC sine battery internal resistance meter. Its maximum resolution of internal resistance is 0.00001Ω, and it can be used to measure resistance within 200.0Ω. The maximum voltage resolution is 0.00001V, and the voltage within ±99.999V can be measured. The minimum voltage of lithium battery that can be displayed is 0.0001V
- Support manual and automatic modes to adjust its range. Support bilingual switching between Chinese and English
Application:
It can be used for the sorting of single cells and the screening of battery packs. It can also be used for auxiliary maintenance of battery cars, electric vehicles, mobile computers, etc., as well as the measurement of standard precision resistance.
Fit 18650 batteries, common lead-acid batteries, lithium-ion batteries, lithium polymer batteries, lithium iron phosphate batteries, soft pack batteries, alkaline batteries, dry batteries, nickel-metal hydride batteries, nickel-cadmium batteries, button batteries and battery packs.
It can also be used for the measurement of four-wire standard precision resistance, as well as the auxiliary measurement of short wires and shunts.

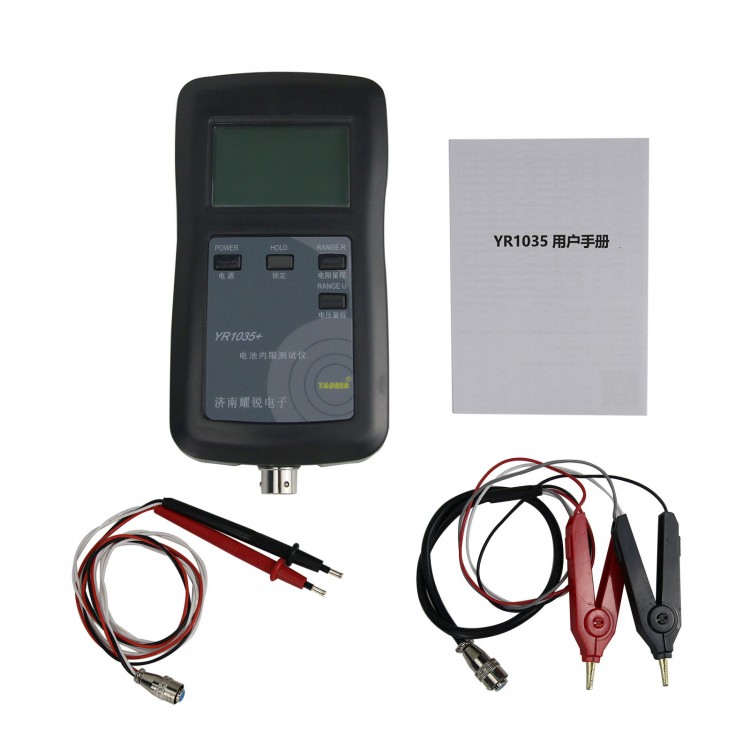

Package Included:
- 1 x YR1035+ Tester
- 1 x Set of Kelvin Clips
- 1 x Set of Probe Test Line
FAQ:
1. Can it measure AC voltage?
It is strictly forbidden to input AC or DC voltage higher than 100V.
2. What power is the machine powered by?
It has a built-in 18650 lithium battery. And a charger is not included. Users can use a charger for Android phone to supply power.
3. Why are the calibration and restore calibration options not available in the menu? Does this have any effect?
Calibration and restore calibration are factory modes. These two functions require professional equipment and instruments, and must be operated in accordance with the correct calibration method. In order to avoid improper operation by users, these two functions are not open to the outside world and do not affect the use.
