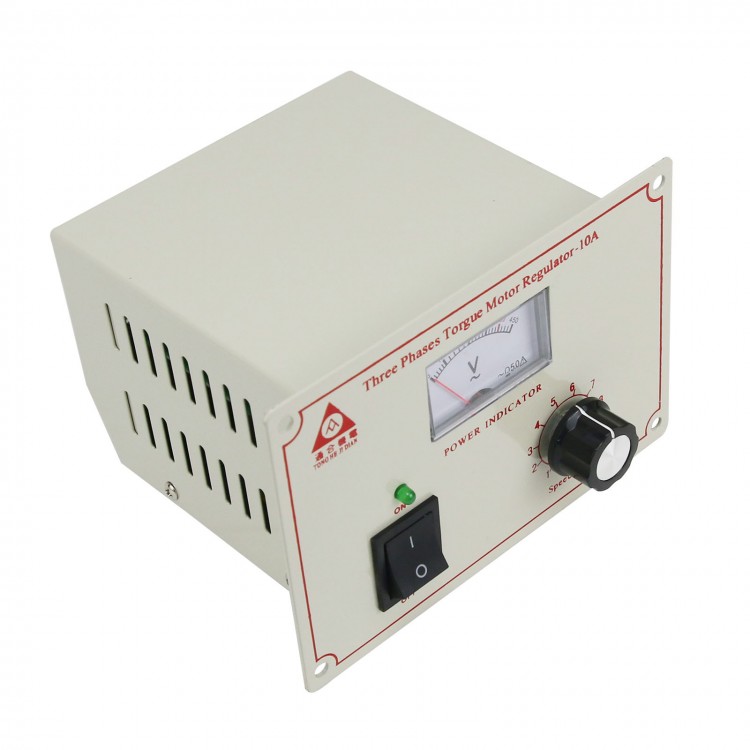

YTC-10A Three Phases Torque Motor Controller 380V Motor Speed Regulator Governor with Switch

YTC-10A Three Phases Torque Motor Controller 380V Motor Speed Regulator Governor with Switch

Description:
This controller is an advanced all-electronic control device specially designed to replace the three-phase auto transformer. It can work on resistive and inductance loads. It is widely used in metal machinery plastics, wires, cables, wire mesh, printing, paper making, boilers, lifting, machine tools, general machinery and other industries in the winding equipment.

Compared with the three-phase auto transformer, the controller has a small size, electronic adjustment, wear-resistant contact, balanced voltage and excellent starting efficiency and low power consumption. It features long service life, convenient installation and maintenance.

Specification:
Rated voltage: three phase 380V +10%
Frequency: 50Hz/60Hz
Output voltage range: 0V(60V)~380V
The output maximum current: 13A
Three phase deviations of output voltage: + 5%
Torque regulation ratio: 10:1

Features:
-Torque motor with adjustable 100 kg (including 100kg).
-The front panel is 16.5cm long, 11.5cm wide.
-Panel screw hole distance is 15*9.8cm.
-The rear installation size is 12.5cm long, 9cm high, 11.5cm deep.

Package List:
1 x Torque Motor Controller
