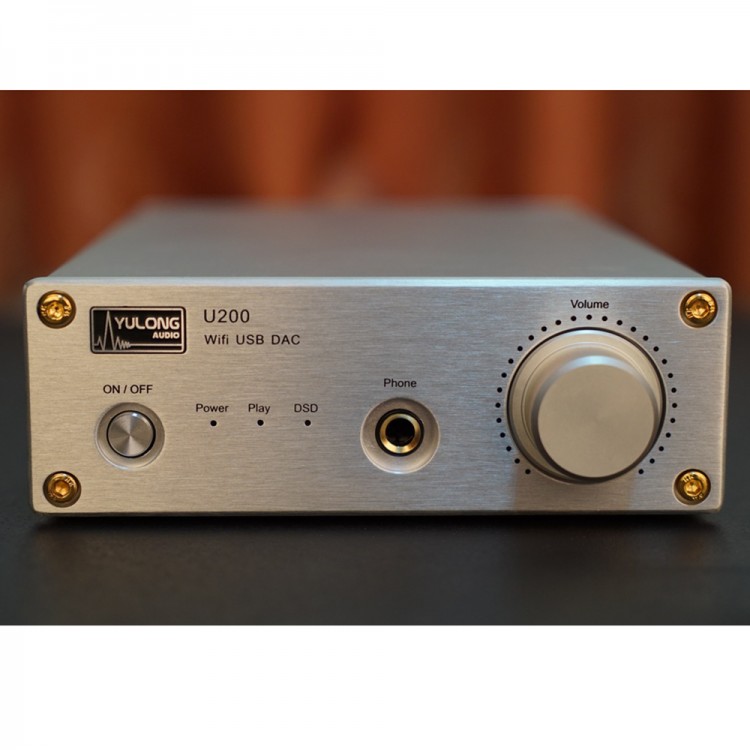

Yulong U200 USB WiFi DSD 32Bit 384KHz DAC Decoder + Headphone Amplifier-White

Yulong U200 USB WiFi DSD 32Bit 384KHz DAC Decoder + Headphone Amplifier-White

Description:
U200 is for the computer and mobile phone users to develop cost-effective USB decoder / headphone amplifier, built-in AC power supply design small size, easy to use while there is a large enough drive capability.

With the optional WiFi module, it also has WiFi network digital audio player features, easy to use, sound quality.

Through close cooperation with Saviaudio and lengthy development and debugging, U200 uses Saviaudio SA9227 for USB master plan. A high level of circuit design with low phase noise clock custom made reference sample, making the USB interface to achieve a very high quality.

Decoding section uses the latest Premium Audio Series AKM DAC AK4495 as top decoder chip. AK4495 is not the best test performance, but its design is focused around the actual sense of hearing - such as pins and internal oxygen-free copper material traces, a sense of priority to listen rather than indicators of filters, this and only Most programs emphasize different data indicators, AK4495 is a very musical taste decoder chip.

Upgrade from U100 U200 powered external DC power supply into the built-in AC linear power supply, through optimal allocation to the DAC and headphone amplifier circuit, providing plenty of energy output. Headphone amplifier section uses discrete components Class A amplifier circuit, and has separate analog inputs can be used as the amp alone.

Yu Lung Yun tuning team spent a lot of time, with a considerable number of peripheral equipment common market adjustment made repeated listening, give full play to emphasize the sense of hearing AK4495 features, making U200 become a full sound, strong drive to adapt wide, great musicality of DAC. It can be used with most common dynamic headphones.

Compact size makes U200 suitable for flexible use in different occasions. While ensuring portability, it can provide a large desktop machines and the same drive capability to provide customers with a better experience.

WiFi Play: Use the free download of APP, based on Android phone / tablet can play stored directly on the phone / tablet's music, you can also set the music player on the NAS media server and computer. Support up to 32Bit / 384KHz high quality PCM and DSD format
Technical Specifications:
USB input formats supported: PCM 16-32Bit, 44.1KHz, 48KHz, 88.2KHz, 96KHz, 176.4KHz, 192KHz, 352.8KHz, 384KHz and DSD64, DSD128.

USB input operating system support Mac OSX, Linux, as well as from Windows XP to Windows 32 8 or 64-bit systems.

Features:
- With the purchase of a separate Wi-Fi module enables webcasting capabilities.

Through Wi-Fi:
- Can play music files on your phone / tablet and upgrade to play high-quality audio for digital turntable.
- Can play music of NAS and online media server resources.
- Above all support up to 32bit / 384KHz media formats and DSD original code.
- USB decoding support up to 32bit / 384KHz of PCM and DSD formats.
- Ultra-low phase noise clock.
- AK4495 high-quality decoding.
- Class A headphone amplifier.
- Built-in AC power supply. In a small volume of the driving forces of large integrated desktop devices.
- Simple amp USB decoding, eliminating unnecessary digital interface, targeted, more cost-effective.
- Independent analog input, do use pure amp.

Parameters:
- SNR: 120dB
- Dynamic Range:> 115dB
- Distortion: 0.0016%
- Frequency Response: -0.2dB @ 20Hz and 20KHz
- Left and right channel crosstalk: -110dB
- Maximum line output level: 2V RMS
- Amp output power: 60mW @ 600Ω, 150mW @ 300Ω, 280mW @ 250Ω, 500mW @ 32Ω
- Power consumption: <15W
- Dimensions: 200 * 150 * 50mm
- Weight: 1.45Kg

Package included:
- 1 x Yulong U200 USB
