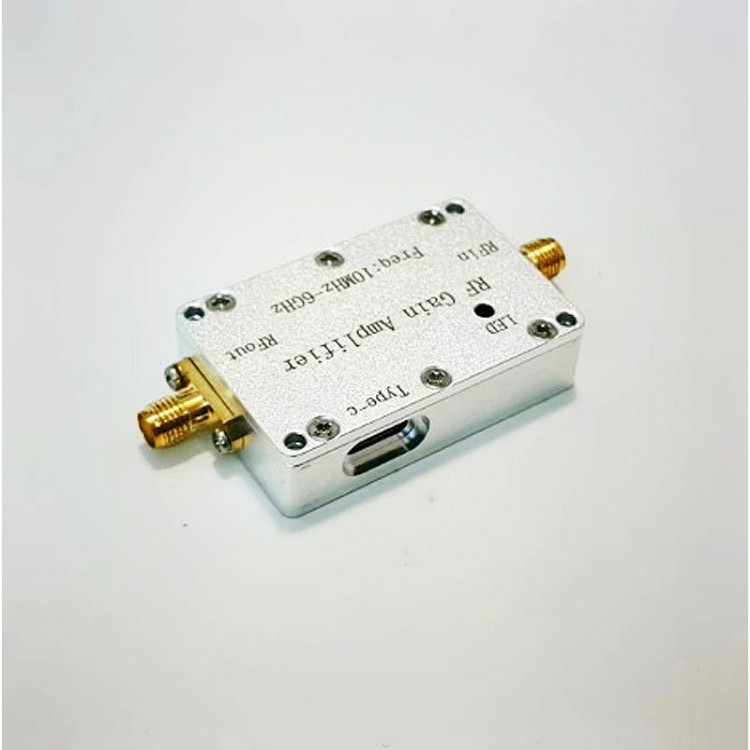

YZ-GB016010G 10MHz-6GHz Wideband 10dB High Flatness RF Gain Amplifier Type-C Interface and SMA Female Connector
Description:
- This amplifier module is used for signal gain promotion and small signal amplification in various wireless transmitters and receivers. The module covers a broadband frequency range of 10M-6GHz, typical application frequency points such as 433M, 1.2G, 1.5G, 2.4G, 5.8G, etc. It has a 10dB high flatness gain characteristic and is applied in transmitter signal gain promotion and receiver systems. The module adopts a Type-C interface +5V power supply with a power indicator light.
Specification:
- Model: YZ-GB016010G
- Working voltage: +5V single power supply
- Power interface: Type-C interface
- Working current: 50mA
- Working frequency: 10MHz - 6GHz

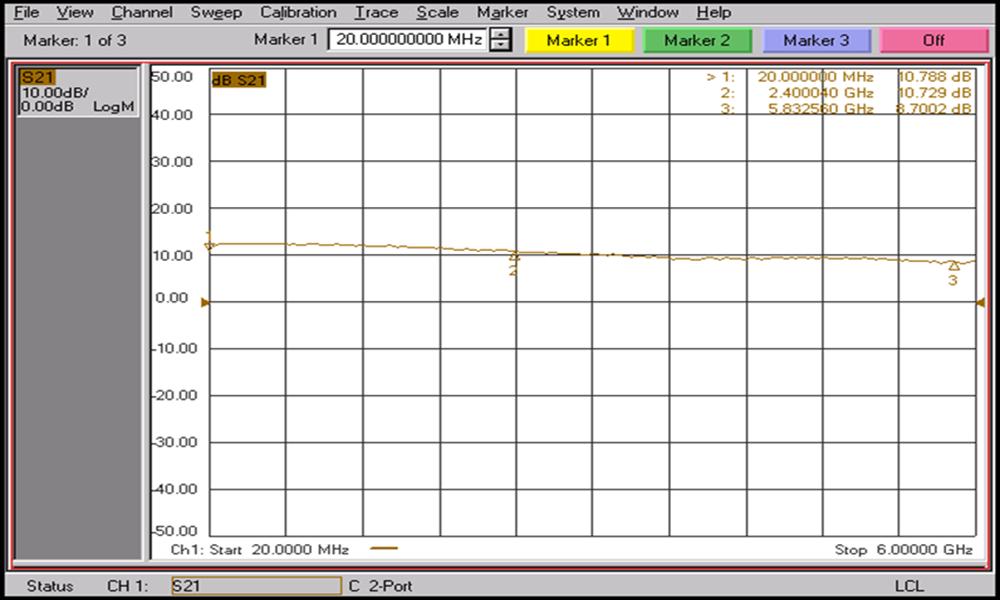

- Gain: 10dB typical value
- P1dB output power: +10dBm at 2GHz
- Noise ratio: 4.5dB
- Input and output connector: SMA female connector

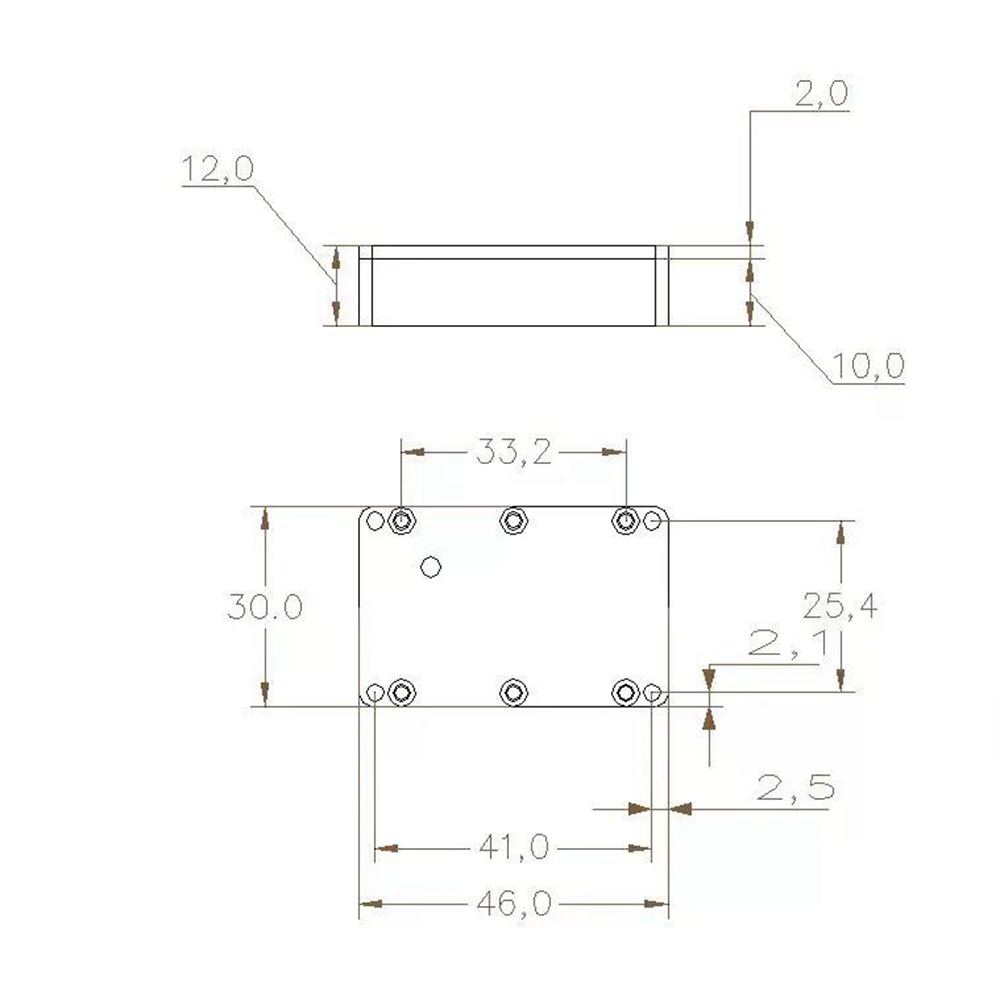

- Module size: 46 x 30 x 12mm (excluding the connector length)
- Module weight: 35g
Package Included:
- 1 x RF Gain Amplifier
- 1 x Type-C Cable
