YZXSTUDIO 2258XT-3V23-680G-PSLC (S Size) 680G SSD Flash Drive SSD Thumb Drive of High Performance

YZXSTUDIO 2258XT-3V23-680G-PSLC (S Size) 680G SSD Flash Drive SSD Thumb Drive of High Performance

Read before purchasing:
- The performance of an SSD flash drive is directly proportional to the heat generated. It cannot be returned on the grounds that the hard drive is hot.
- Once the flash drive is opened, it cannot be returned and can only be repaired.

2258XT-3V23-680G-PSLC (S Size):
- ASM1153E bridge chip
- High temperature and small volume
- Colors: red, black, blue and silver (delivered at random)

Features:

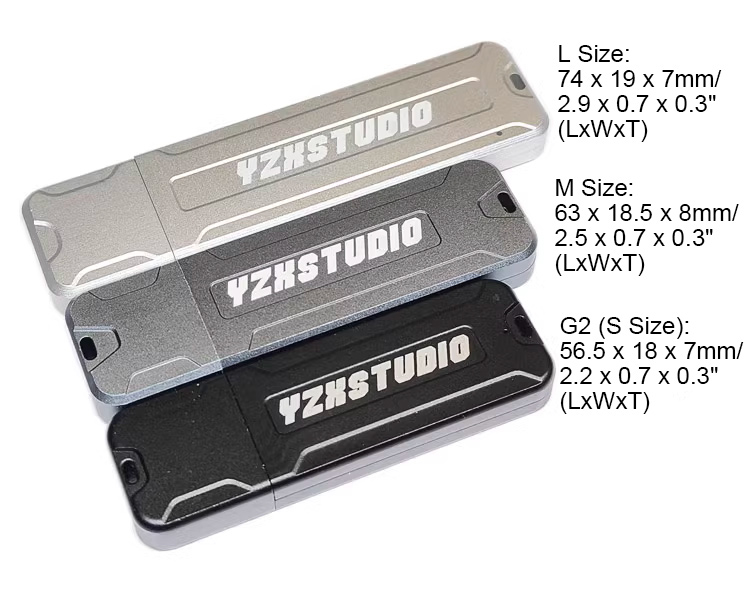

- G2 (S size): it is ultra-small and portable.
- With 680G large capacity, it supports WTG+ game + PE+ large file backup.
- pSLC simulates SLC working mode, over 100,000 PE. With long service life and high stability, it enables long-term cold data storage.
- Super LDPC error correction performance, TLC's error correction master is used to run SLC.

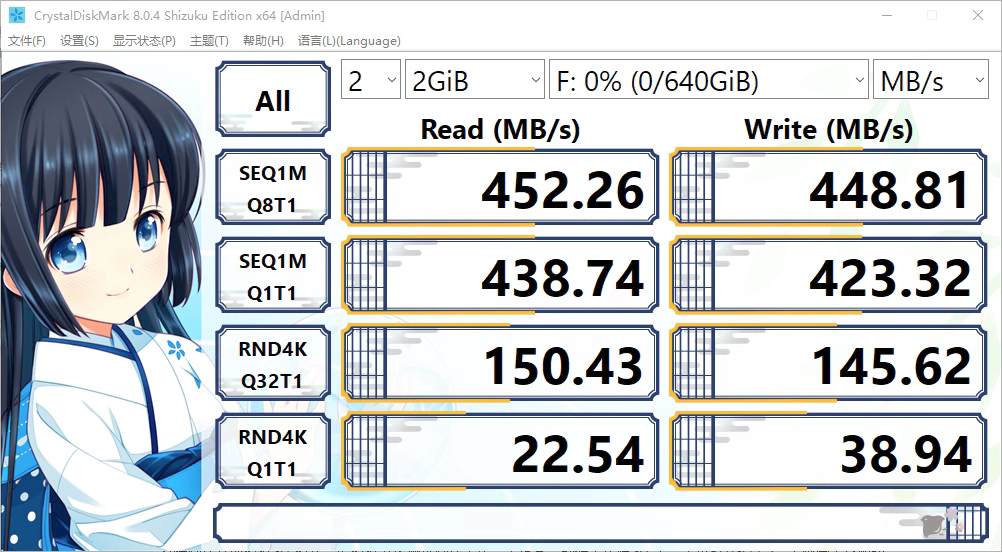

- 400M continuous writing speed and 430M continuous reading speed.
- 4K high performance, 40M writing speed and 20M reading speed.
- It can maintain its speed when the whole disk is continuously read and written. SLC direct writing is supported for the whole disk.
- No external cache or simulated cache. After safe ejecting, you can directly pull out the USB flash drive. Firmware and data are not lost.
- 2pcs 3V23 enterprise-level original particles for Kioxia are used.
- ASM1153E bridge chip, USB3.1G1, 5Gbps rate and strong compatibility.
- G2 version (S size) runs continuously at 80°C and its standby temperature is about 60°C. It has a temperature critical value of 80°C.
- With a CNC shell and a magnetic cover.
- Power consumption (reduced to about 1.5W from 4W) and heat generation of continuous writing are greatly reduced, and standby power consumption is about 1W. The U disk is a little hot and please pay attention to heat dissipation.
- Significantly extend the time of cold data storage (Data can be stored for 50-100 years at 40°C room temperature).

Package Included:
- 1 x SSD Flash Drive

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!



2258XT-3V23-680G-PSLC (S Size):

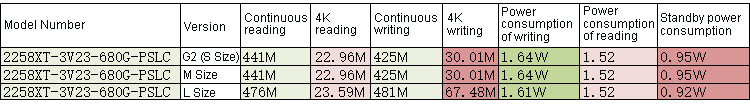

Performance Comparison:

Tips:
Even if you use a high-stability SLC flash drive to store important data, frequent backup, remote backup and backup of different storage media (flash memory, disk, online hard drive, optical disc, etc.) are recommended. It can ensure data security.

FAQ:
Q1: After receiving the flash drive, I found that the USB flash drive was full. Why are there write and read records? There are plugging marks. And what is the purpose of the files inside?
A1: To ensure quality, we have tested the product for writing and reading before delivery. The files in it are randomly generated files for validation. There are several firmware packages and instructions for use. Deleting test files does not affect the use of the product. You can also use the URWTEST verification software included in the firmware package to check if the data is correct.

Q2: Under Win10, this flash drive is inserted into a computer for the first time, or it has not been used for a long time, its writing speed is about 100M. Its 4K writing speed is less than 1M, but reading speed is fine.
A2: The UASP driver of Windows 10 is jammed, which only appears under all versions of Win10. You can safely eject the SSD flash drive and reinsert it to return to normal. If you can't solve the problem, you can try to turn off UASP. The U disk firmware package contains a batch to open/close UASP, and right click administrator to run it. Change the registry, or flash the USB flash disk access point with firmware that does not support UASP.

Q3: Under Windows 10, hard drive cannot be recognized frequently by the motherboard (the motherboard of the USB 3.0 era before the 8th generation, which is more common in laptops and HUB), writing and reading are disabled and SMART has C7 error.
A3: The Windows 10's UASP driver is jammed. The driver will try its best to force the USB port that does not support 5G or even 10G to work at a higher speed, resulting in extreme instability. Its solution is the same of UASP mentioned above.

Q4: Speed test is carried out as soon as it was formatted or a large file was deleted. Why the speed is slower?
A4: The SSD flash drive supports Trim and active GC. After deleting a file, it just marks for deletion and doesn't really erase. The file will be erased when it is free. If it is writing a file or  speed test is carried out immediately, writing while erasing will affect its speed. It is recommended to wait a few minutes before starting to write or speed test. If you need to use the U disk immediately, you can right-click the U disk partition - Properties - Tools - Optimize - Optimize Now, then the system will immediately execute the full disk Trim.
