YZXstudio ZY1276 USB Power Monitor QC 3.0 TypeC Power Delivery PD Tester FCP AFC

YZXstudio ZY1276 USB Power Monitor QC 3.0 TypeC Power Delivery PD Tester FCP AFC

Feature:
- USB Professional Charge detector
- Voltage: 3-24V
- Current: 0-5A
- Interface: USB input male x1 MicroUSB x1, Type-C x2
- MicroUSB can test Micro USB data cable
- Type-C in addition to test the data line,but also test the PD,data line resistance
- Button x1

Display content:

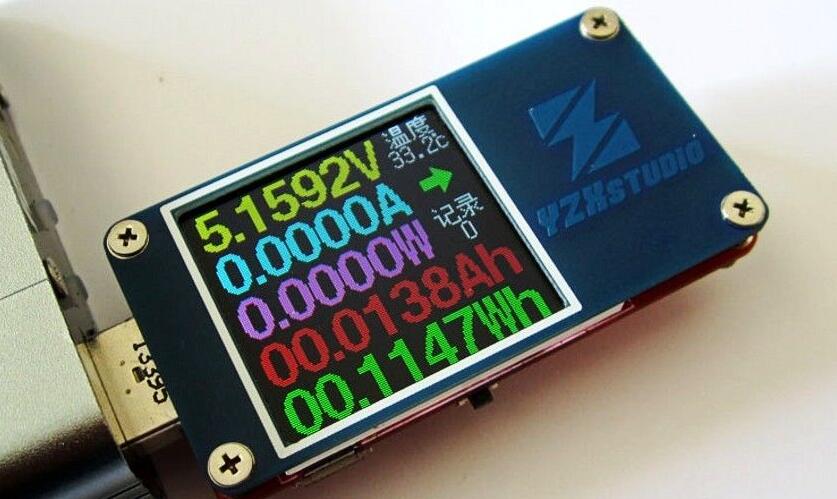

- First screen: current voltage,current,power,cumulative Ah capacity,Wh capacity,right side of the small board temperature,current direction arrow,capacity group.Long press to switch capacity group,long press to clear the current capacity group.
- Second screen:The current voltage,current,power,load equivalent resistance,recording time.

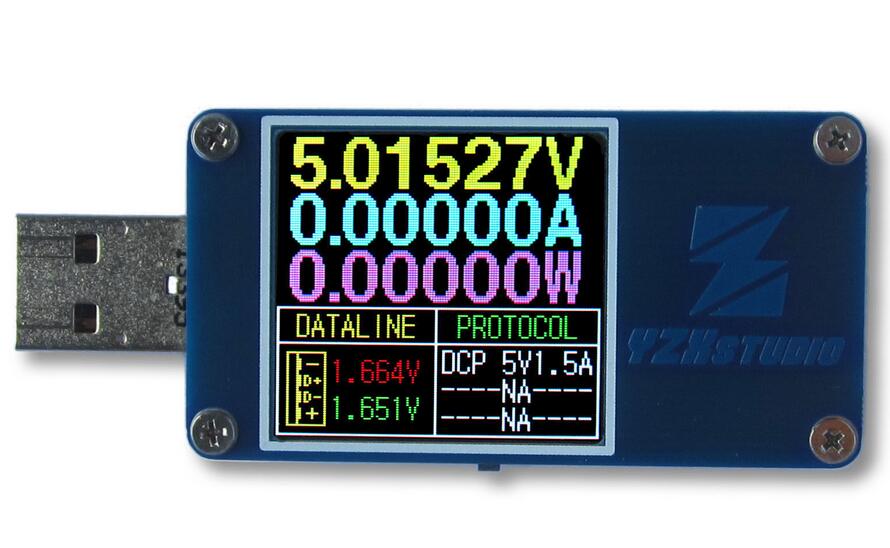

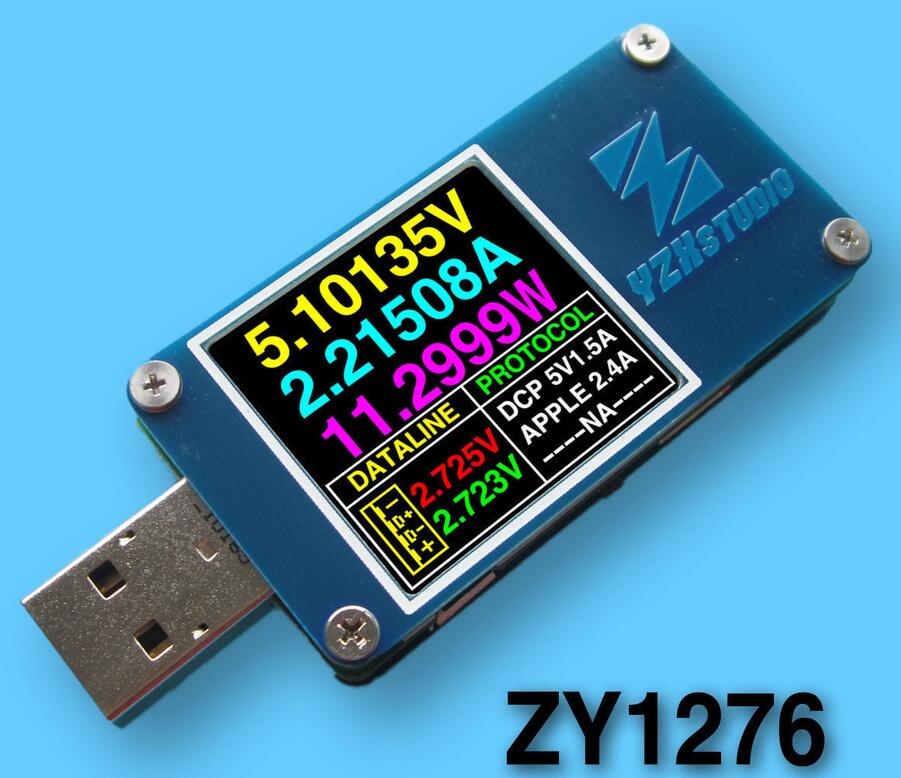

- Third screen:10 times -100 times the average voltage and current power,D + D-voltage,fast charge recognition mode.Long press to toggle the number of displayed digits and the average number.

- The fourth screen: Cable internal resistance measurement function,no-load long press to switch test mode,with a long press record record reference data.

- Fifth screen: voltage and current D + D curve drawing function,the new firmware automatic range,the fastest curve 100SPS,60FPS. With someone's propaganda is "oscilloscope","ripple table".Since only 100SPS is not enough to display high frequency ripples,only advertise the curve drawing function.Automatic range of the lowest 0.01V or 0.01A a grid.

- Sixth screen: only shows the current voltage,current,power,this interface long press to rotate the display direction.

System settings: press and hold the button and then plug in,short press to switch options,long press to enter and confirm.

Package Contents:
- 1 x YZXstudio ZY1276
