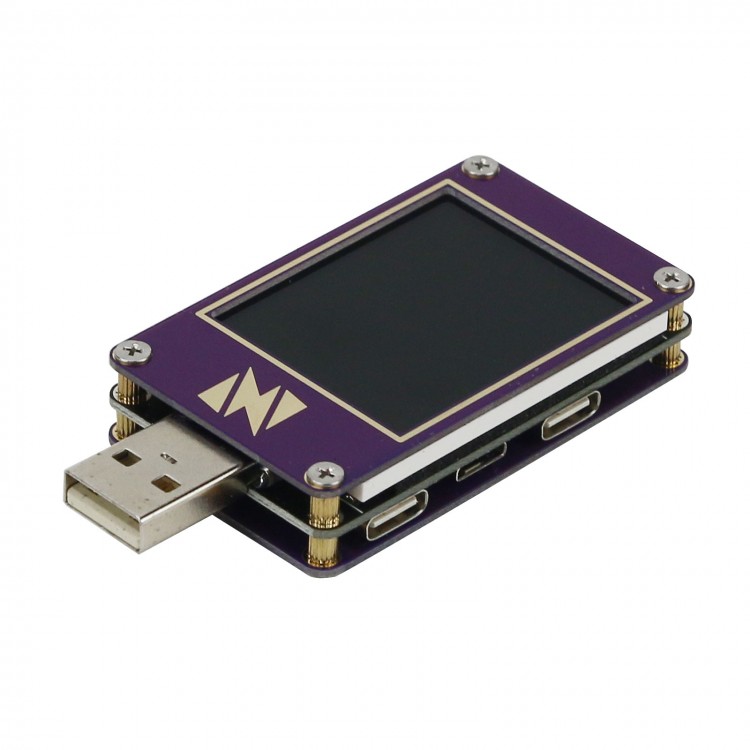

YZXSTUDIO ZY1280E Oscilloscope USB Power Meter Power Delivery Analyzer USB Tester Quick Charge Protocol

YZXSTUDIO ZY1280E Oscilloscope USB Power Meter Power Delivery Analyzer USB Tester Quick Charge Protocol

Description:
ZY1280E with new hardware is on sale. Compared with ZY1280M, it has the same function, optimizes self-consumption and reduces 4mA in each gear, optimizes the problem of D+D- short circuit and vbus crash.

Attention:
This type of tester has multiple input and output ports. All the ports except the online port are connected in parallel. Only one input and one output are allowed to be connected at the same time. Some models of testers support triggering high-voltage fast charging. After triggering high-voltage, there is high voltage in the input and output ports, please not connect to any equipment with insufficient withstand voltage. Please confirm that the display voltage is correct and then connect to your equipment. The resulting problems include but not limited to burning mobile phones, burning equipment, burning adapters, etc. Please take measures to avoid the above problems.

The USB tester is a tool, not a handicraft. The panel frame, especially the stainless steel panel, will have scratches and burrs. Please make sure that you don't mind before purchasing. Thank you!

Features:
- Support for USB 40Gbps
- For USB4, Thunderbolt 3-4 cable test
- PPS fast charge all-around test for Xiaomi and Black Shark. Voltage and current arbitrary stepless trigger
- Fully automatic protocol detection, the list shows the protocols supported by charger. Rapid detection, including MTK PE and PD, takes only 10 seconds to complete the measurement. The artifact of factory batch testing
- AC high-frequency oscilloscope with 2 trillion samplings per second directly measures the charger's high-frequency ripple and operating frequency
- Medium-speed voltage and current waveforms sampled 100 times per second Image
- For Huawei multi-function trigger voltage and current can be adjusted at will. 4.5V5A 5V8A 10V4A Constant voltage constant current CC CV all-around test
- For VOOC DASH SUPERVOOC1.0 2.0 all-around test. 5V4A, 10V5A, 10V6.5A analog mobile phone analog mobile power supply
- Bluetooth, USB connection to the upper computer of the computer. Use USB wired connection
- High-precision dual-mode four-wire Kelvin test resistance, step-down method test line resistance
- No power supply, automatic protocol detection, the list shows almost all fast charging supported by the charger
- Super simple USB port upgrade + DIY boot screen
- Display in 6-digit, high precision 0.01mV, 0.01mA, only 1.28 seconds integration time
- Very low dynamic interference, does not affect the accuracy of voltage and current
- The high-speed analog bar displays the maximum and minimum values, and the range can be switched with one key. The current fluctuation of the mobile phone repair test is clear at a glance. The red bar represents the peak value and the black line represents the minimum value
- Full protocol fast charge triggers deception detection
- For QC4, QC4+, PPS fast charge protocol trigger
- All female ports are built-in, the terminal has no protruding part, and it is not easy to be damaged
- PD2.0, PD3.0 fast charge protocol list + trigger
- For USB-C EMARK cable test function, display the speed and current supported by the cable
- For test Apple PD serial number
- Analog USB-C OTG to USB-A

Supported Quick Charge Protocols:
- USB-C 3.0A PD2.0 60W
- For APPLE 5V 2.4A
- For SAMSUNG 5V 2.0A
- BC1.2 DCP 5V 1.5A
- QC3.0 5V 9V 12V 20V
- For SAMSUNG-AFC 9V
- For HUAWEI-FCP 9V 2.0A
- For HUAWEI-SCP 4.5V 5A

Parameters:
- Model: ZY1280E
- Volume: 57*34*12mm (not including the size of male connector)
- Screen size: 1.8 inches
- Screen color: full color TFT
- Resolution: 160*128
- Transmission rate: USB 2.0
- Input port: A male C female M female
- Output port: A female C female
- Online method: Micro female
- Independent power supply: smart path
- Reverse connection protection: √TVS
- Surge protection: input + PD
- Minimum working voltage: 2.8V
- All terminals are built-in: √
- PD pass-through does not interfere: √
- PD active trigger: √
- For Xiaomi PD trigger:√
- Normal fast charge trigger:√
- For VOOC DASH trigger:√Original line
- For Super VOOC trigger: √Original line
- 40W SCP trigger: √
- SCP arbitrary voltage: full range 3-12V
- SCP arbitrary constant current: full range 0-8A
- For Samsung AFC trigger: full range 5-12V
- For VIVO Super Fast Charge: Only show support
- For MTK PE trigger: only display support
- Measuring line resistance: Kelvin bypass of voltage drop
- High frequency ripple frequency: √ 2Msps
- PD table end packet collection: √Global packet collection
- PD computer collection: √
- For Samsung Huawei monitor: √
- For VOOC DASH monitoring: √
- Fast charge to PD: √
- For Android to Apple: √
- For Automatic MFI test: √
- For Apple PD serial number: √
- For Emarker test: √
- For VOOC DASH through: ×
- Upgrade method: Micro USB
- The internal resistance is approximately: 26mΩ
- Factory precision: better than 0.01%
- Nominal accuracy: 0.1% annual change 0.1%
- Display digits: 5-6 digits adjustable
- Reading bounce: 5 digits 2d, 6 digits 5d
- 50% high power consumption 19mA
- Black screen power consumption: 12mA
- Computer host computer: √
- Capacity record continuous record:
- Capacity memory: For FRAM
- USB male brand: For American TE
- USB Mother Brand: Taiwanese brand
- Type-C brand: For KRCONN
- Button: 2pcs for Japanese ALPS
- Button logic: short press to cut function and cursor and parameters, long press to execute
- Male connector strength: 700g
- System stability: ☆☆☆
- Upgrade potential: ☆☆☆☆☆

Other Performance Parameters:
- Voltage range: 3.5-24V, ultimate withstand voltage 28V
- Voltage resolution: 0.0001V (18bit), some models can reach 0.00001V with 1.28 seconds integration
- Current range: continuous positive and negative 0-5A, with display current direction
- Current resolution: 0.0001A (18bit), some models can reach 0.00001A with 1.28 seconds integration
- Refresh rate: 0.36 seconds/time for normal interface, 10FPS for high-speed interface
- Capacity range: 0-99999Ah 0-99999Wh
- Capacity resolution: 0.0001Ah 0.0001Wh (0.1mAh 0.1mWh)
- Time range: 1000 hours, accurate to 1 second

Attention:
- Except for the USB male connector, all other interfaces are inside or under the PCB board, and no protruding terminals can be seen on the outside.
- Triggering MTK PE is triggered by current fluctuations. The protocol is very simple. However, because the USB tester does not have active heat dissipation measures, triggering can easily lead to severe heat damage or even burns to the user, and it can only display support.
- The pass-through representative can be charged from the original--USB tester---phone directly and correctly tested.

Package Included:
- 1 x Set of USB Tester Meter
