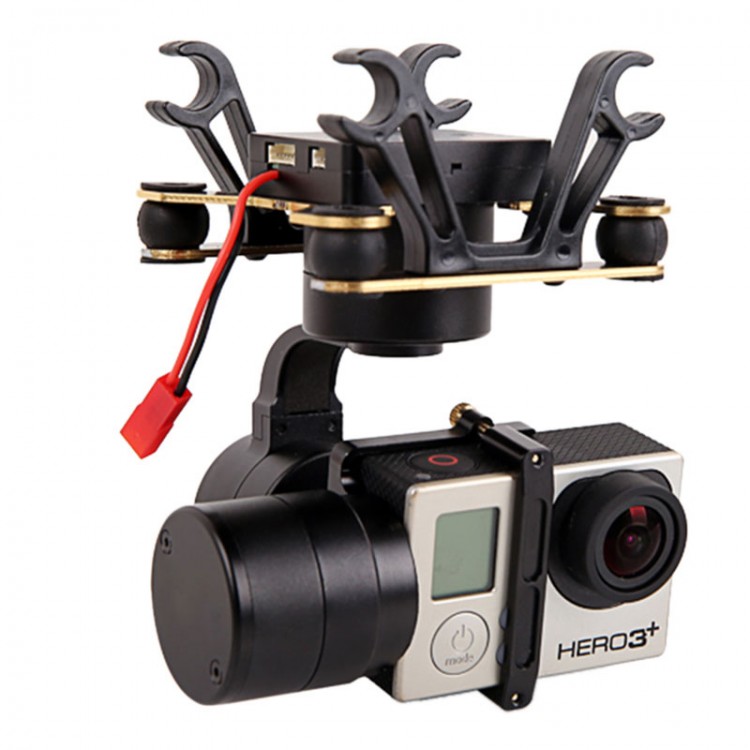

Z-Tiny2 3 Axis Brushless Gopro Gimbal Camera Mount for FPV Photography DJI Phantom Compatible
Description:
- ZDS the second generation honeycomb system, customized flying control chip
- Uplifting damper design, servo system
- Universal V shape holder
- Support remote control independent control
- Support firmware upgrade
- Professional FPV motor
Specifications:
- Input Power: 3S to 6S LiPo (10.5V - 26V)
- Operating Current: 110mA Static to 400mA Dynamic
- GoPro Charge Voltage: 4.65V
- GoPro Charge Current: 500MA

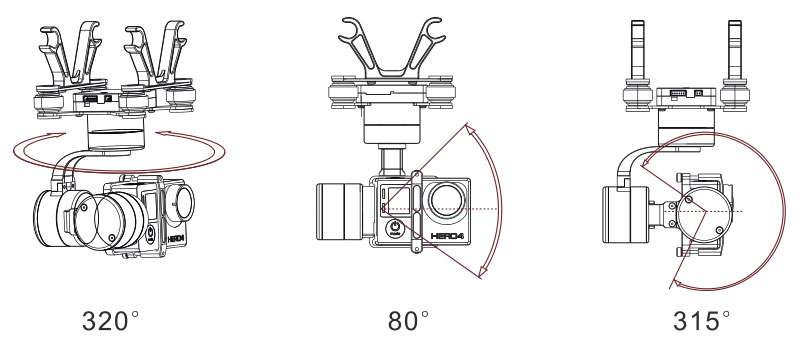

- Pitch Axis Mechanical Range: -130° to +185°
- Roll Axis Mechanical Range: -105° to +105°
- Yaw Axis Mechanical Range: -160° to +160°
- Pitch Control Range: -105° to +105°
- Roll Control Range: -25° to +25°
- Yaw Control Range: -140° to +140°
- Operating Temperature: -10℃ to 45℃
- Weight: 200g (no camera)
- Gimbal Dimensions (With Damping Unit):97mm X 95mm X 73mm
- Performance Accuracy
- Tilt/Roll: ±0.01° Yaw: ±0.05°
- Maximum Controlled Rotation Speed:Tilt axis: ±135°/s
- Controlled Rotation Range:Tilt axis control: - 130 ~ +45°
Package Includes:
- Z-Tiny2 3 Axis Gimbal
