Product Description:

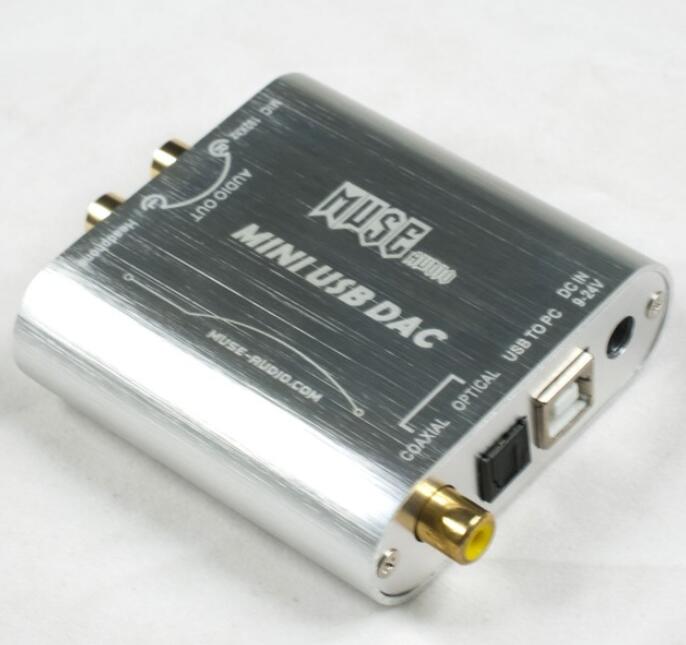

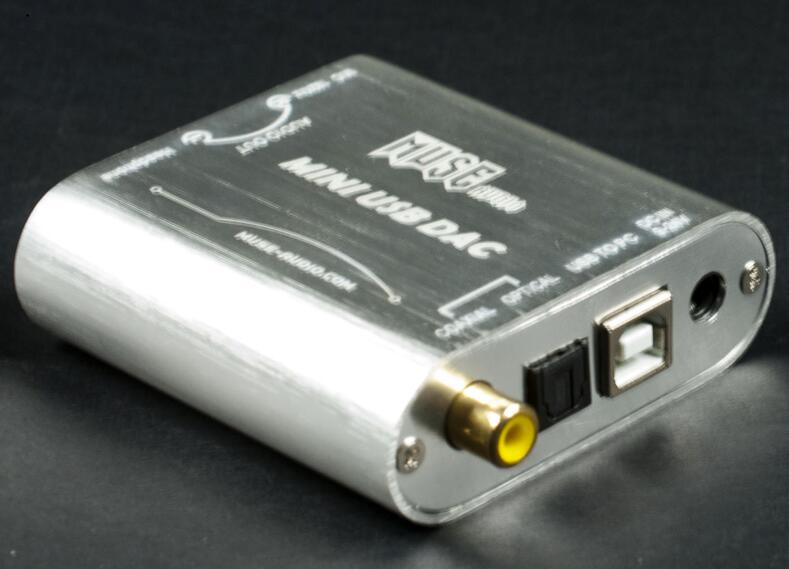

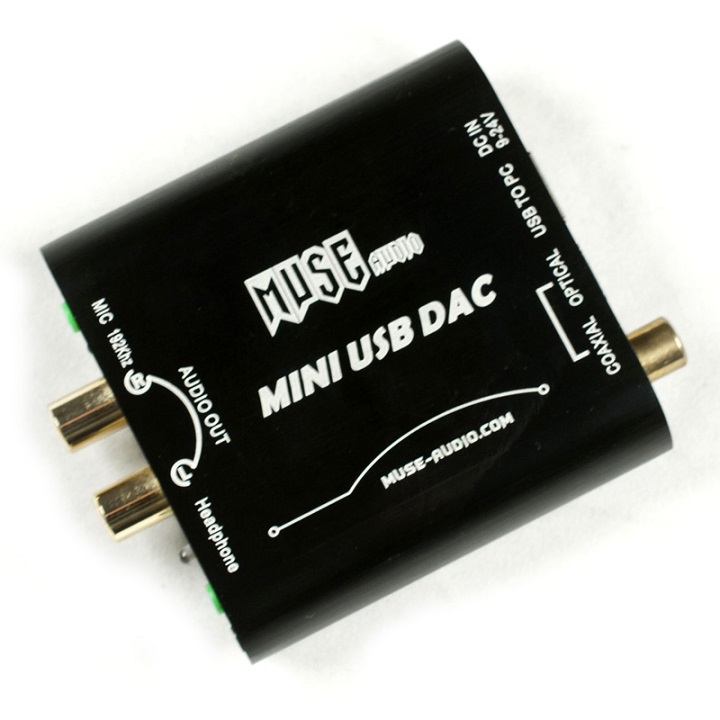

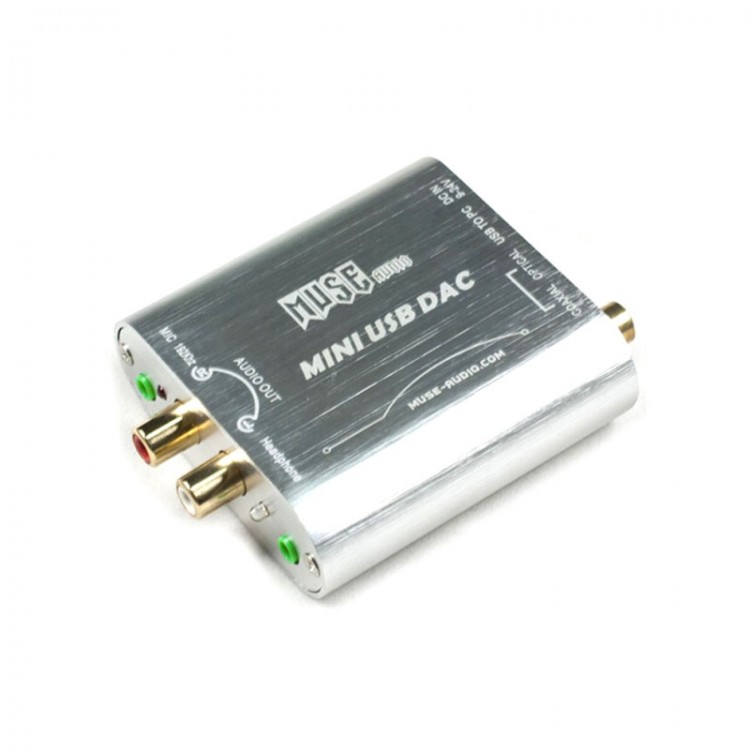

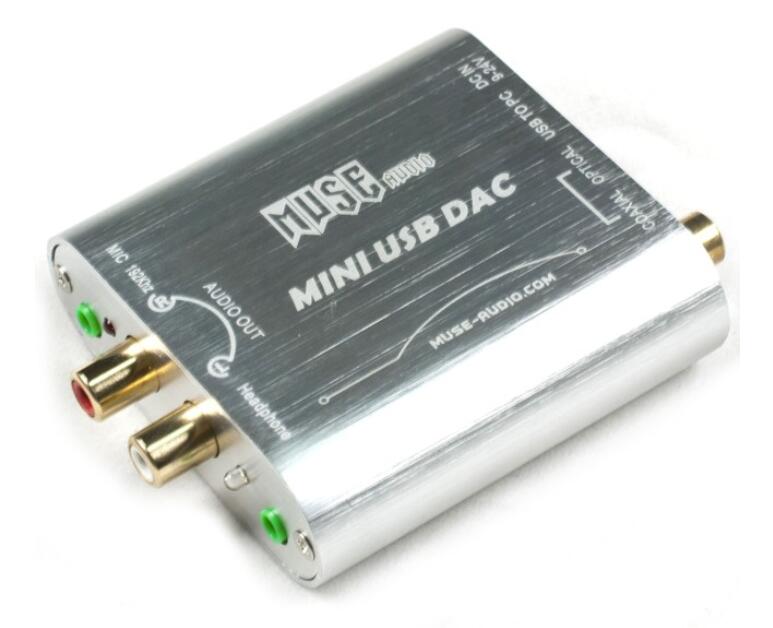

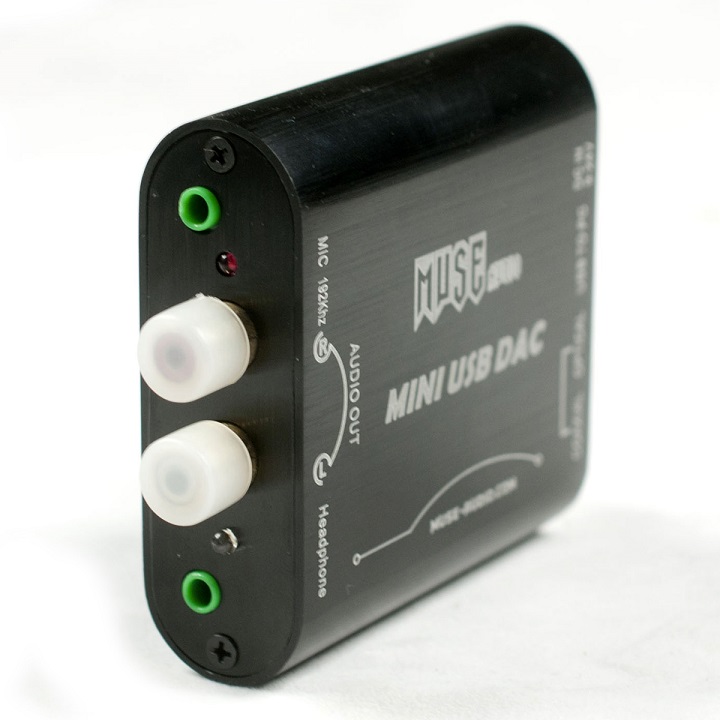

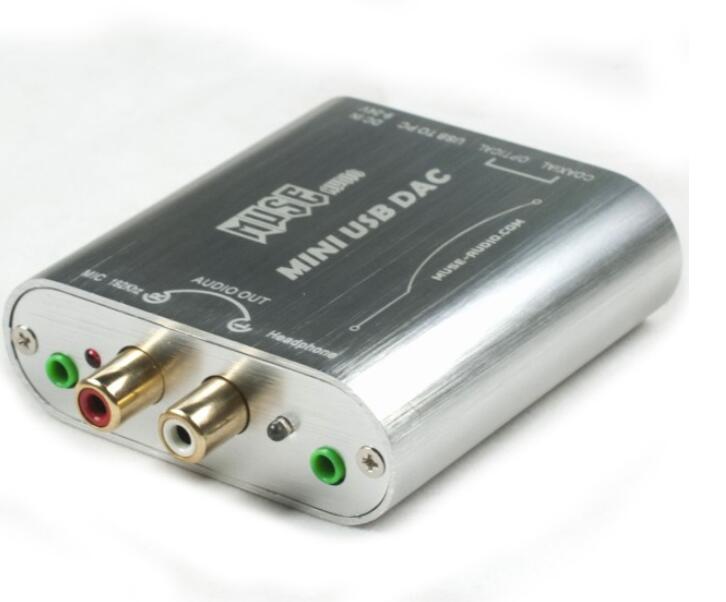

- This mini DAC unit is base on CS4344 DAC processor/CS8416 Digital receiver and CM108AH USB receiver,It can handle 24bit/192Khz audio via coaxial/optical inputs,It is in compact size,The dimension is only 66mm*60mm,Very suitable for desktop DAC unit for laptop or PC.It has optical/coaxial/USB 3 ways input, You could use it with all devices with digital audio output.
- Additionally it can be used a USB to coaxial converter when using USB input, The coaxial connector will output SPDIF signal when using USB port.
Features:
- ELNA/NICHICON/NIPPON-CHEMI and EVOX audiophile grade capacitors.
- LM317 high precision regulator from ON-semiconductor or TI
- 1.6mm thickness FR-4 fiber-glass PCB board.
- Sliver coated RCA/coaxial terminals.
- 10PPM high precision oscillator.
- When using USB input,The coaxial connector can output SFDIF signal for the other devices.
Specification:
- Based on CS4344 DAC chips and one CS8416 digital receiver from Cirrus/CM102AH as USB receiver
- Power supply: DC 6~24V(12~18V recommended)
- Input: Coaxial *1/USB *1/Optical *1, One 3.5mm microphone
- Output: one group of RCA & 3.5mm headphone out
- Frequency response: 20Hz- 20Khz
- SNR: RCA out--(-90DB)
- Support sampling rate: 32kHz,44.1kHz,48kHz,88.2kHz,96kHz,192KHZ
- Size: 77x64x25mm(LxWxH)
Package Included:
- 1 x MUSE Mini USB DAC
- 1 x USB Cable
- 1 x Power Adapter
