Product description:
- Z3J-DS50E3 color sensor fusion technology,semiconductor technology,optical modulation and demodulation technology,has the advantages of high sensitivity, fast response speed and anti disturbance of background light and electromagnetic harmonic interference ability,and has the advantages of compact structure,beautiful appearance,convenient debugging,accurate positioning etc.
- Infrared photoelectric switch operation fixed photoelectric switch,the photoelectric switch is to be detected,the detection distance sensitivity adjustment knob can adjust the photoelectric switch knob by high sensitivity,low detection distance,maximum detection distance can be increased from 0mm to the model.

Z3J-Infrared series: Containing a small amplifier that can absorb 100mA bright or dark current,output control convenience.Metal interference ability

Operation Steps: Infrared photoelectric switches,photoelectric switch is on the object to be detected,adjust the sensitivity knob to adjust the detection distance photoelectric switches,sensing distance can be increased to the maximum detection distance of the model from 0mm.

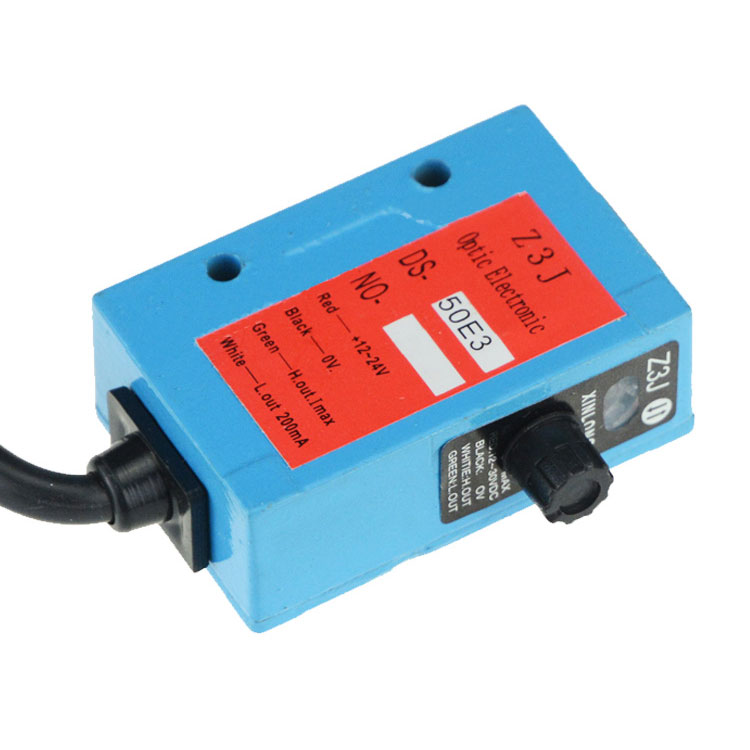

Connection: Red + black 0V green OUT output 1 white OUT output 2

Specification:
- Model: Z3J-DS50E3
- Supply voltage: 10-30VDC
- Use ambient temperature: -15 C~55 C
- Detection method: diffuse reflection
- Detection distance: 50cm, 3M
- Light source chromatography
- Reaction speed: 2mS
- Carrying current: <100mA
- Output mode: NPN
- Case material: Metal
- Lead:2m

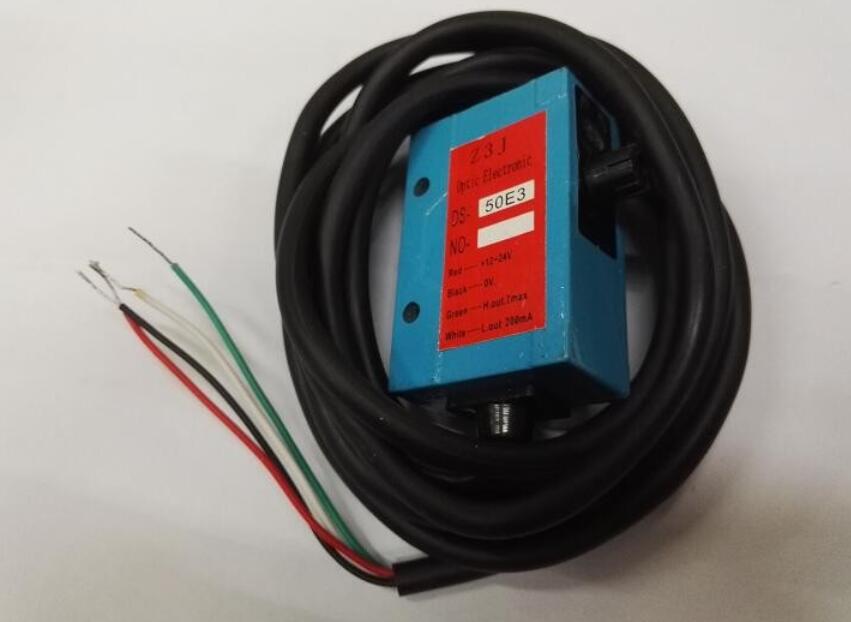

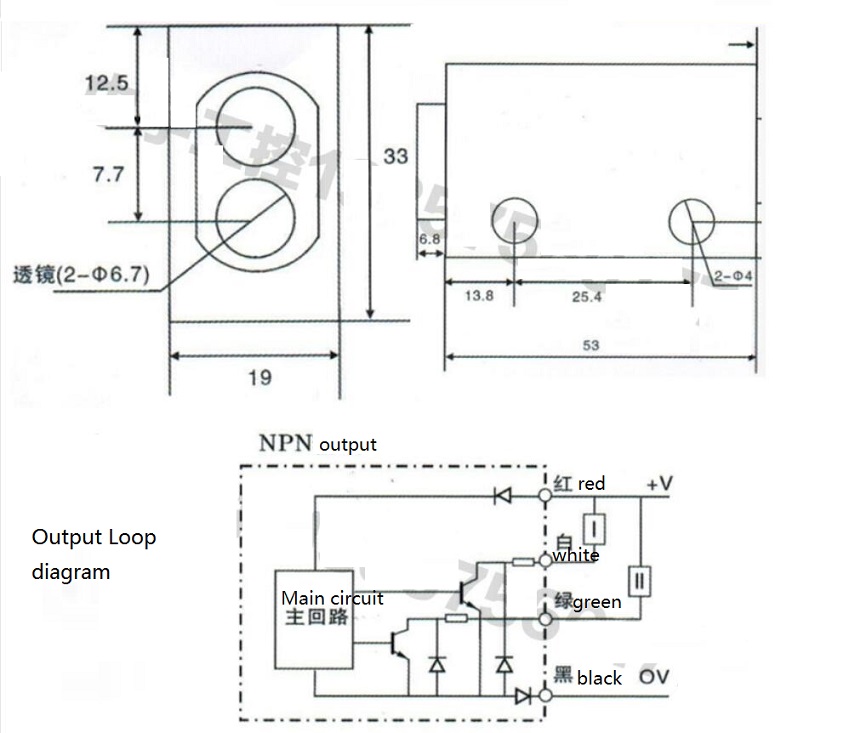

Connecting Method:
Red---Positive
Black---Negative
Green---Output (Bright moving)
White---Output (Dark moving )

Attentions:
1.Be sure to check before energizing the power supply fits DC12-24V ± 10%,it does not exceed 30V,otherwise it may damage the photoelectric switch
2.Adjust the sensitivity,use a small screwdriver and should not be excessive force,otherwise it may damage the potent knob affect photoelectric switch
3.The installation should prevent direct glare into the optical lens or take appropriate measures blackout.
4.The working environment temperature,humidity,vibration,shock and other corrosive gases,are likely to affect the work of the photoelectric switch
5.Usually pay attention to protect the optical lens clean,try to avoid facing up when you install the lens erected to reduce dust.

Package List:

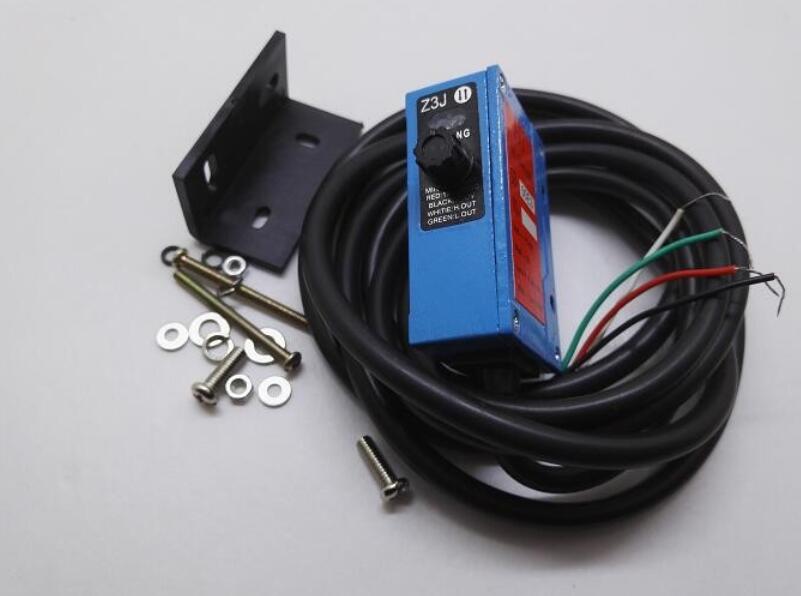

- 1 x Z3J-DS50E3 Photoelectric Switch Bag
- 1 x User manual
