Z4 PCM DSD Hifi Player Car Digital Player Hifi DSD Player USB DAC Decoder Bluetooth Dual ES9038Q2M

Z4 PCM DSD Hifi Player Car Digital Player Hifi DSD Player USB DAC Decoder Bluetooth Dual ES9038Q2M

Features:
1. Brand new CNC appearance
* Each Z4 comes from a hollowed out aluminum ingot. The volume is 57*98*20mm. The battery is 4200mAh. It works for 8 hours or more

2. Adhere to the independent dual crystal oscillator + CPLD I2S solution
* One 45.1584M crystal oscillator corresponds to the 44.1K sampling rate music format
* One 49.1520M crystal oscillator corresponds to the 48K sampling rate music format
* If the clock is not correct, the concert will shift, although not everyone can hear it, but this is a basic HIFI requirement

3. Complete audio output interface
* 3.5mm single-ended LO
* 3.5mm single-ended PO
* 2.5mm balanced PO
* 4.4mm balanced PO

4. Support 10T TF card, compatible with most music formats and file systems on the market
* Support playing APE, FLAC, WAV, MP3, OGG, M4A, WMA, AIFF, ALAC, AAC, DSF, DFF, lossless/lossy formats such as ISO, CUE, and even multi-channel DTS cover most of the music formats on the market
* Analyze CUE and ISO in seconds
* PCM up to 384k 32bit
* DSD hard decoding up to DSD256
* Support common file systems of TF card such as NTFS, EXFAT, FAT32, support multiple partitions, no need to format

5. Flagship Bluetooth function. Using the latest QCC5125 Bluetooth 5.1 module
* At the same time, it supports for APTX-HD or LDAC protocol, which adds lower latency protocol for aptx-ll compared to CSR8675. Bluetooth LDAC mode supports up to 96K 24bit

6. Mainstream DSD Native USB DAC function. For Amanero digital interface USB DAC solution
* The USB DAC solution is ATSAM3UxC, and Zishan rewrote the CPLD code to adapt to Z4.
* The driver is compatible with digital interface for Amanero. For Linux, MAC, mobile phones do not need to be driven. Download driver for Windows: link for https://amanero.com/drivers/setupuac2.exe
* Computer music software for foobar2000, QQ, etc. can choose DSD: for WASAPI (push): speaker (for Combo384Amanero) fixed 32-bit output as a USB decoder, you can easily support PCM 384K, DSD256.
* The USB DAC port of Z4 is an independent pure data port and does not take power, which means that when Z4 is connected to a mobile phone as a USB DAC, it will not consume mobile phone power.

7. The op amp provides a total of 18V power supply of 9V.
* Zishan balances the advantages and disadvantages of power consumption and performance, using a 9V power supply, with 19pcs MLCCs, a total of 1900uF filters, to meet the sudden change of current in large dynamic music.

8. Dual ES9038Q2M DAC chip and TI OPA1622 headphone amplifier
* Z4 contains two ES9038Q2M chips. Various filtering functions of ES9038Q2M are opened.
* Contains two OPA1622 amp chips, DAC+LPF+ amp design, which can exert their respective performance without causing additional interference.

9. Coaxial output supports DoP (need to cooperate with the Z4 expansion board introduced later)
* The DSD signal is transmitted via coaxial cable, but at the same time, a decoder is required to support DoP. If the decoder DAC in your hand is ES9038 or a mojo that supports DoP, it can be achieved when you use the coaxial connection Z4 to play DSD music Real DSD transmission and playing.
* Z4 coaxial output supports up to PCM384K DoP128.

Manual and Firmware:
* Link: https://pan.baidu.com/s/1l2eHKDvs3eVuZFjh440OnQ
* Password: z4z4

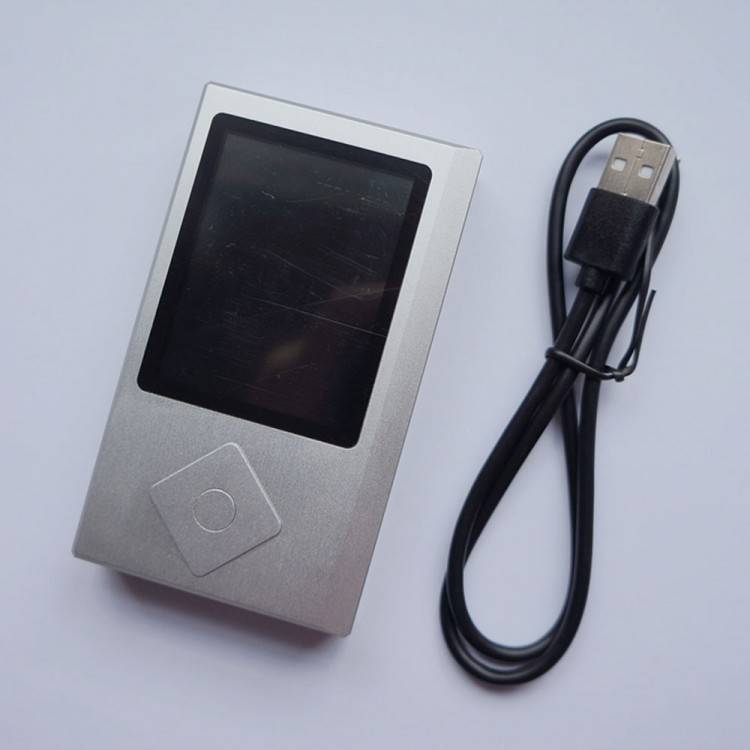

Package Included:
* 1 x Set of Z4 Player
