ZC706 + ADRV9009 SDR Development Board Software Defined Radio Supports High Speed High Bandwidth
Description:

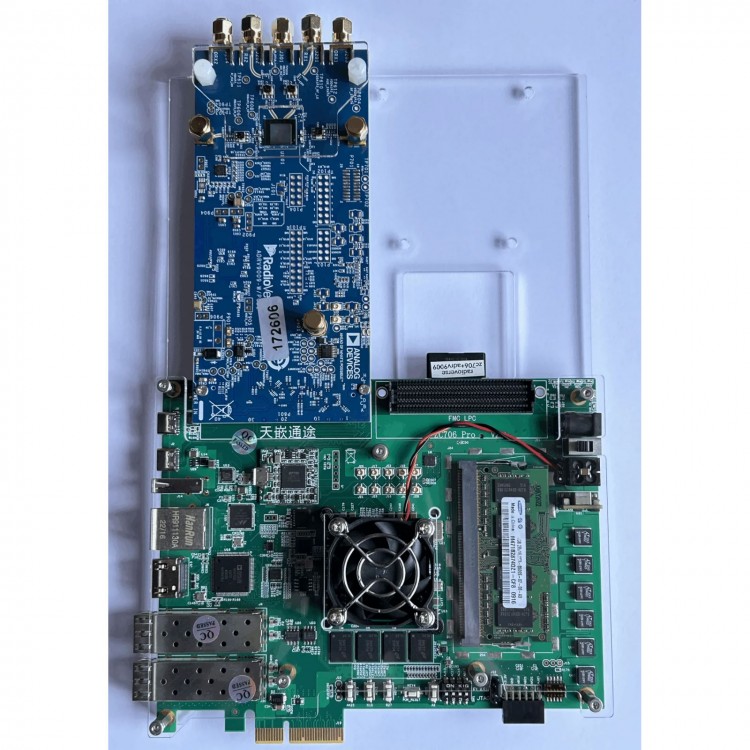

The fully compatible ZC706 and the fully compatible ADRV9009 RF daughter board are combined to form this product.
Acrylic plexiglass plate is used to protect the item, making it strong and reliable. It is a stand-alone product.
Gross weight: 1.35kg/3lb.
ZC706:
This is a fully compatible enhanced version of ZC706 board. It supports all ZC706 features and is compatible with direct bin file. It's a very classic Zynq platform, as well as software-defined radio baseband plate. It supports for FMCOMMS2, 3, 5, ADRv9371, ADRv9009 and other RF daughter boards.
The board can be connected to RF daughter board ADRV9009. Since the board is fully compatible, you can use the official code (for ADI) for experimental development. We will provide some information and technical support.
About Compatibility:
1. Fully compatible with all interfaces of official ZC706 board. PCIE, HDMI, USB, UART, optical port, two-way FMC and button lights are the same as those of the official version. And even the pins on ZYNQ main chip are exactly the same as those of the official ZC706.
2. PS_DDR3, PL_DDR3, FLASH, SD card and Gigabit Ethernet port PHY chips are all using the same chip as the official one, and even the pins on the ZYNQ main chip are exactly the same as those of the official ZC706.
3. LEDs, buttons and DIP switches are all corresponding to the official board, and even the pins on the ZYNQ main chip are exactly the same as those of the official ZC706.
4. No matter what board is connected, all files that can run on official ZC706 do not need to be recompiled to run correctly on this board directly.
ADRV9009:
It is fully compatible with official ADRV9009. Using the original factory documents and original domestic OEM production technology, its performance and parameters are completely consistent with the performance and parameters of the official original factory. More information: link for https://www.analog.com/cn/products/ADRV9009.html#product-overview
Package Included:
- 1 x Set of ZC706 + ADRV9009
