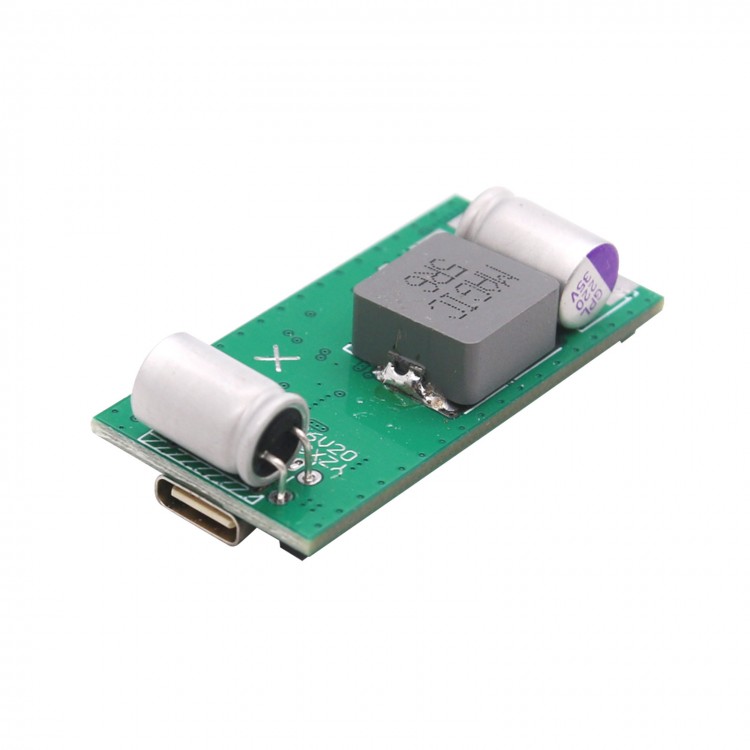

ZC826 Power Bank Circuit Board Didirectional PD 60W Full Protocol Circuit Board T1000

ZC826 Power Bank Circuit Board Didirectional PD 60W Full Protocol Circuit Board T1000

Description:
ZC826 is the upgraded version of ZC60PD, featuring excellent performance and compact size.

The power bank circuit board is for DIY. It is not a finished power bank.

It is designed with TC port instead of USB port.

Note: To avoid short-circuit and burning, please connect it to Lithium battery protection board during testing and using (battery is not included).

Features:
- Ultra Small: Size 45 x 21 x 13mm (L*W*H). It is easy to pack into various power banks for DIY uses.
- Two-way 60W Power: It is fast to charge. It is two-way step-up and step-down voltage. With 12V input, it can output 20V 60W. With 5V input, it can charge 4-string lithium batteries (batteries are not included).
- Military Grade PCB: Thick copper PCB board features super heat conduction, full power without additional heat dissipation part, synchronous rectification buck-boost control + 4pcs imported MOS.
- DIY bi-directional PD power bank for tablet PC. Please connect the positive and negative poles of 4-string lithium batteries (batteries are not included), which enables self-protection.
- IP2716 full protocol 60W fast charge output. Its output port not only supports laptops but also compatible with almost all mobile phone fast charging protocols.
- Single TC port, bidirectional PD, input constant current around 2.5A. As for PD20V3A, it is recommended to charge with PD adapter above 60W.
- Output constant current is about 4A, maximum output is 60W, full protocol (except VOOCDASH) support. It fits for SWITCH, Apple 8 8P X, and Apple!
- The default battery voltage is 4-string, and the full voltage is 16.8V. It automatically stops when it is fully charged (batteries are not included).
- One Indicator: Red light means fast charge output or reverse charge is full. Blue light means it is in reverse charging mode.
- It is designed without undervoltage protection, so batteries with protection board are needed (batteries are not included). Please note that.
- Multiple panel battery terminals can be directly connected in parallel, supporting multiple modules to simultaneously charge and discharge at the same time, or one charge and one UPS mode.
- Installation holes M2. The holes is connected to the positive and negative terminals of the batteries (batteries are not included)

Package Included:
- 1 x ZC826 Power Bank Circuit Board
