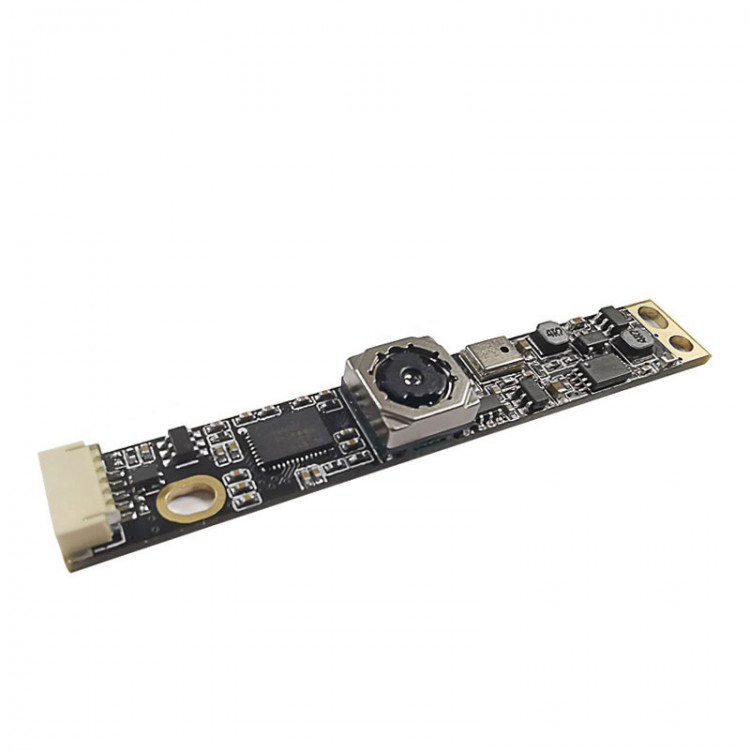

ZH5693 5MP Laptop Camera Module HD USB Camera Module Automatic Focus Driver-Free WN-L2103.K2081
Description:
This camera is 5MP 1080P automatic focus. When the camera is turned on, the default resolution is 640*480. HD USB-2.0 drive-free camera module features pixel size 2592*1944 and the frame rate can reach 30 frames.
It can be used for all-in-one computer self-service equipment, video doorbell, etc., to meet high-demand customers! The camera imaging distance is 5cm/2" beyond.
Features:
- 5MP high-end industrial-grade hardware
- 65° horizontal viewing angle autofocus HD camera
- Suitable for large-scale network video conferences
- Plug and play, no need to install drivers. Compatible with multiple systems
Industrial Application Examples:
- Financial equipment
- Face recognition equipment
- Security smart device
- Multimedia/teaching equipment
- Scan QR code/ID card
- Self-service terminal equipment
- Express delivery cabinet/smart device
- Guest terminal equipment
Parameters:
- Pixel hardware: 5MP
- Resolution/frame rate: the default maximum is 2592*1944 (15 frames), 1920*1080 (30 frames)
- Viewing angle: 65 degree horizontal viewing angle
- Lens: imported lens, high frame focus motor, original A glass lens + 650 filter
- Focus: automatic focus
- Night vision: not supported
- Driver: plug and play, driver-free. Compatible with various system UVC drivers
- Signal to noise ratio: <50dB
- Compression format: default MJPG, (YUV)
- USB cable length: standard 1m/3.3ft. If you need longer USB cable, please contact customer service
- Working current: <90MA

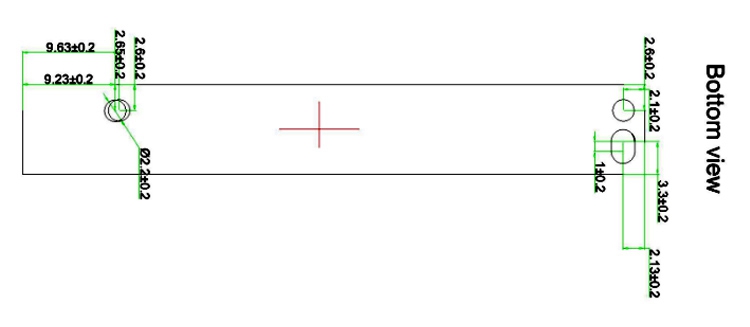

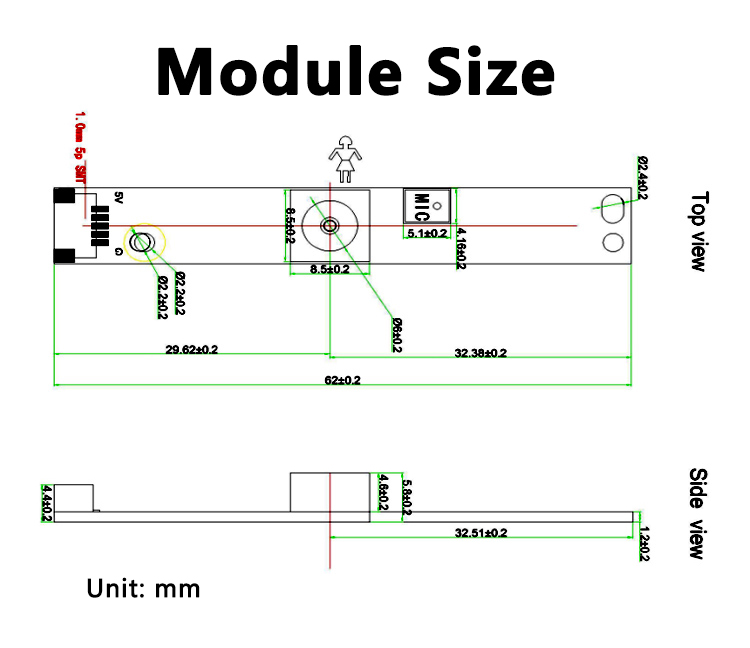

- Appearance size: 62 x 9 x 6mm/2.4 x 0.4 x 0.2"
- Material: imported electronic materials, industrial chips
- Operating System: Support various operating systems, such as for Windows, Android, Linux
- Applicable environment: no water mist environment
- Working temperature: -20℃ to 50℃
- Working humidity: 15%-85%
- Video Proc Amp: White balance/gain automatic adjustment or manual adjustment, automatic exposure adjustment
- Scope of application: unlimited
- Camera control: support adjustable focus
- Interface: USB 2.0 interface
- Shooting range: beyond 8cm/3.1"
Photosensitive device: chip for OV5693-CMOS-1/4 inch
Package Included:
- 1 x Set of Camera Module
